DOORS

ES-SD450

TYPE
Sliding
BRAND
ESW ®

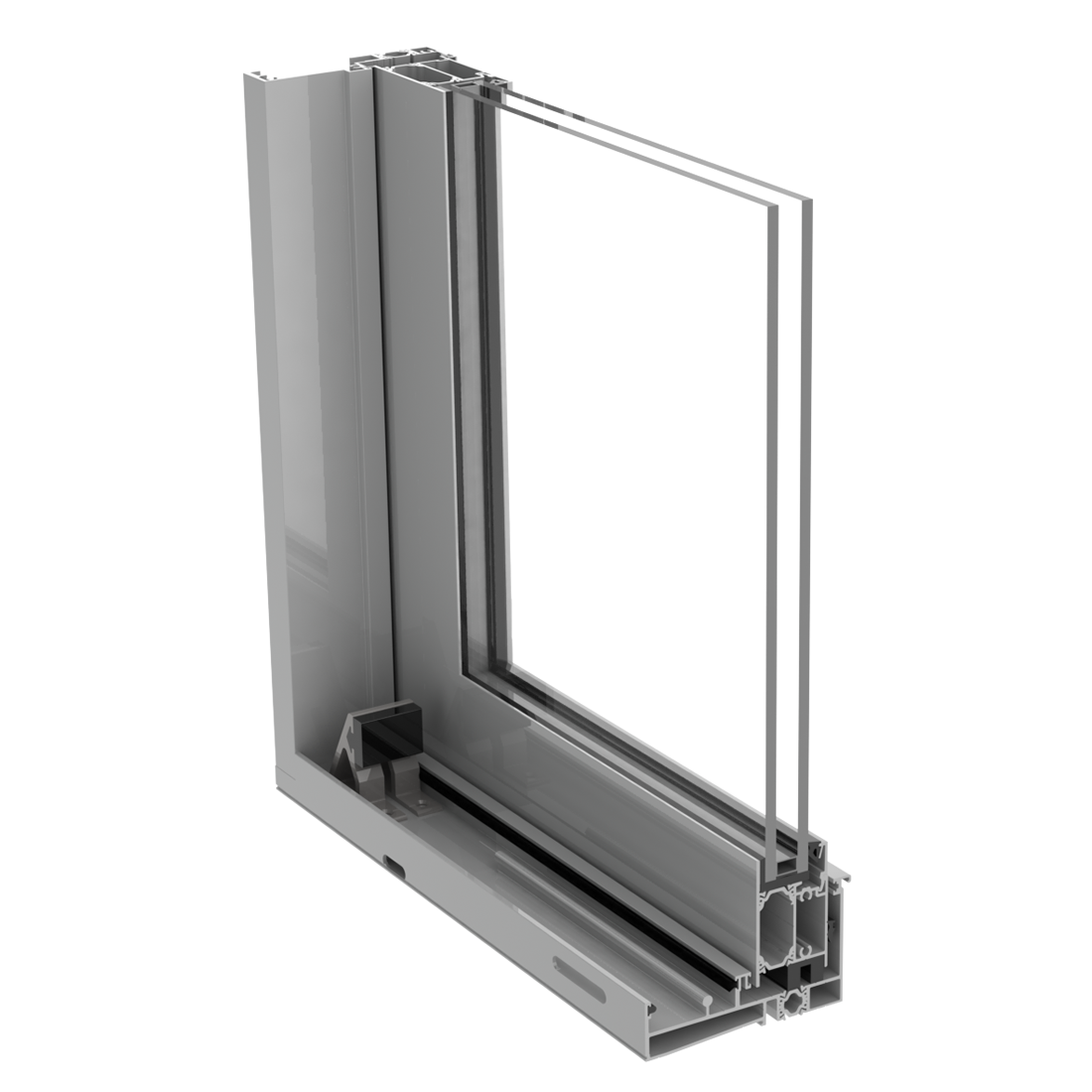

The ES-SD450 is a 4 1/2” thermally broken sliding glass door. This product has an excellent performance that makes it attractive for a wide range of commercial and residential applications.

Designed for the USA market

FEATURES
Hurricane Resistant Hurricane Resistant Thermally Broken Thermally Broken

System Description

Frame depth: 4 1/2”. Designed for 1” insulating glass. Configurations: XO, OX, XX, OXO, OXXO. Maximum size: 122” x 94 1/2” OX. Design load: +50/-50 psf. Water infiltration: 6.24 psf. AAMA class: AW-50. U-value: 0.39.

Features

Fully weather-stripped. Anodized, painted or wood grain finishes available. Screens available in aluminum frame and fiberglass mesh. Silicone gaskets for improved durability. Adjustable tandem polyamide ball bearing rollers. Two point lock with ergonomic handle. Exterior key locking option.
