DOORS

DM-12

TYPE
Sliding
BRAND
ESW ®

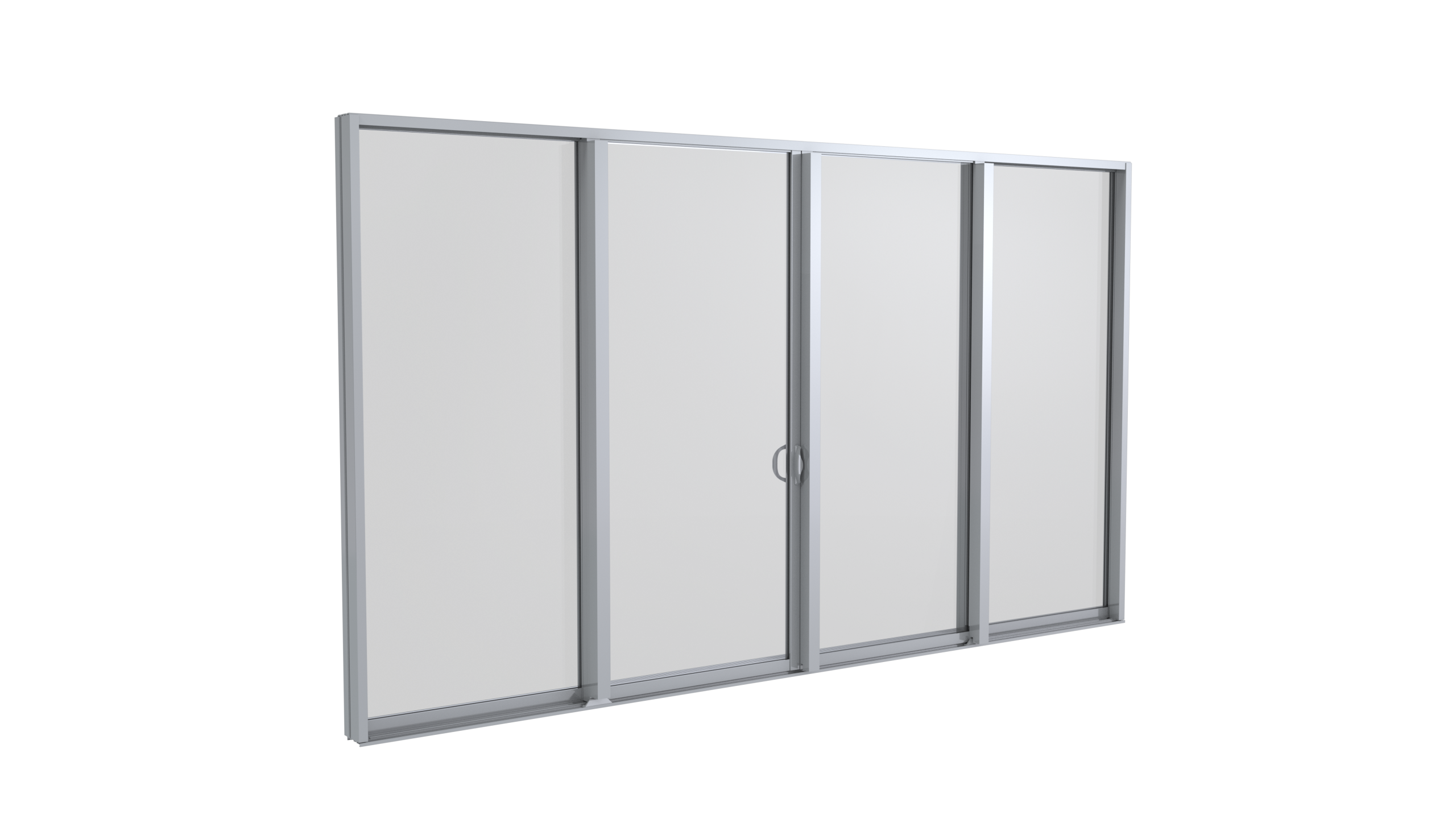

The DM-12 is a 5 1/2” deep impact rated, heavy duty sliding glass door. This product meets the most stringent specifications and high safety standards. The DM-12 is ideal for exterior areas.

Designed for the USA market

System Description

Frame depth: 5 1/2”. Sill height: 3 3/8”. Configurations: OX, XO, OXO, OXXO. Designed for 9/16” laminated glass. Maximum size: 192” x 144” OXXO. Large and small missile impact. Design load: +125/-165 psf. Water infiltration: 18.75 psf. U-values: 0.81

Features

Heavy duty, adjustable tandem polyamide ball bearing rollers. Fully weather-stripped. Anodized, painted or wood grain finishes available. Screens available in aluminum frame and fiberglass mesh. Silicone gaskets for improved durability. Free standing jamb optional. Two point lock with ergonomic handle. Exterior key locking option.
