STOREFRONTS

ES-9500

TYPE
All
BRAND
ESW ®

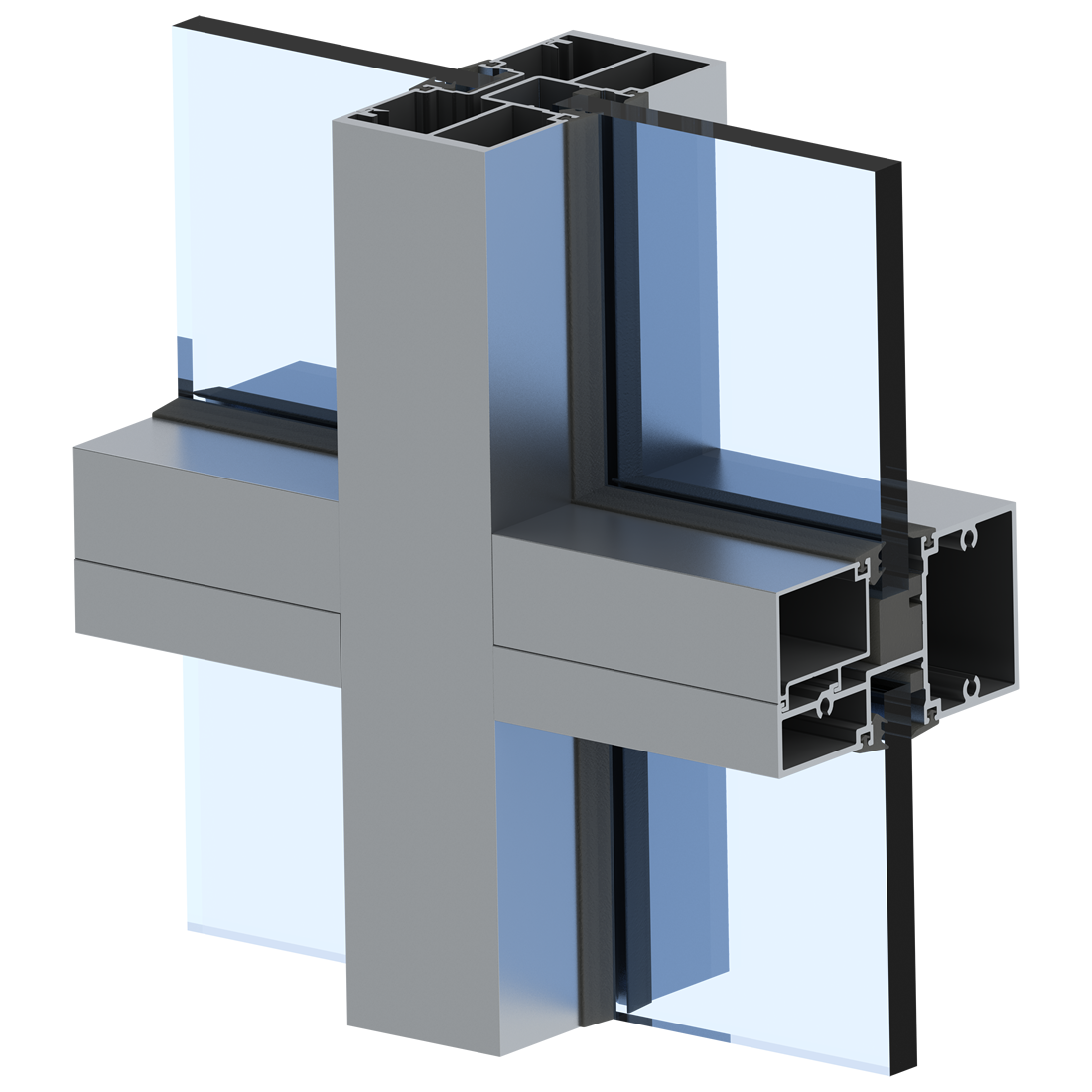

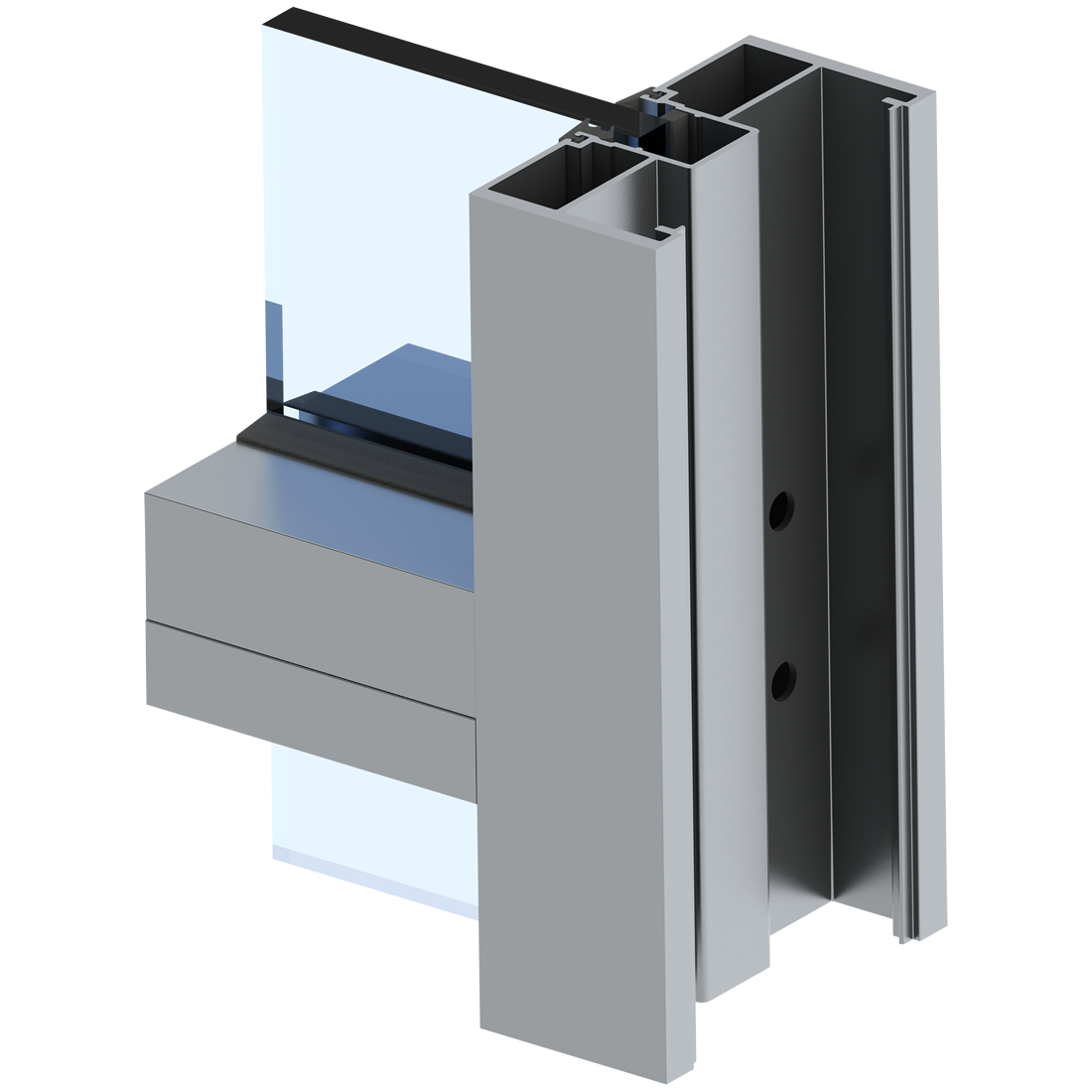

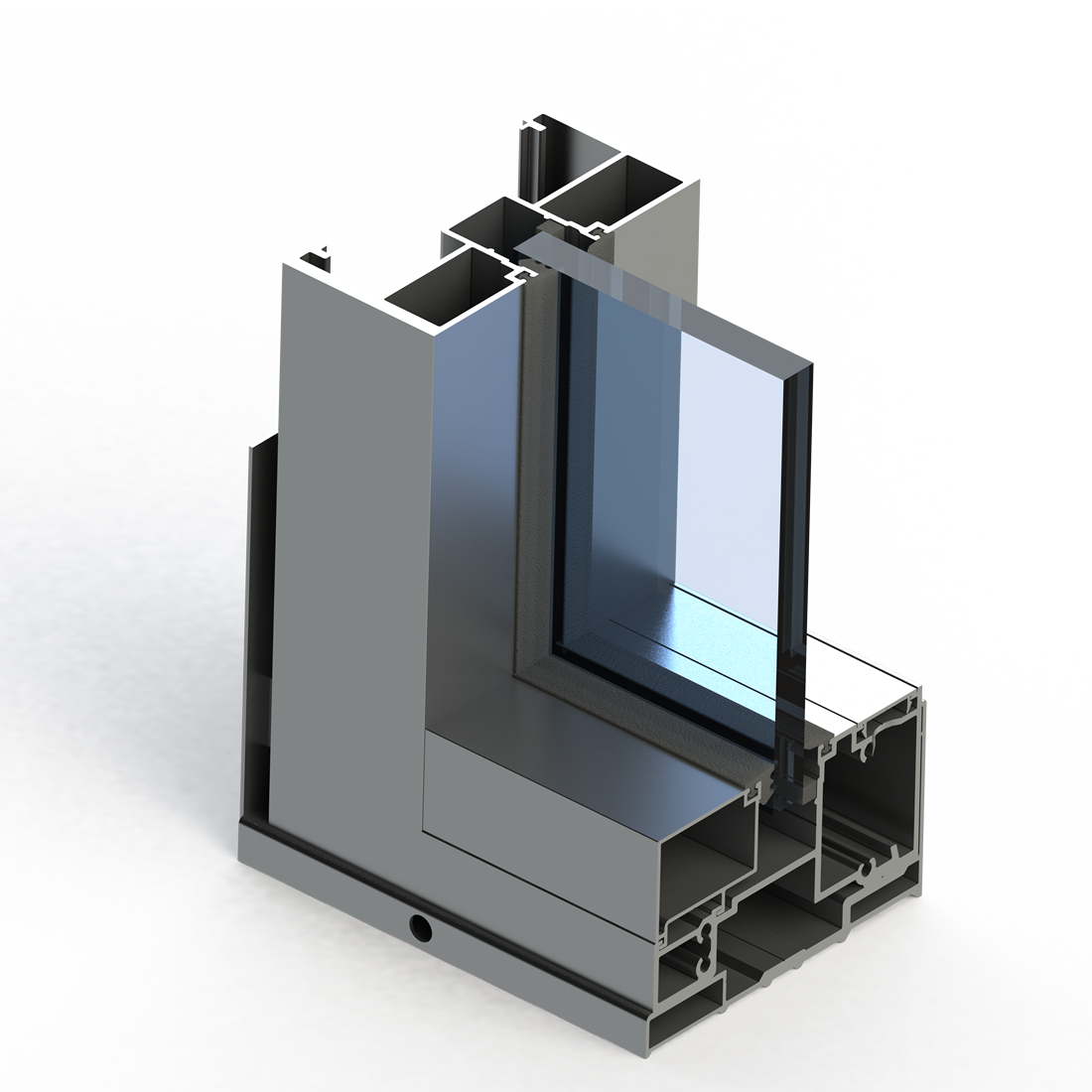

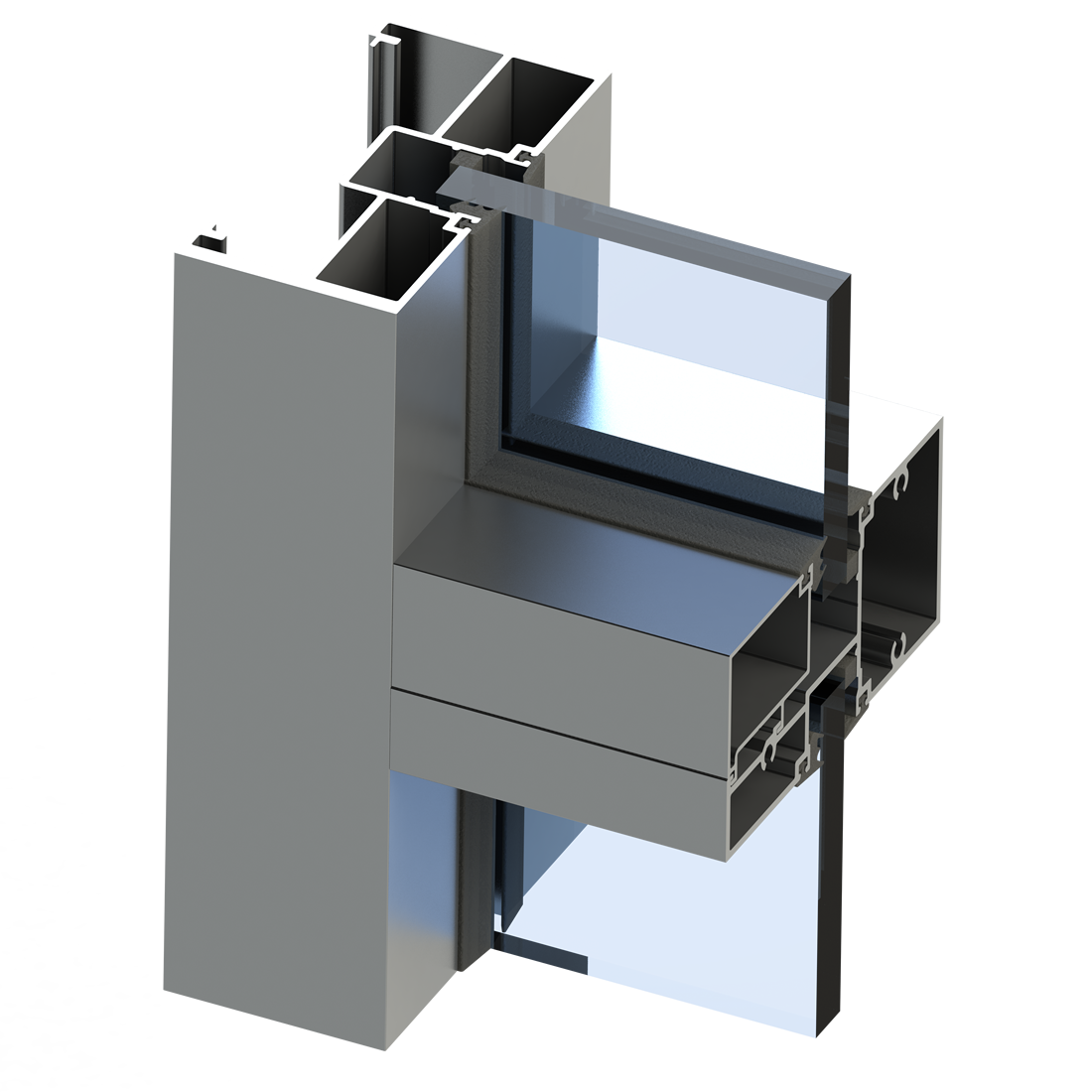

The ES-9500 is an impact resistant storefront system. This product is pre-assembled and pre-glazed, making it a practical design. It has been tested and developed to meet the most stringent impact requirements. The ES-9500 is compatible with the ES-9000 impact door.

Designed for the USA market

FEATURES
Hurricane Resistant Hurricane Resistant

System Description

Frame depth: 5”. Sightline frame: 2 1/2”. Center glazed. Designed for 9/16” laminated glass and 15/16” insulating laminated glass. Maximum size: 48” x 120”. Large missile impact. Design load: +120/-120 psf. Water infiltration: 18 psf. U-value: 0.44.

Features

Pre-assembled and pre-glazed. Anodized, painted or wood grain finishes available. Silicone gaskets for improved durability. Architectural shapes available. Integral door adaptor. Continuous sill flashing. Screw cover. Center glazed.
