DOORS

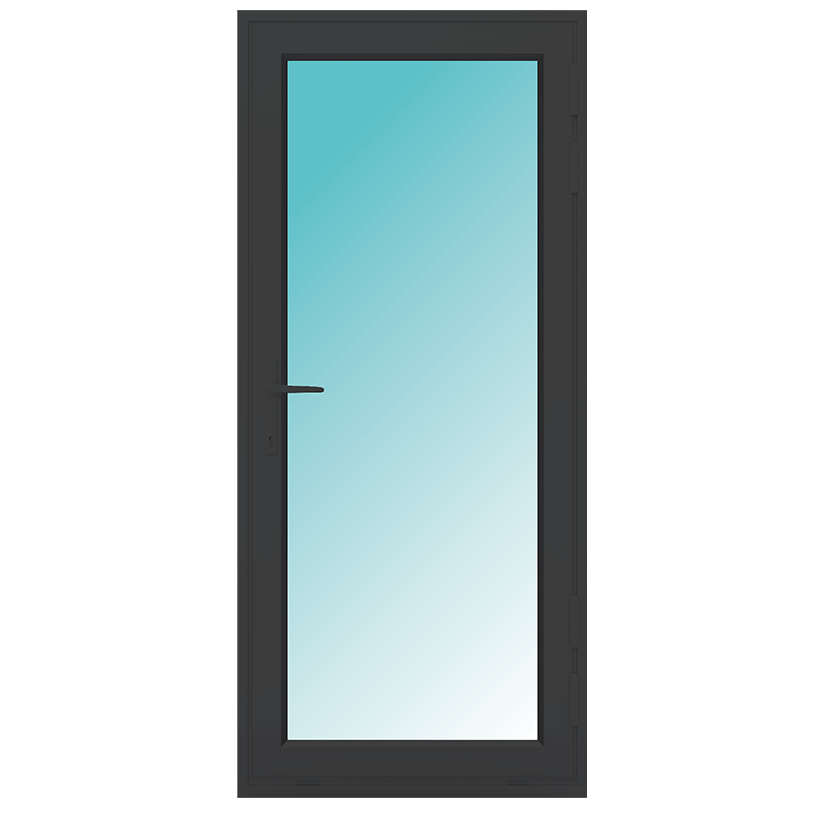

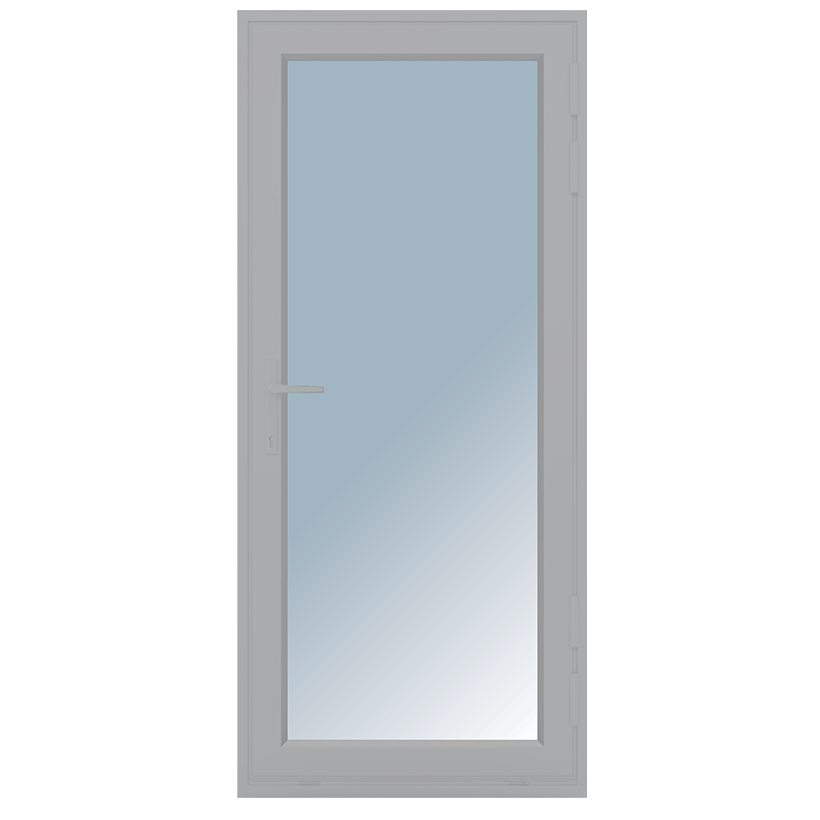

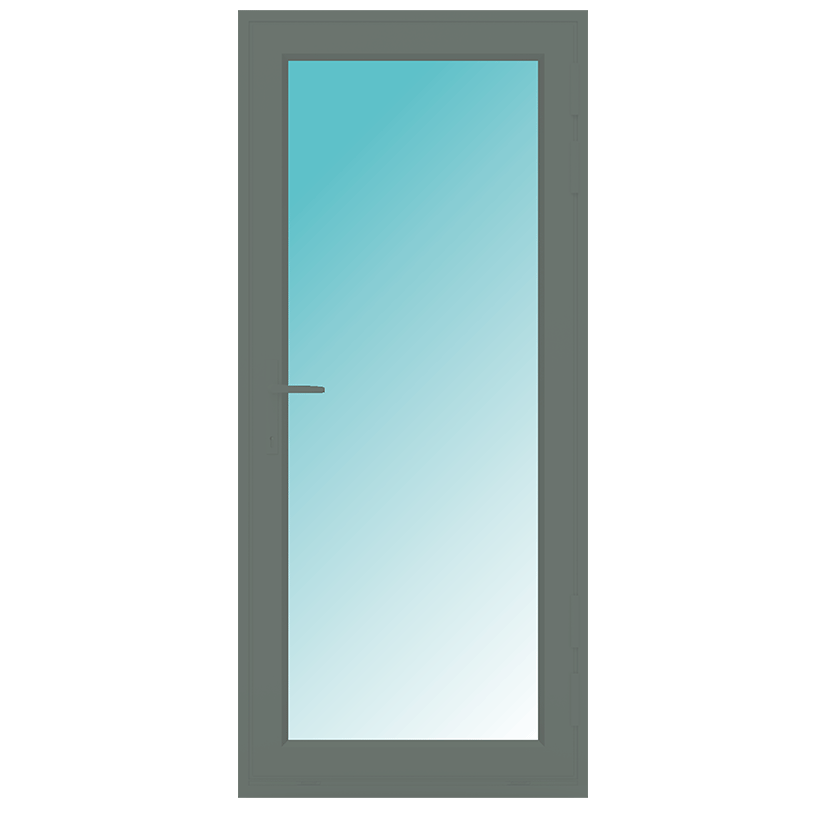

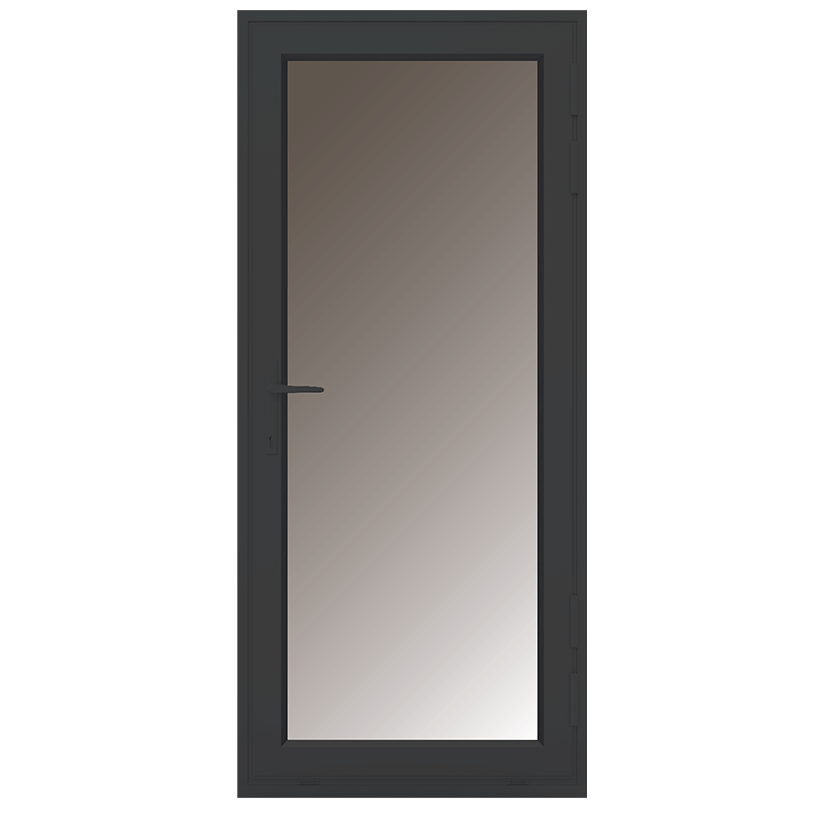

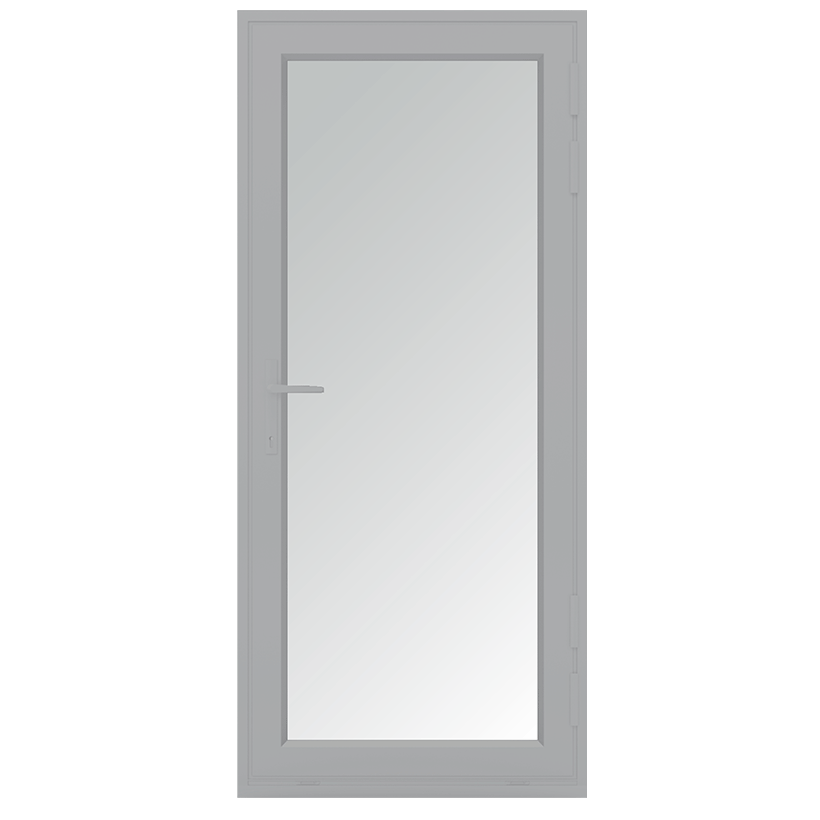

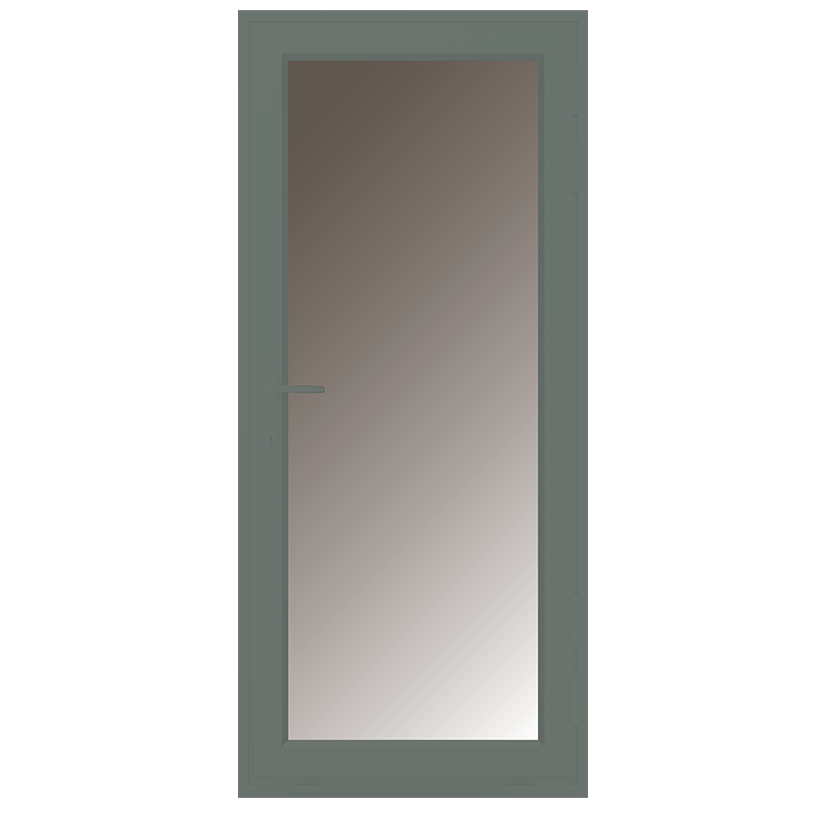

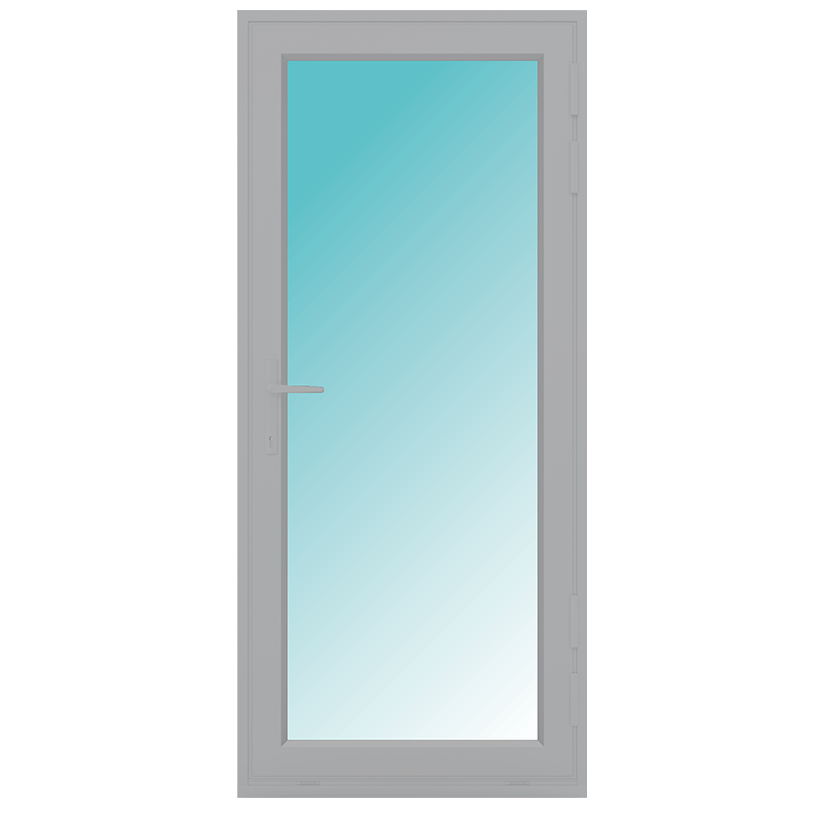

ES-46T

TYPE
Swing
BRAND
Prestige®

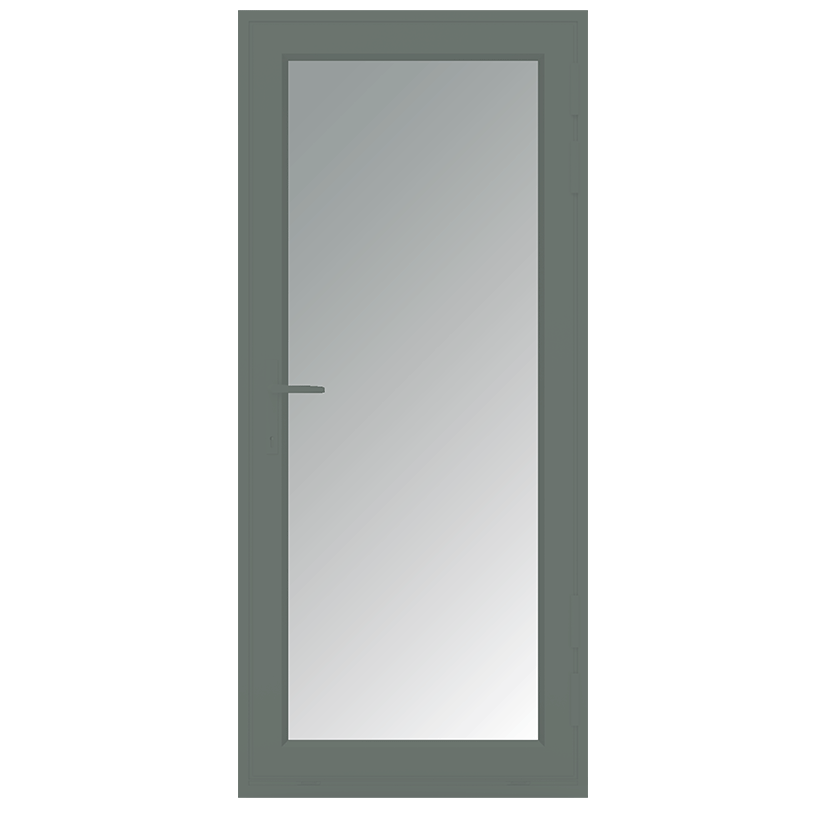

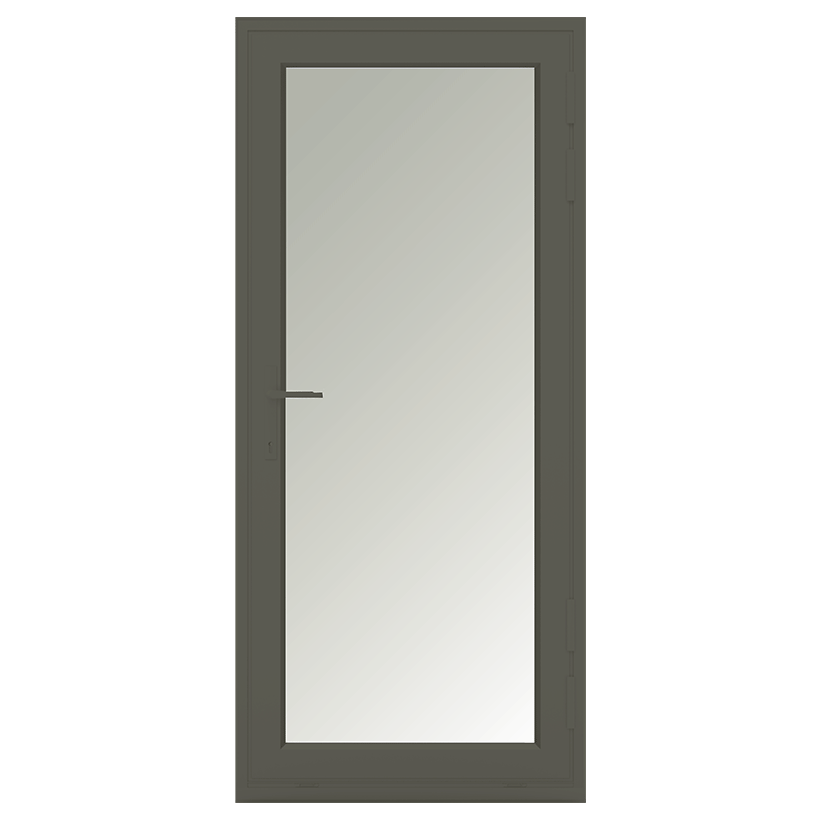

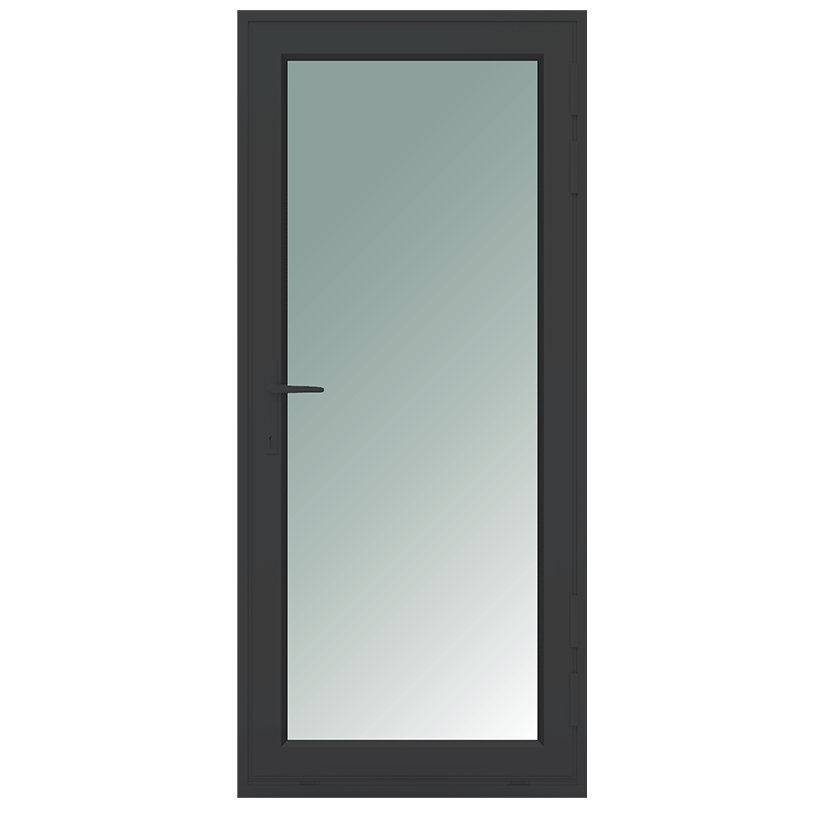

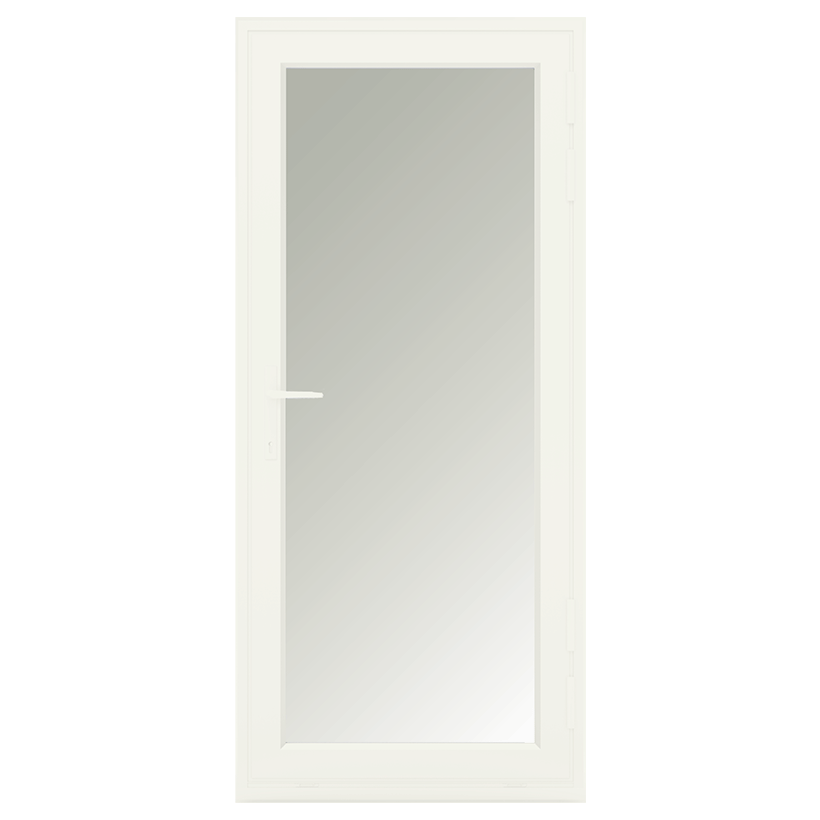

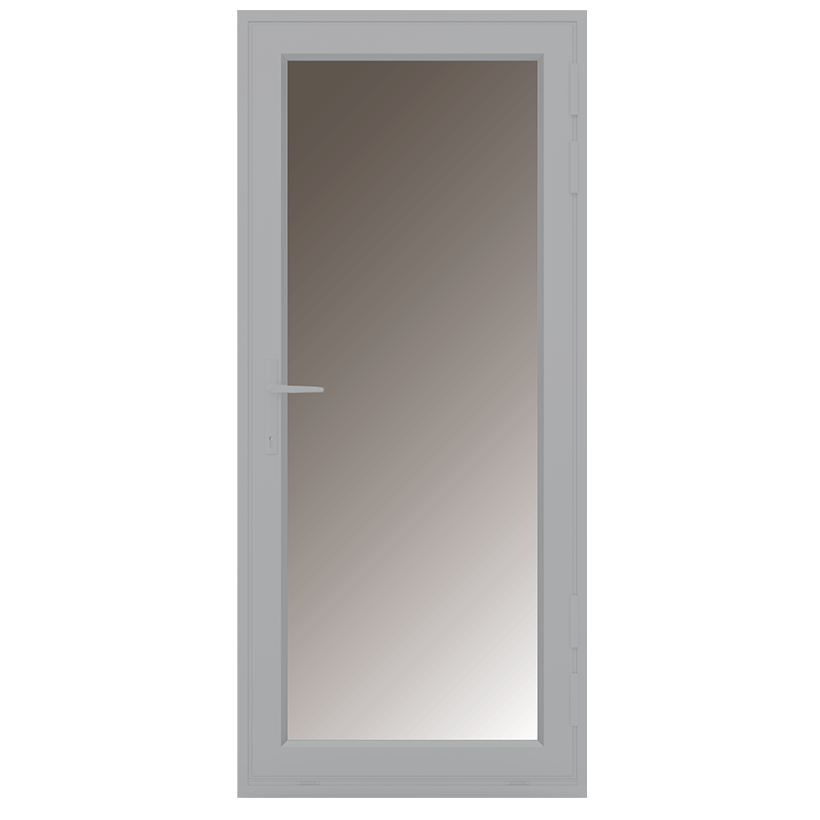

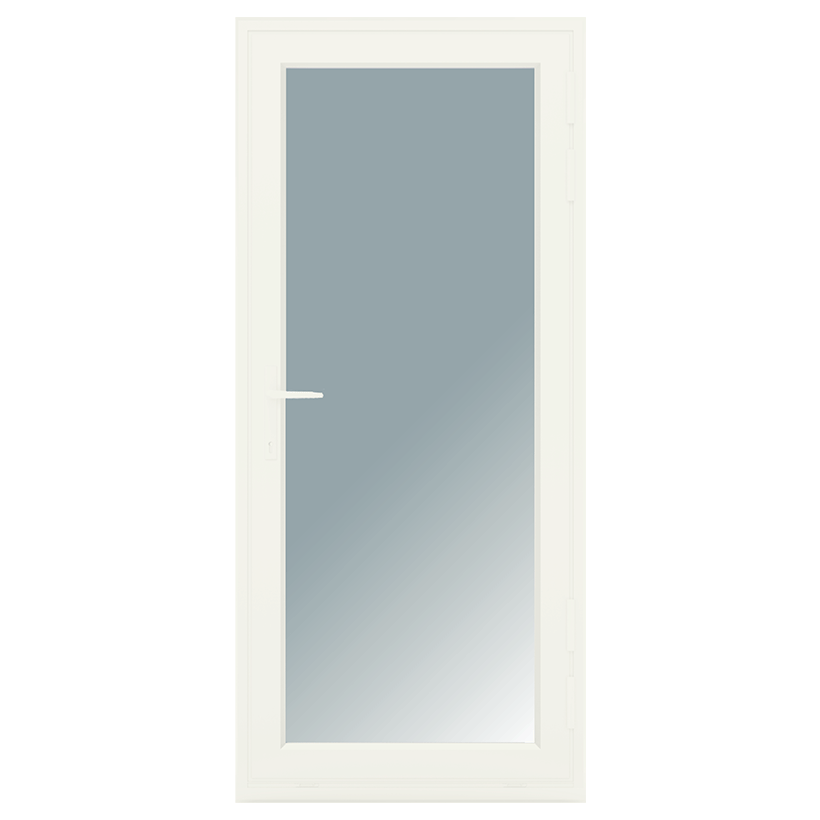

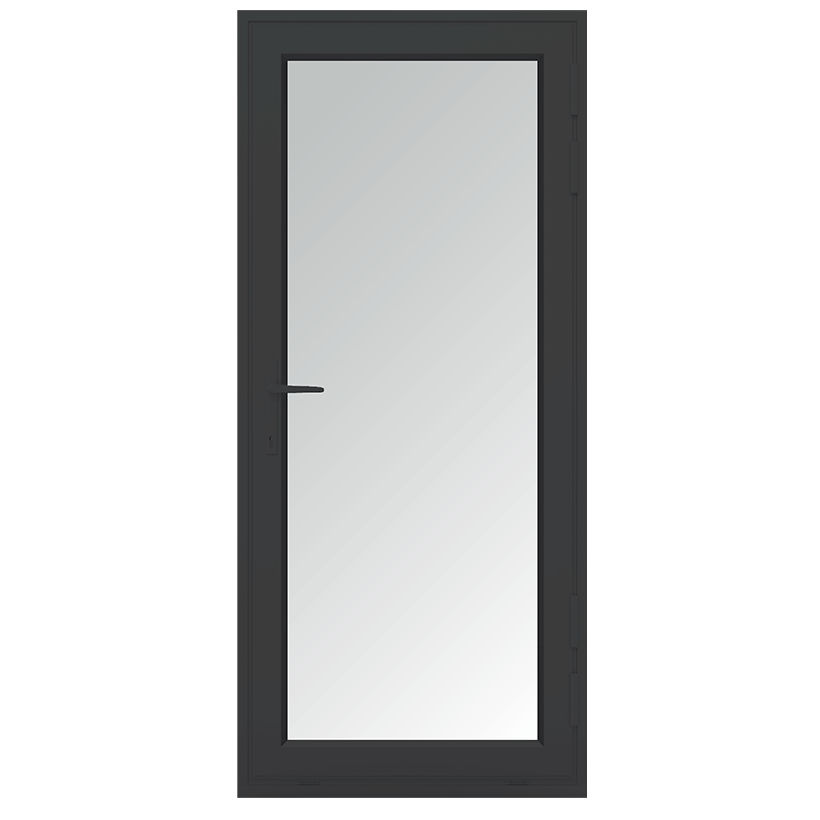

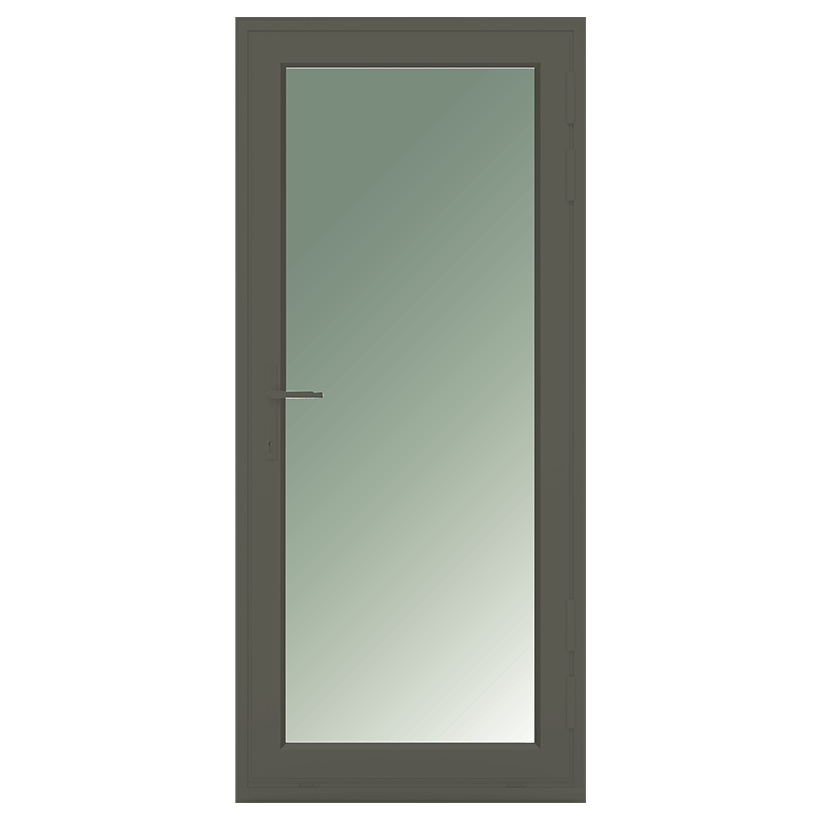

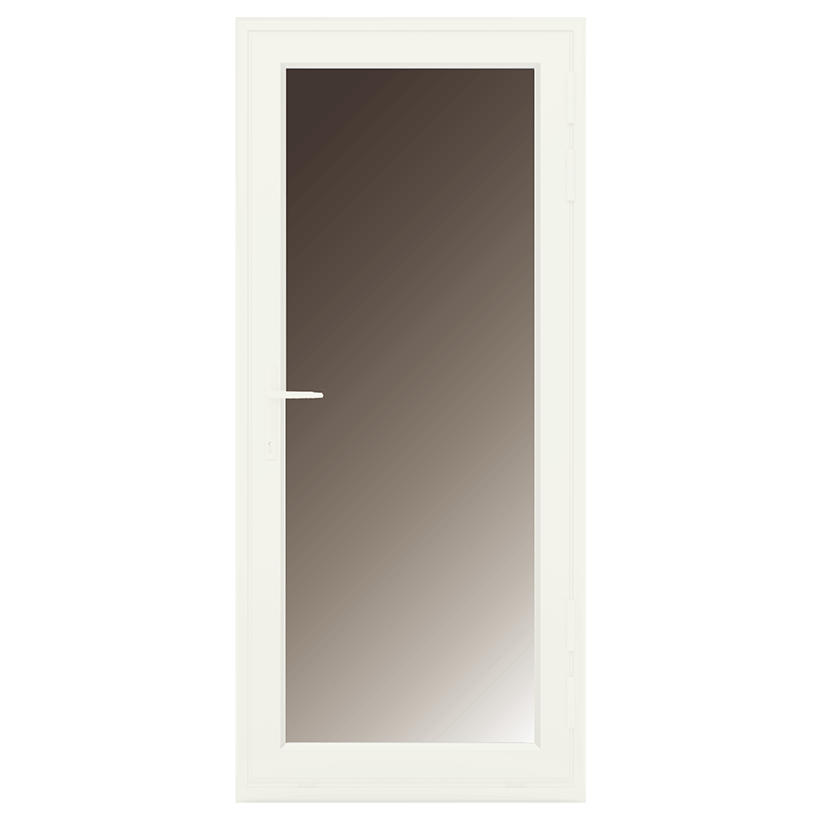

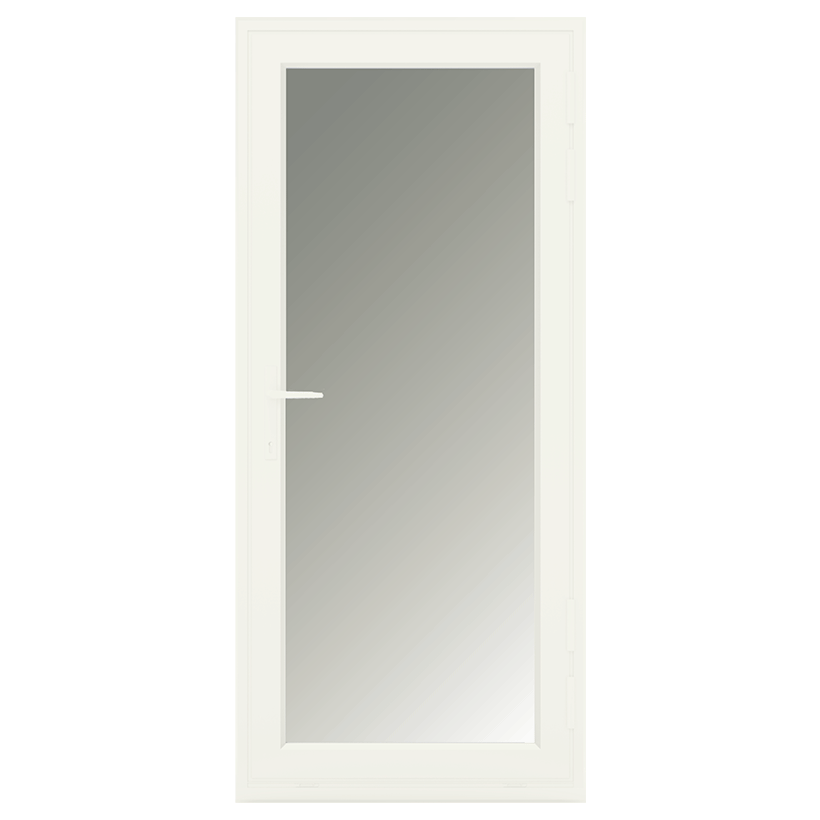

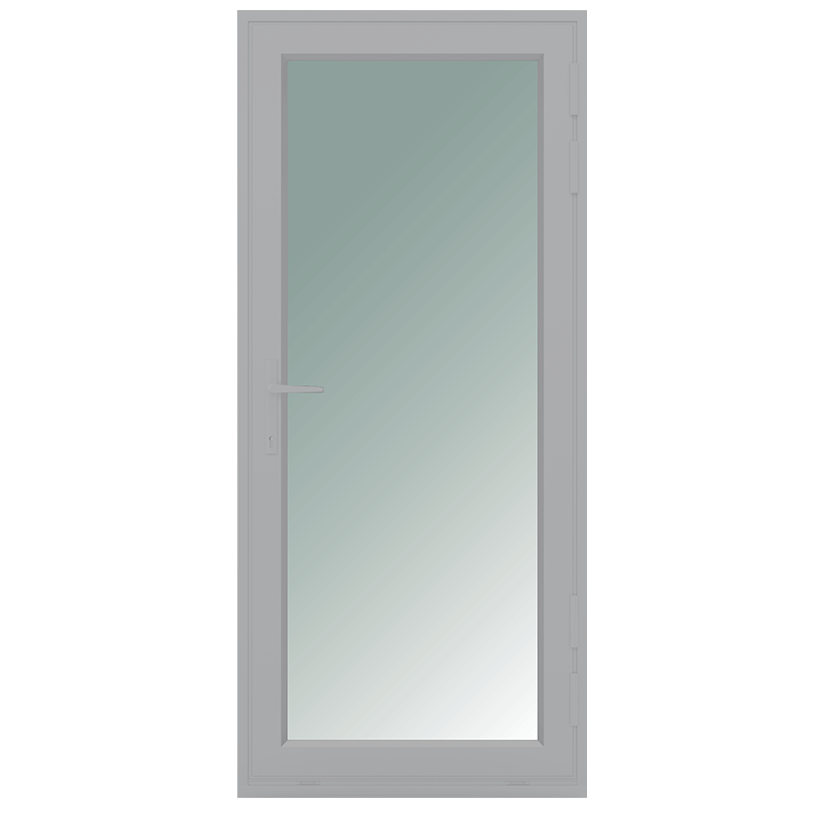

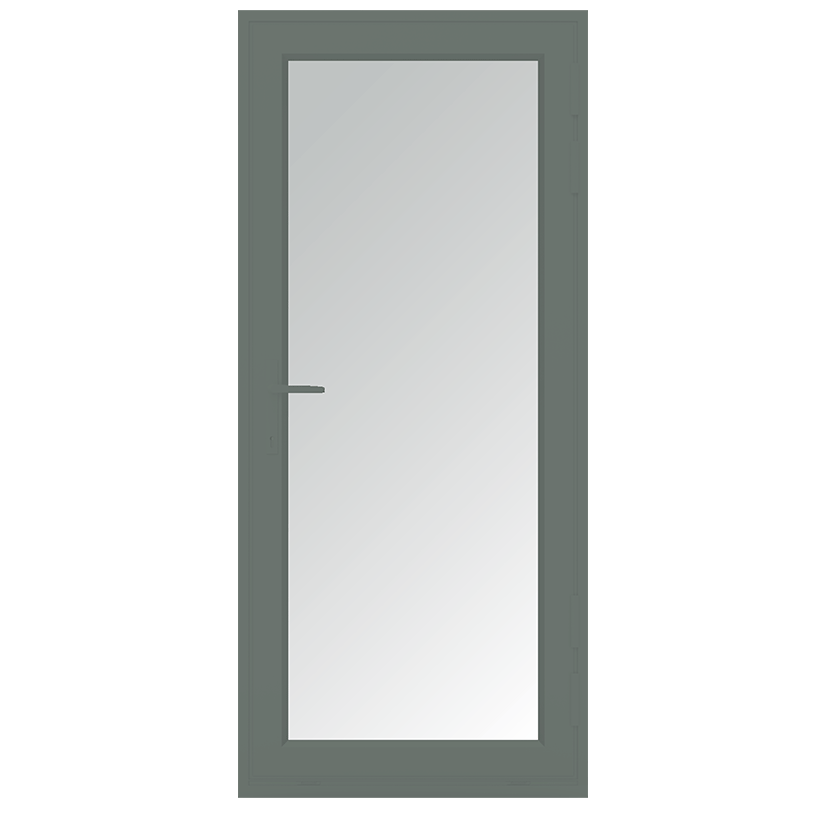

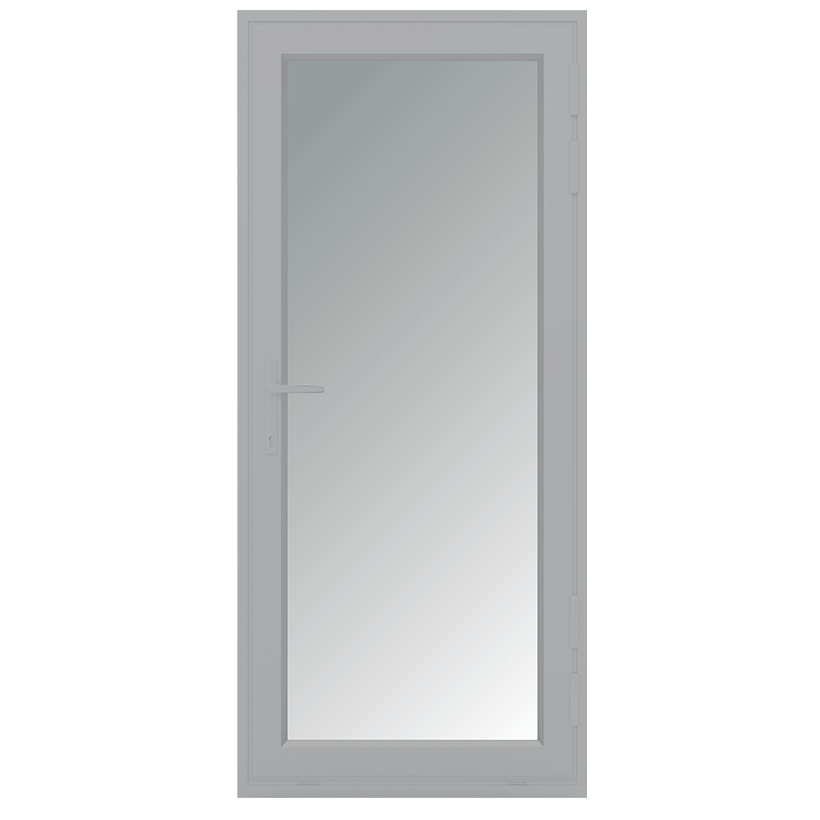

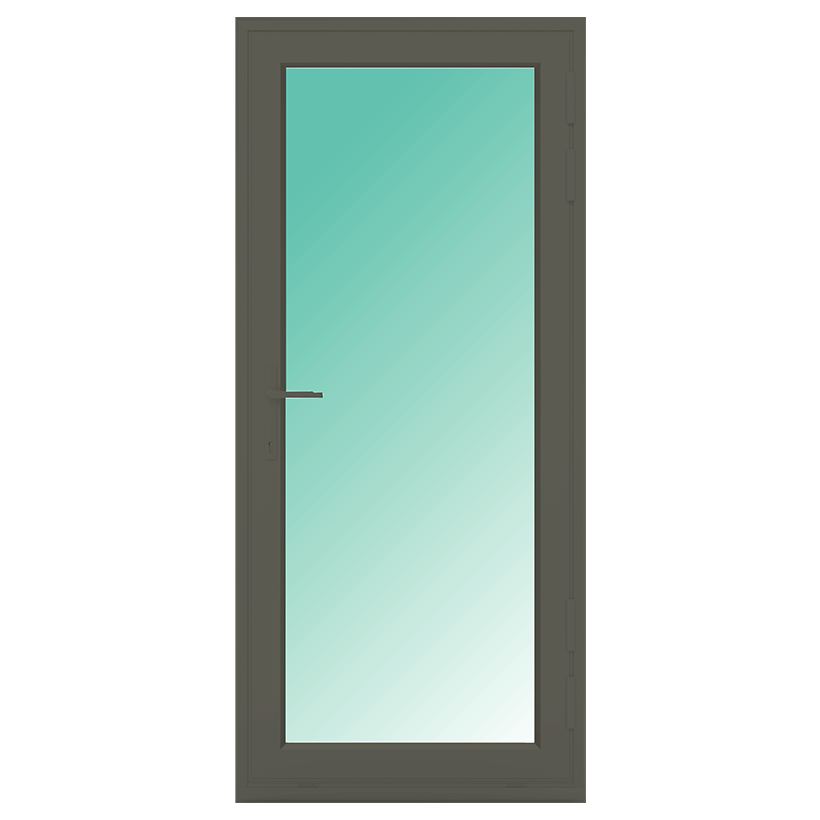

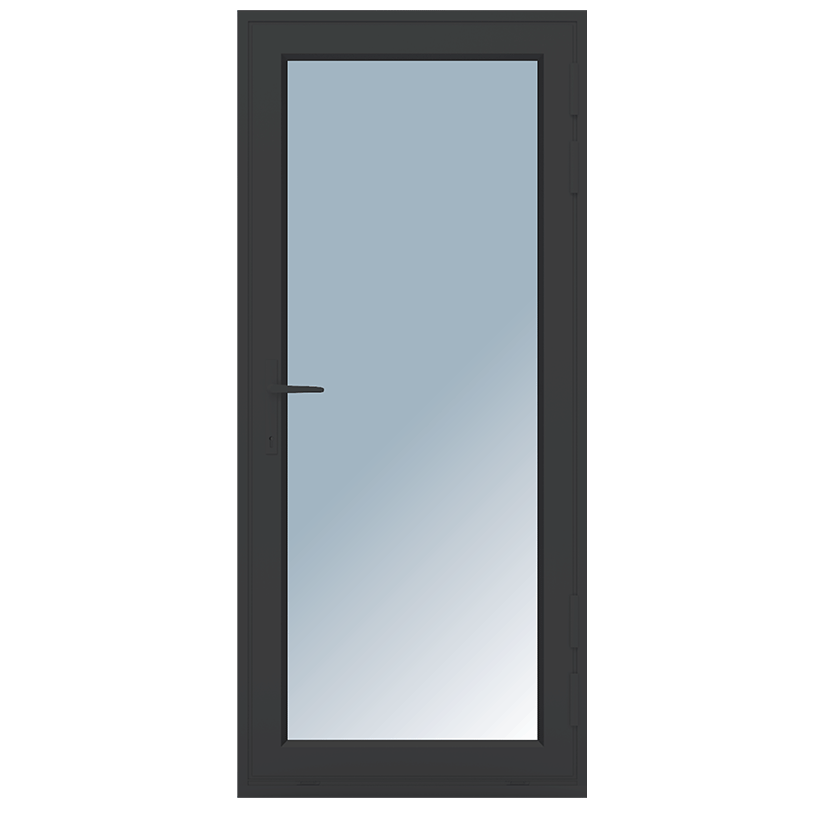

ES-46T is an out-swing door designed for balconies and open spaces. It pairs easy operation with a sophisticated modern look.

Installation Instructions ES-7000/7100Installation Intructions ES 46T

Designed for the USA market

FEATURES
Hurricane Resistant Hurricane Resistant Thermally Broken Thermally Broken

System Description

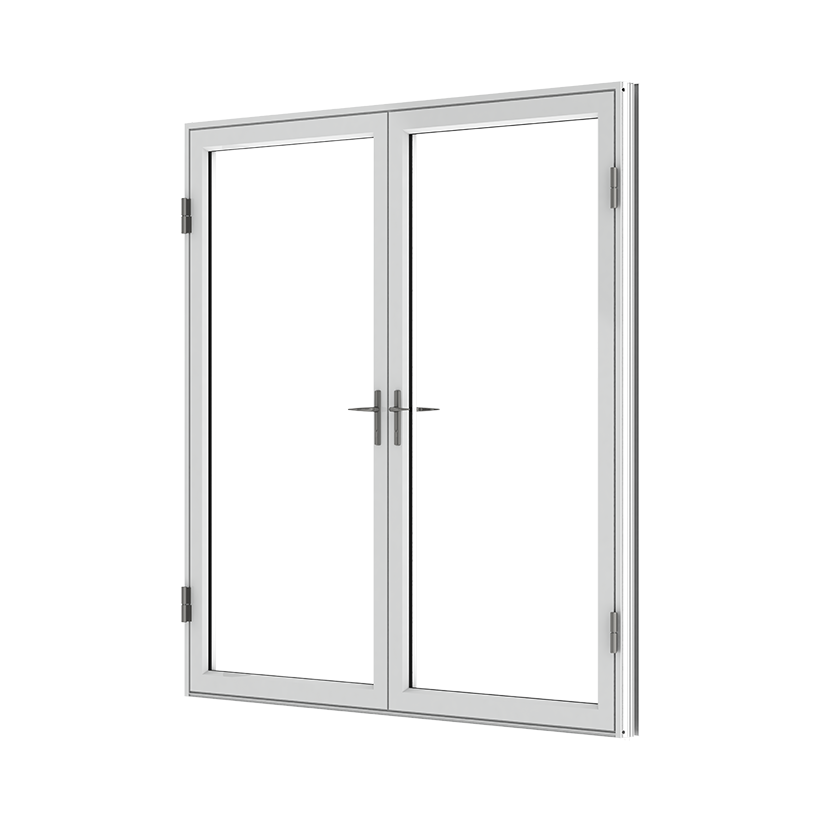

Small and large missile impact rated Maximum size for single door: 41 3/16" width x 108" height 41 3/16" width x 120" height With transom: 41 3/16" width x 134" height Maximum size for double door: 80" width x 98" height 76 1/2" width x 120" height With transom: 80" width x 134" height With sidelites: 98" width x 160" height Frame depth: 4 1/2" Standard threshold height: 2 1/4" ADA threshold height: 1/2" Tested water infiltration: 15 psf. Tested design load: +100/-120 psf. U-value: 0.44 on clear insulating laminated SB 70 SHGC: 0.21 on clear insulating laminated SB 70

Features

ADA threshold and high bottom rail optional Multi-point hardware Thermally broken frame

Related Documents

Datasheet Installation Guide Brochure NFRC Certificate
