WINDOWS

ES-5000

TYPE
Project
BRAND
Elite ®

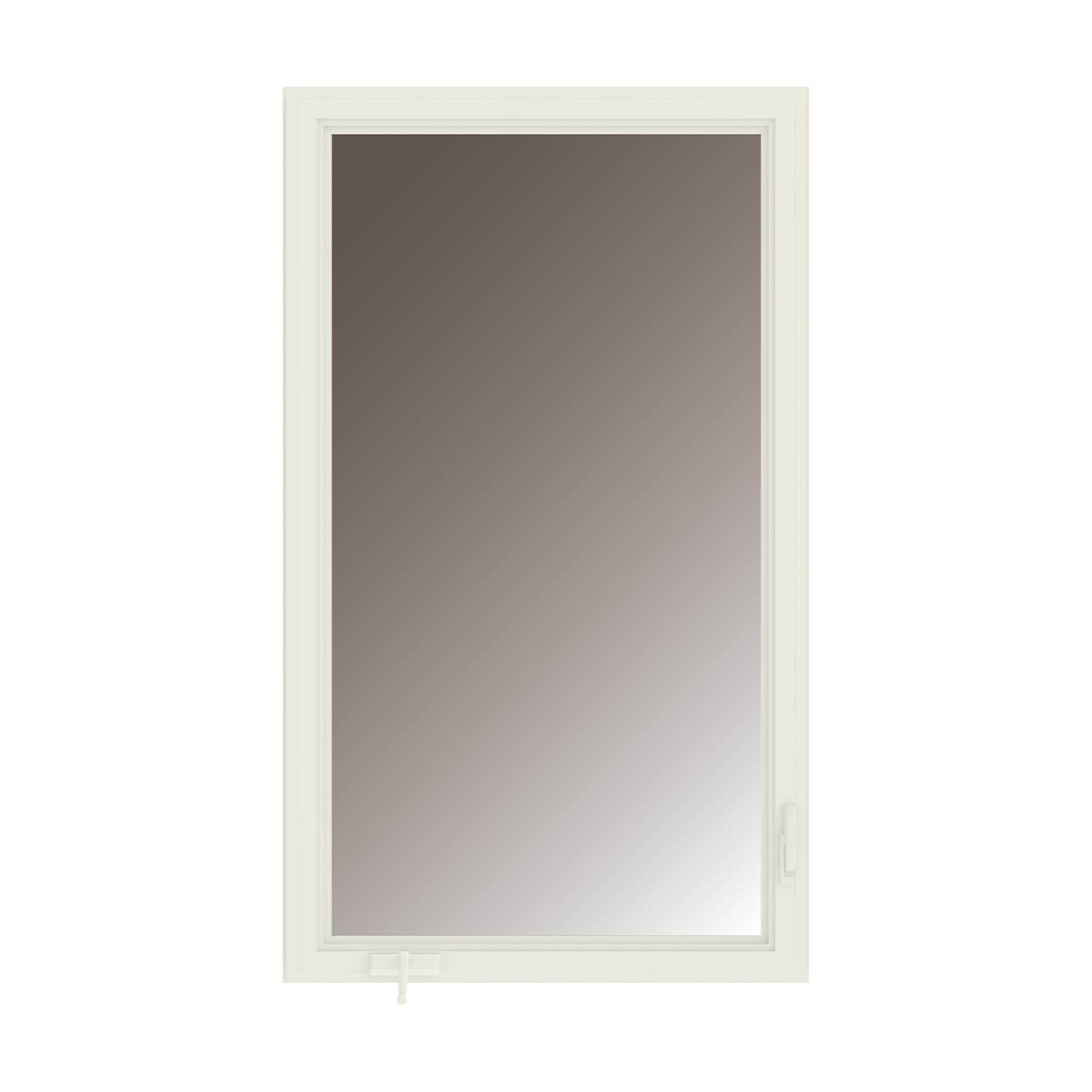

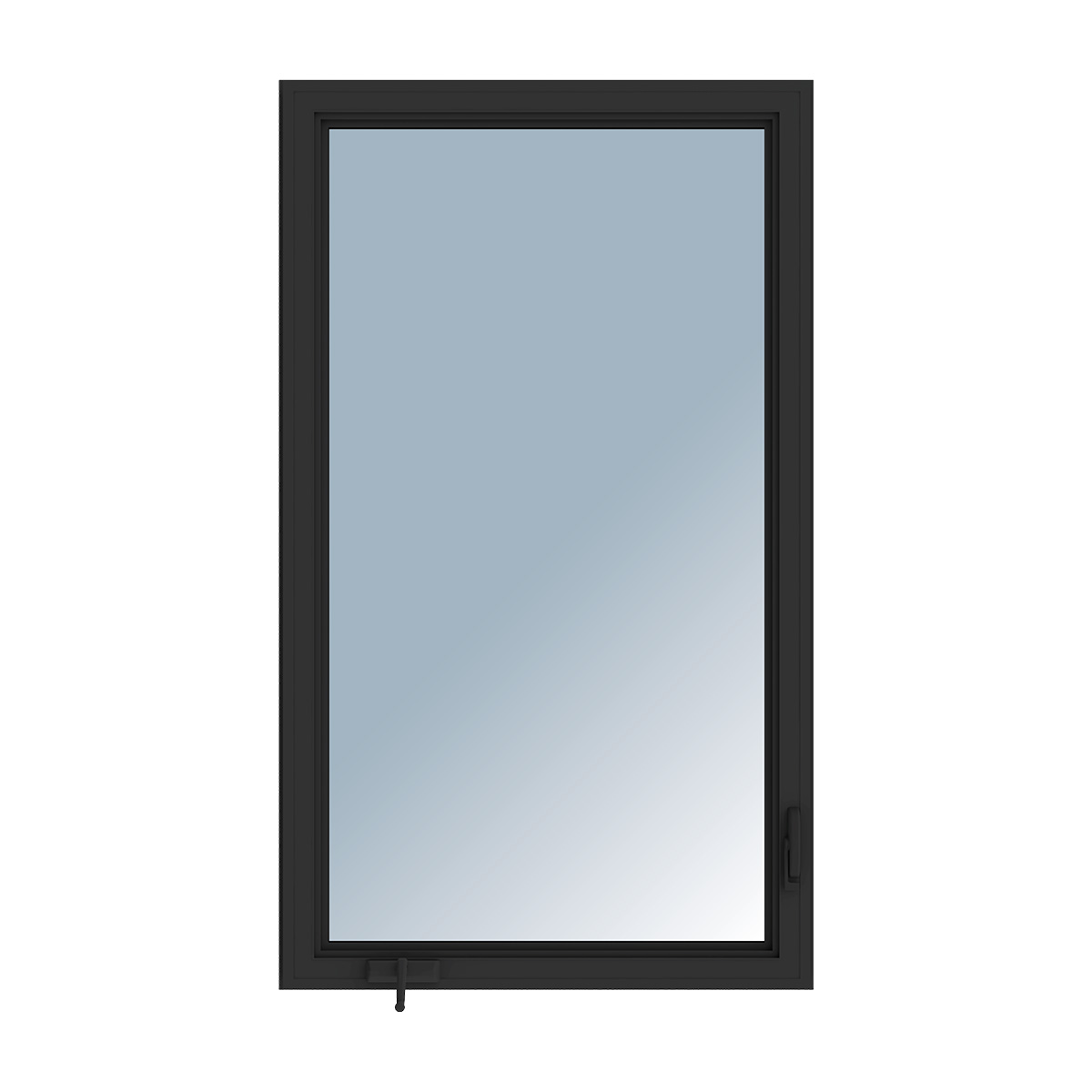

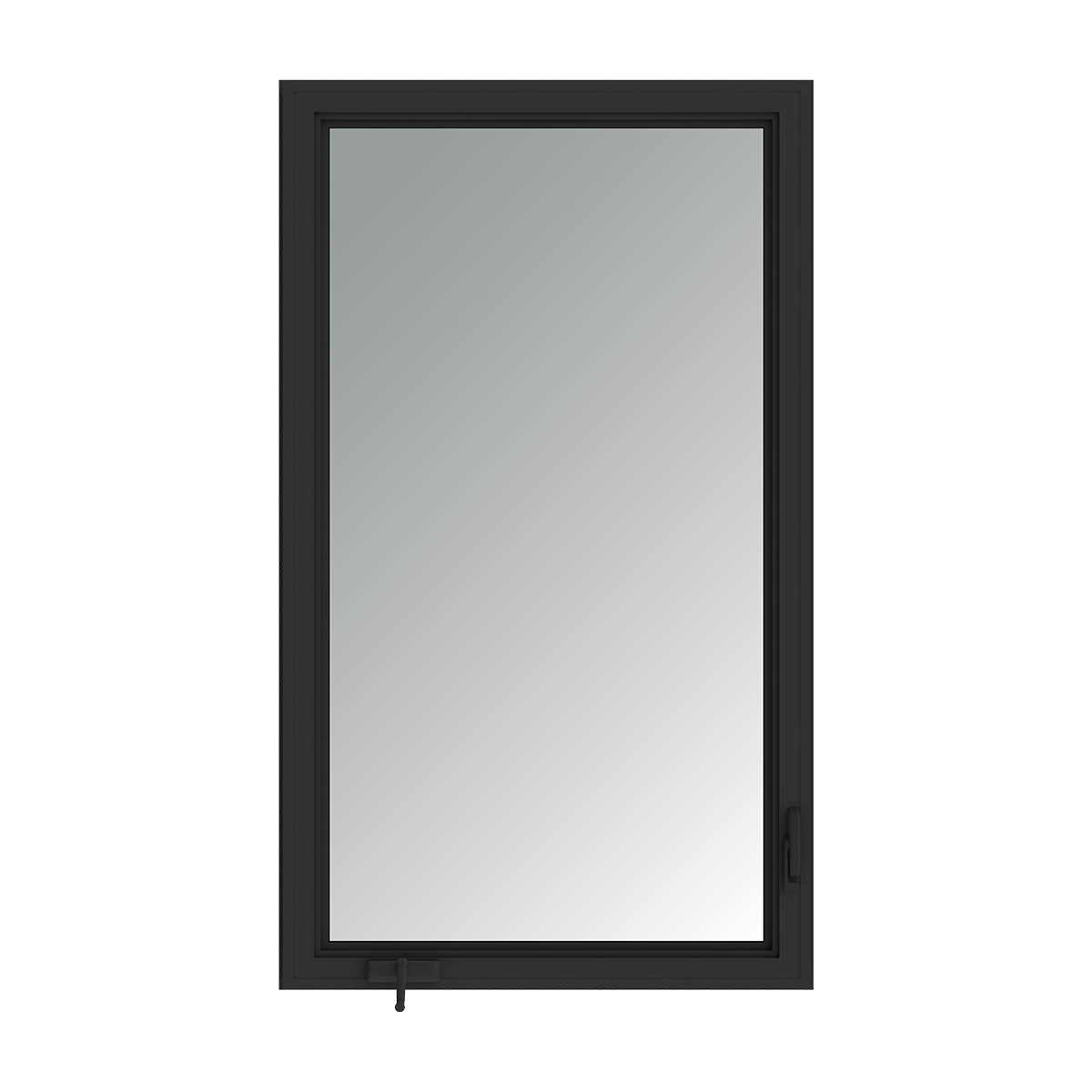

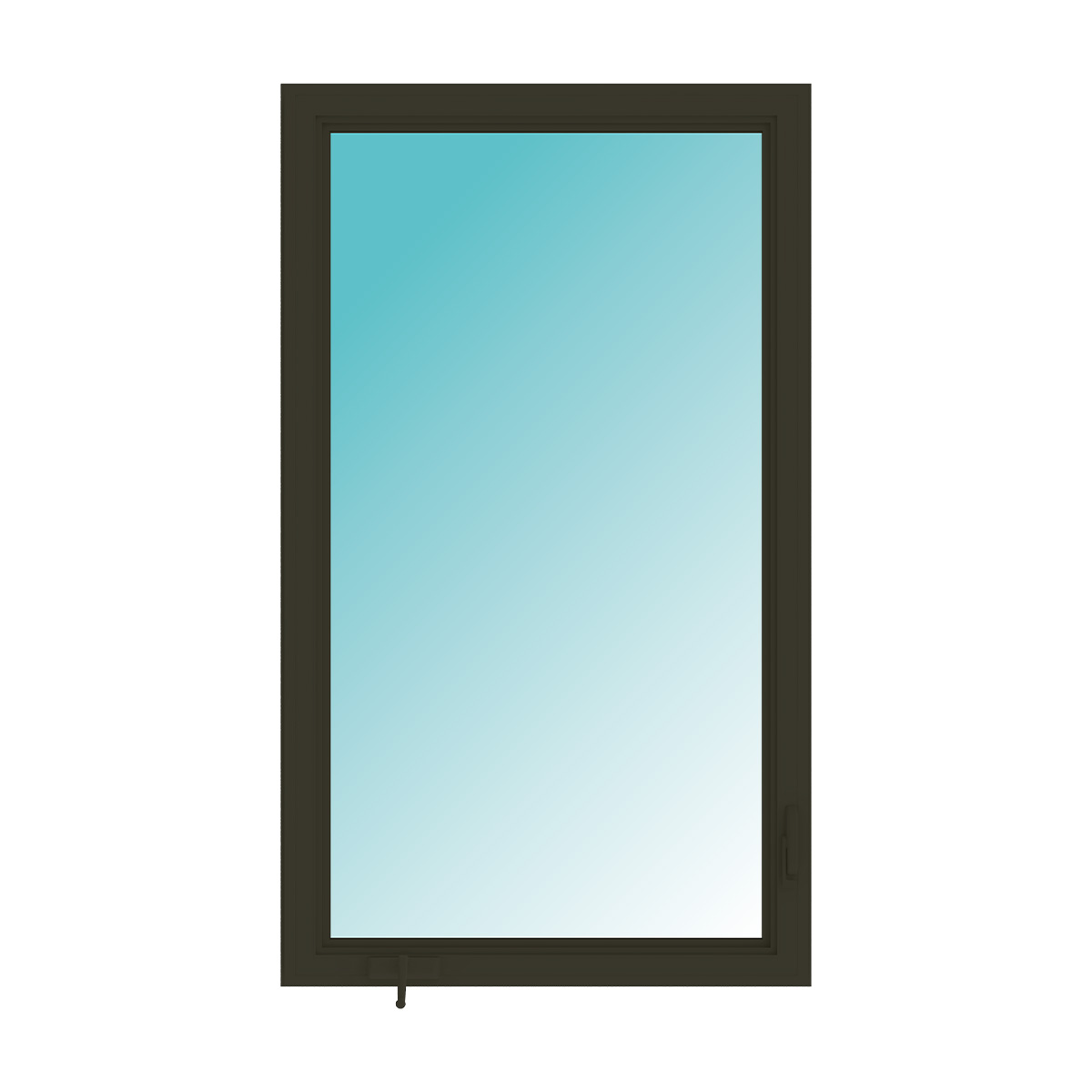

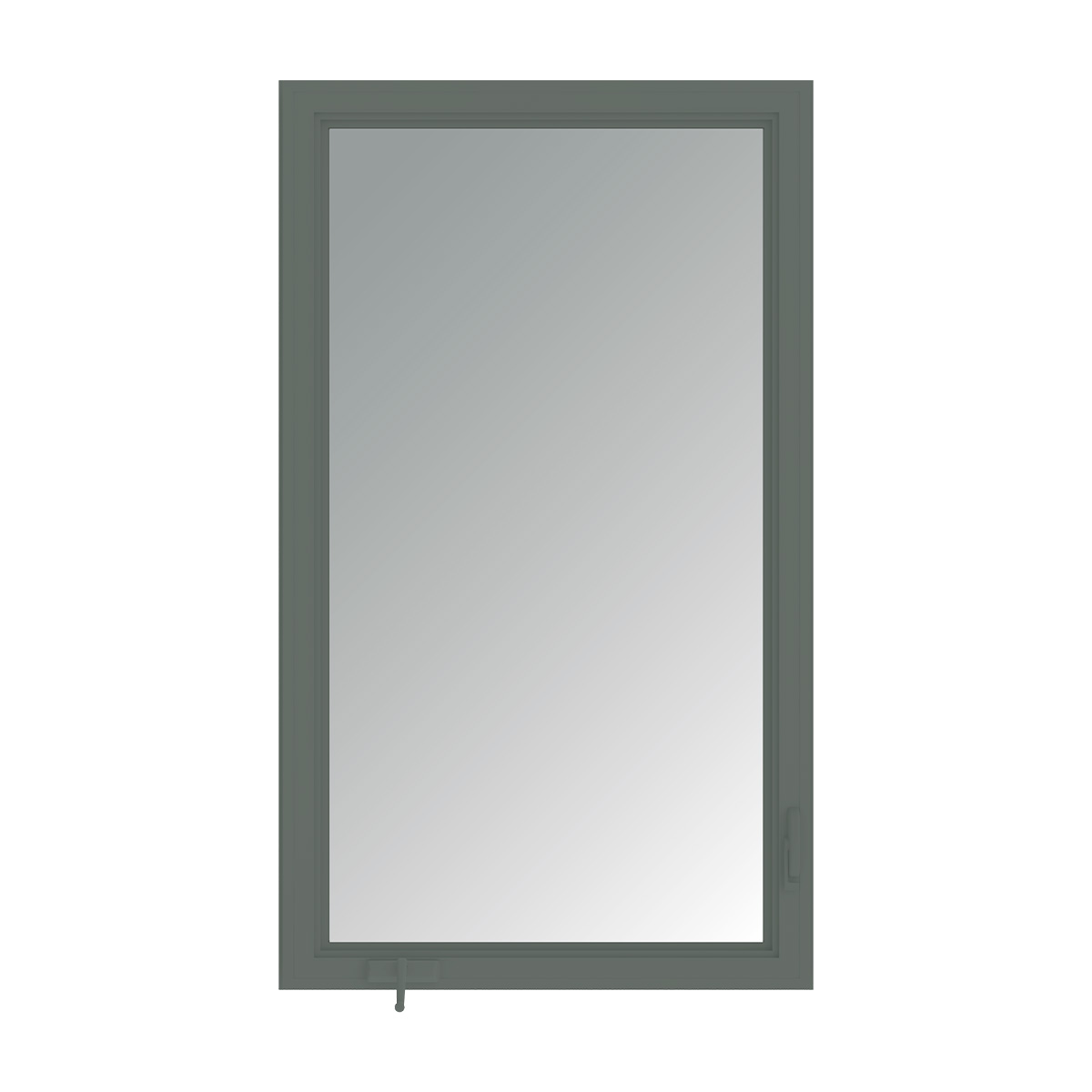

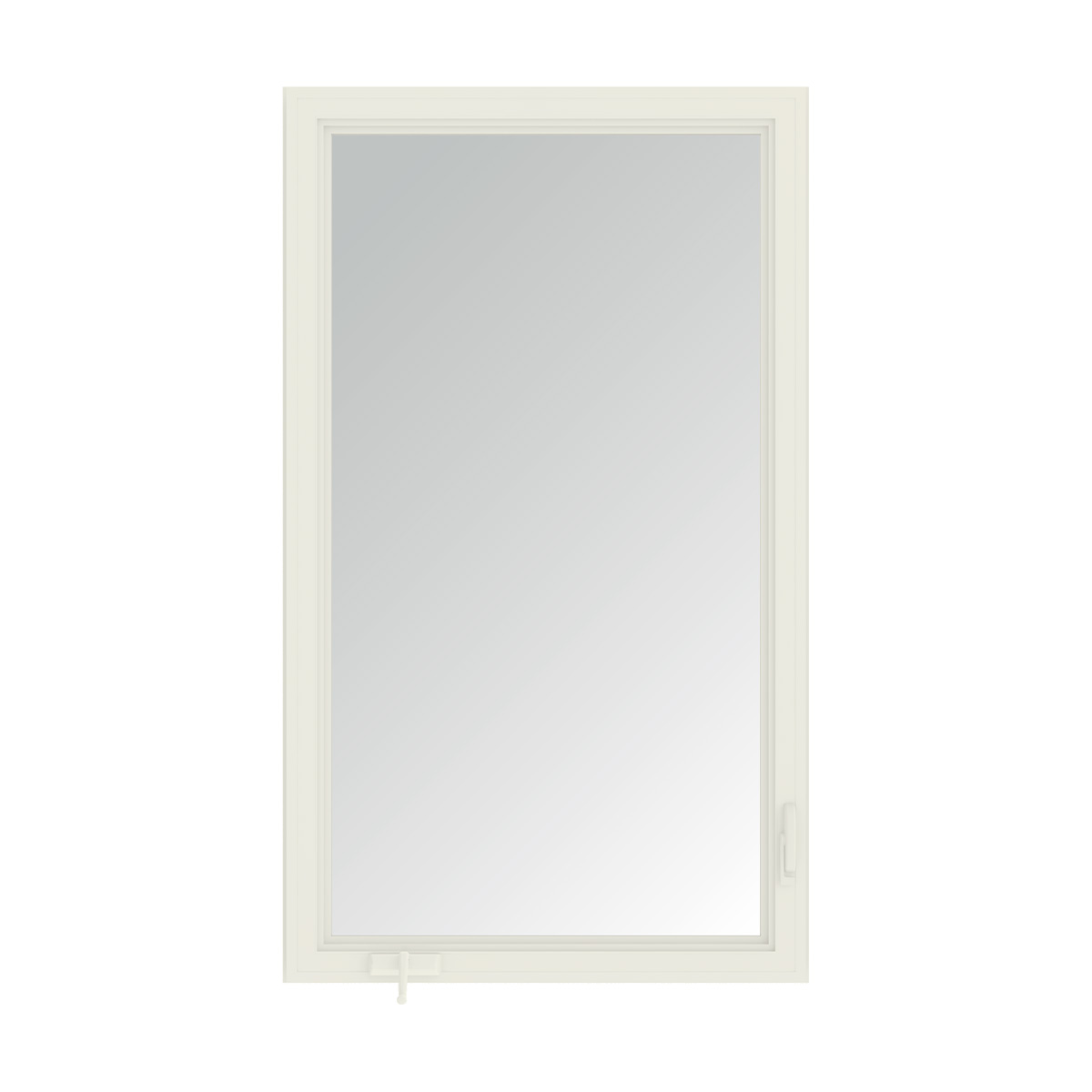

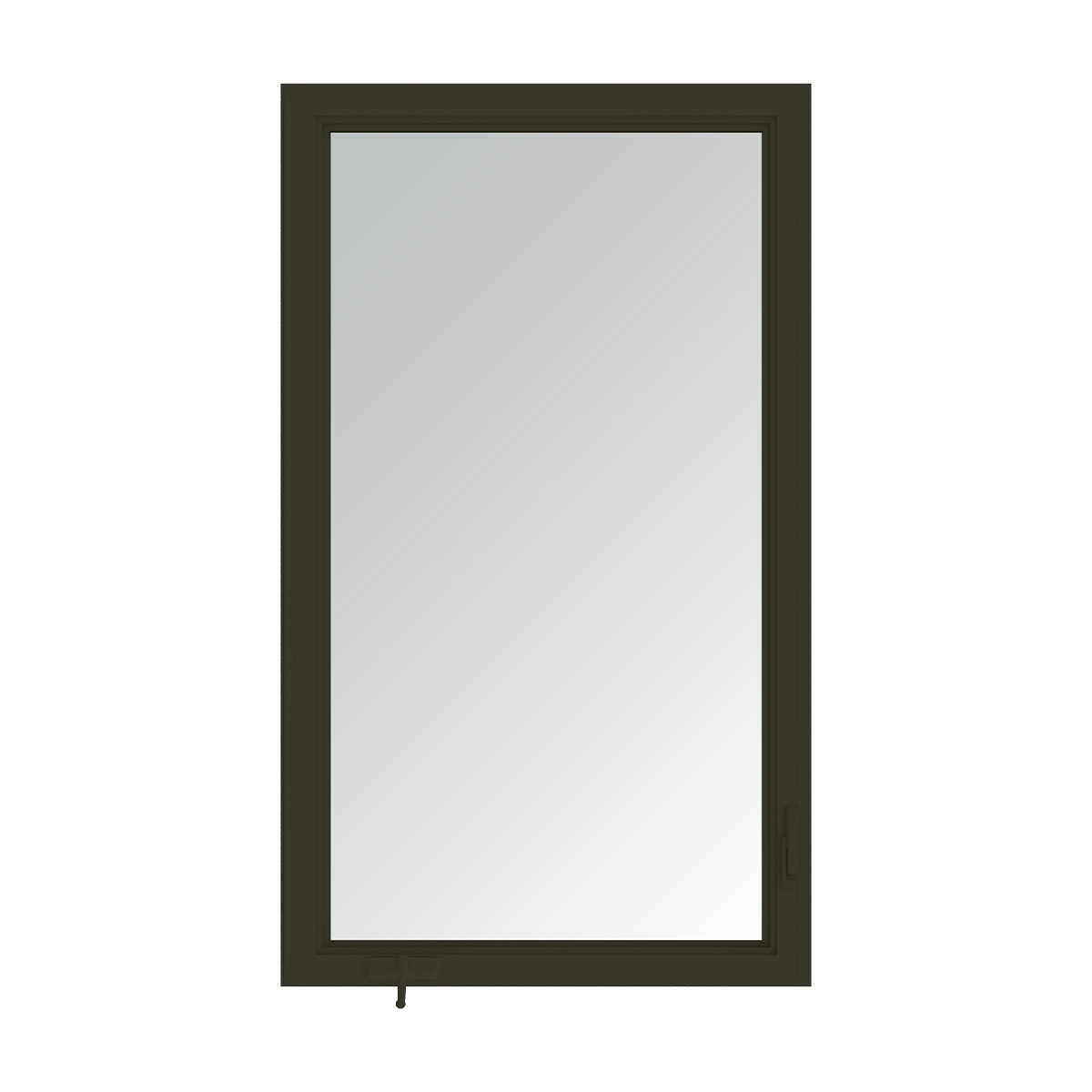

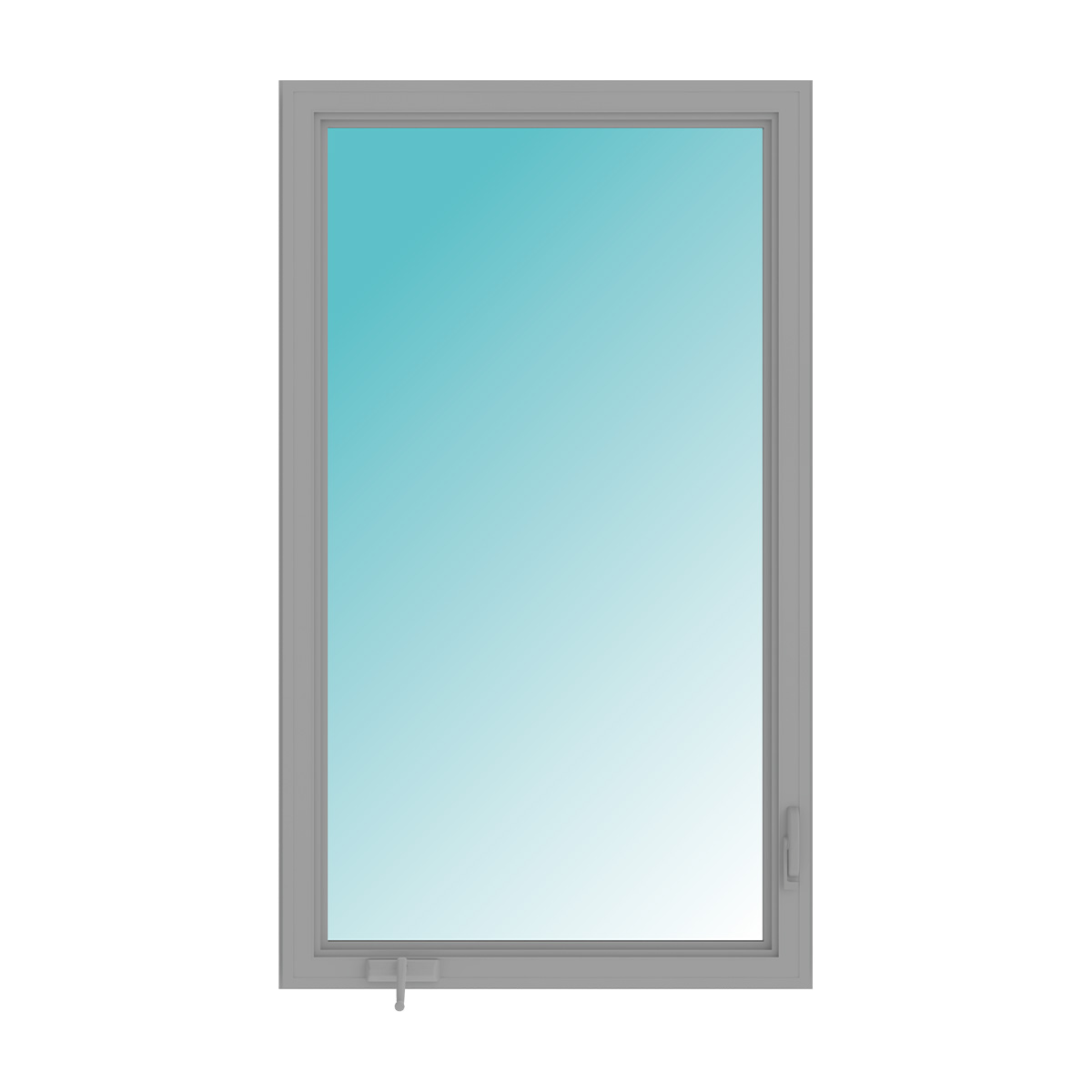

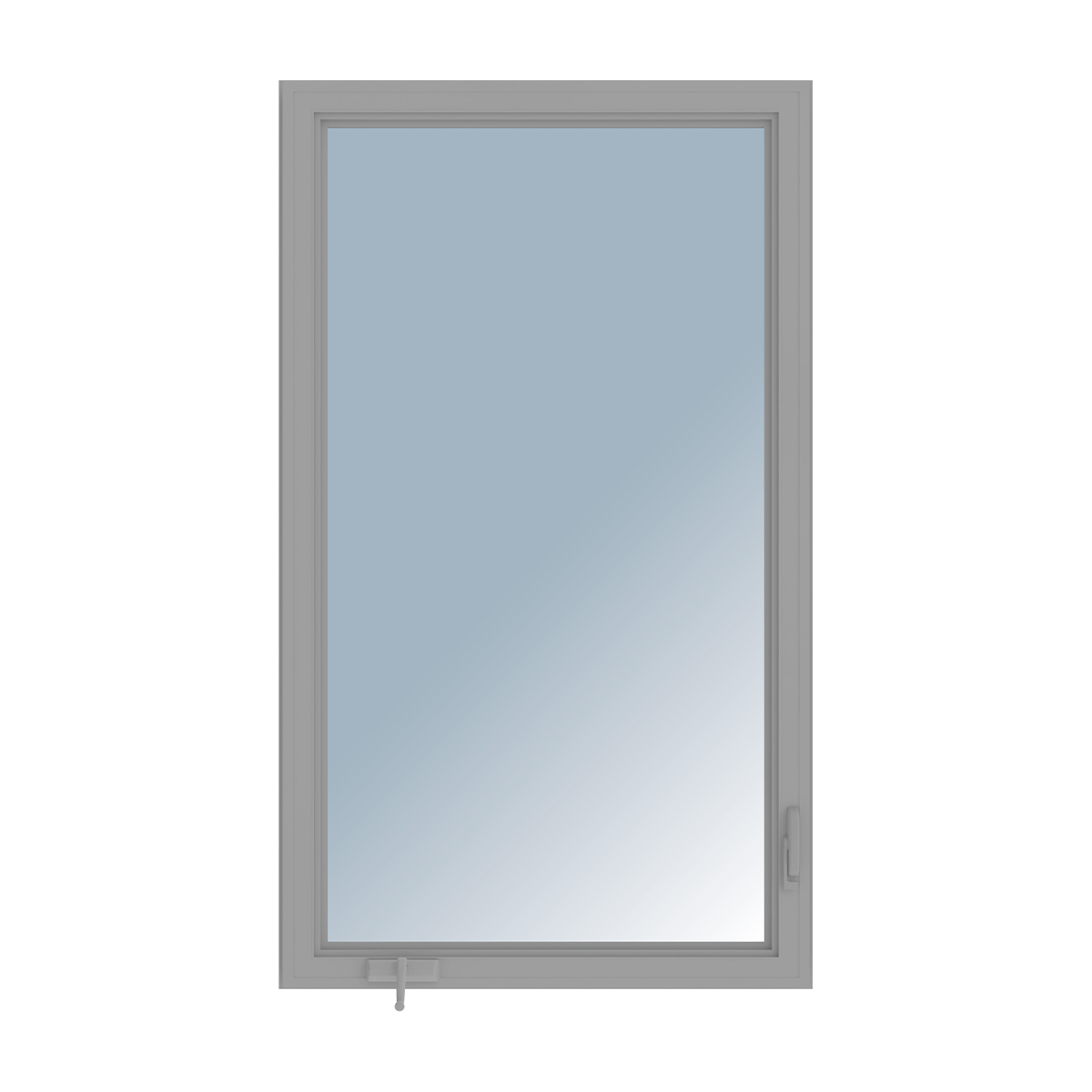

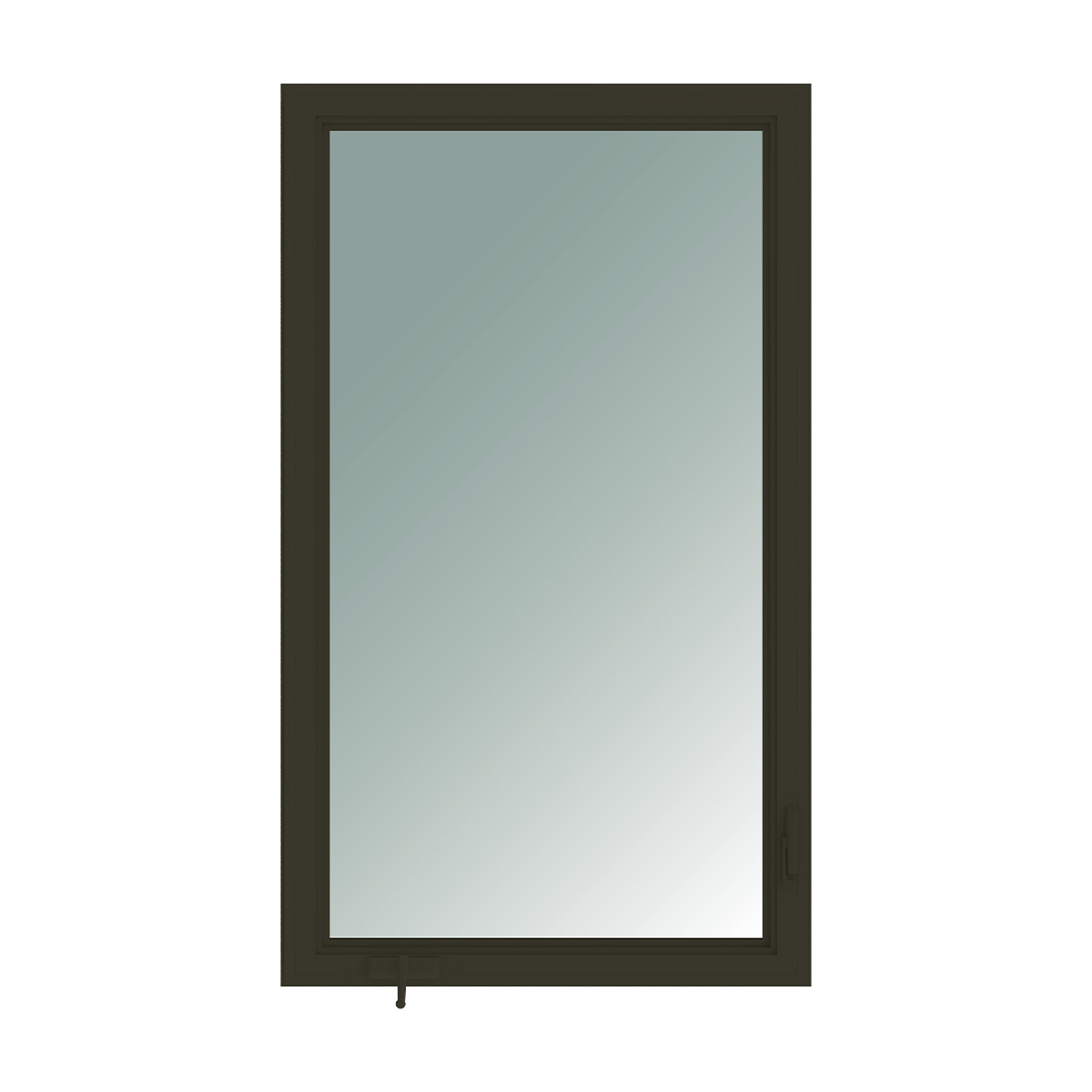

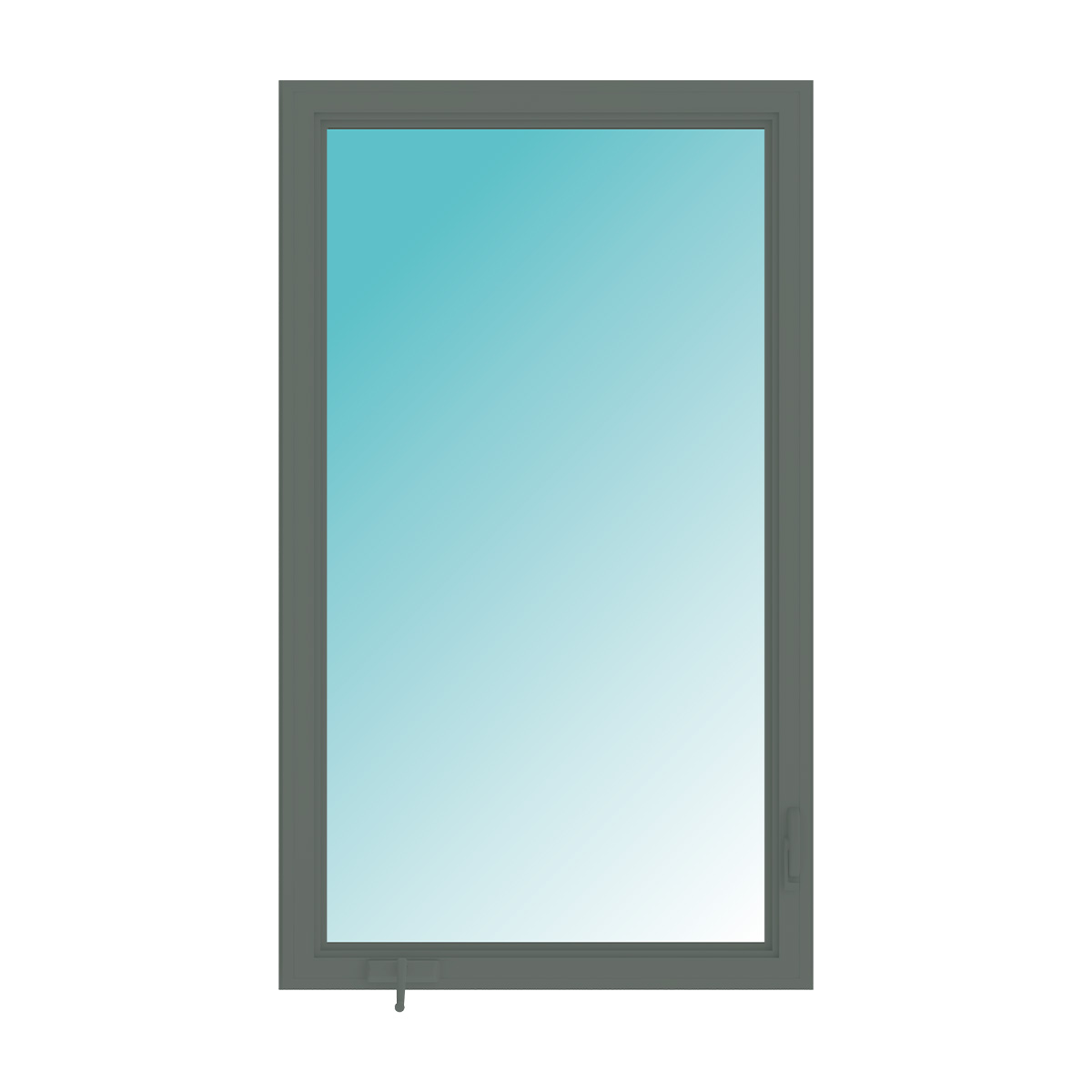

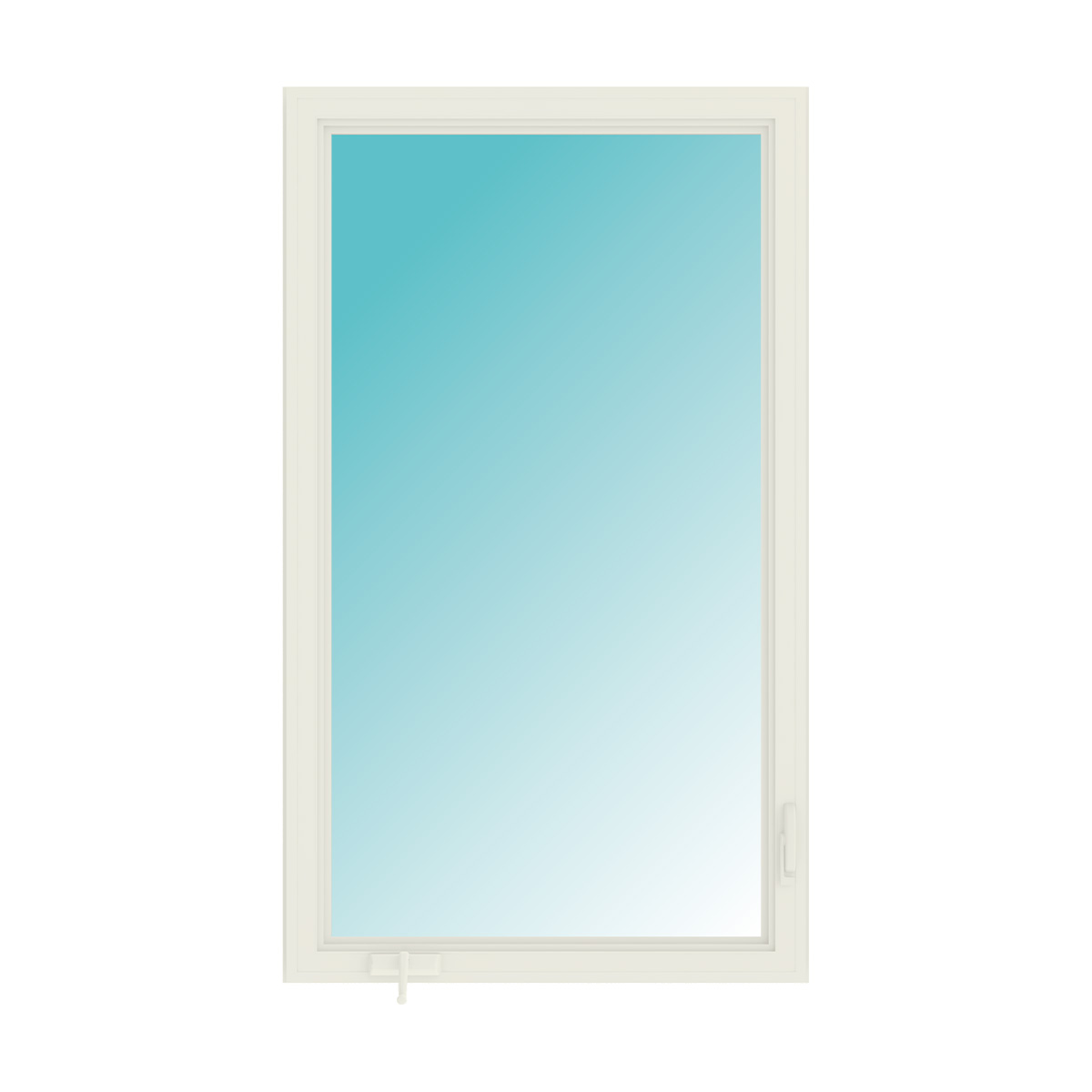

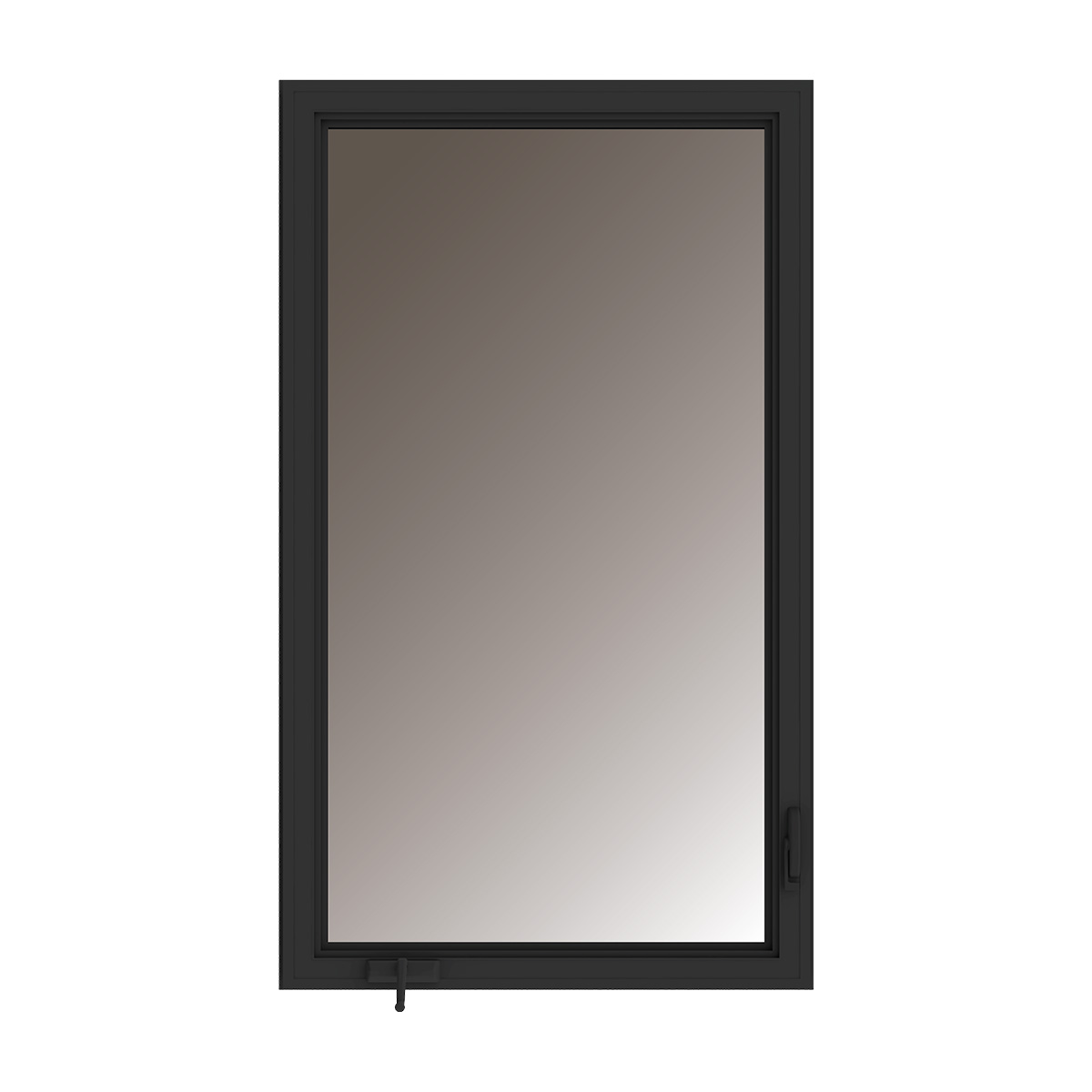

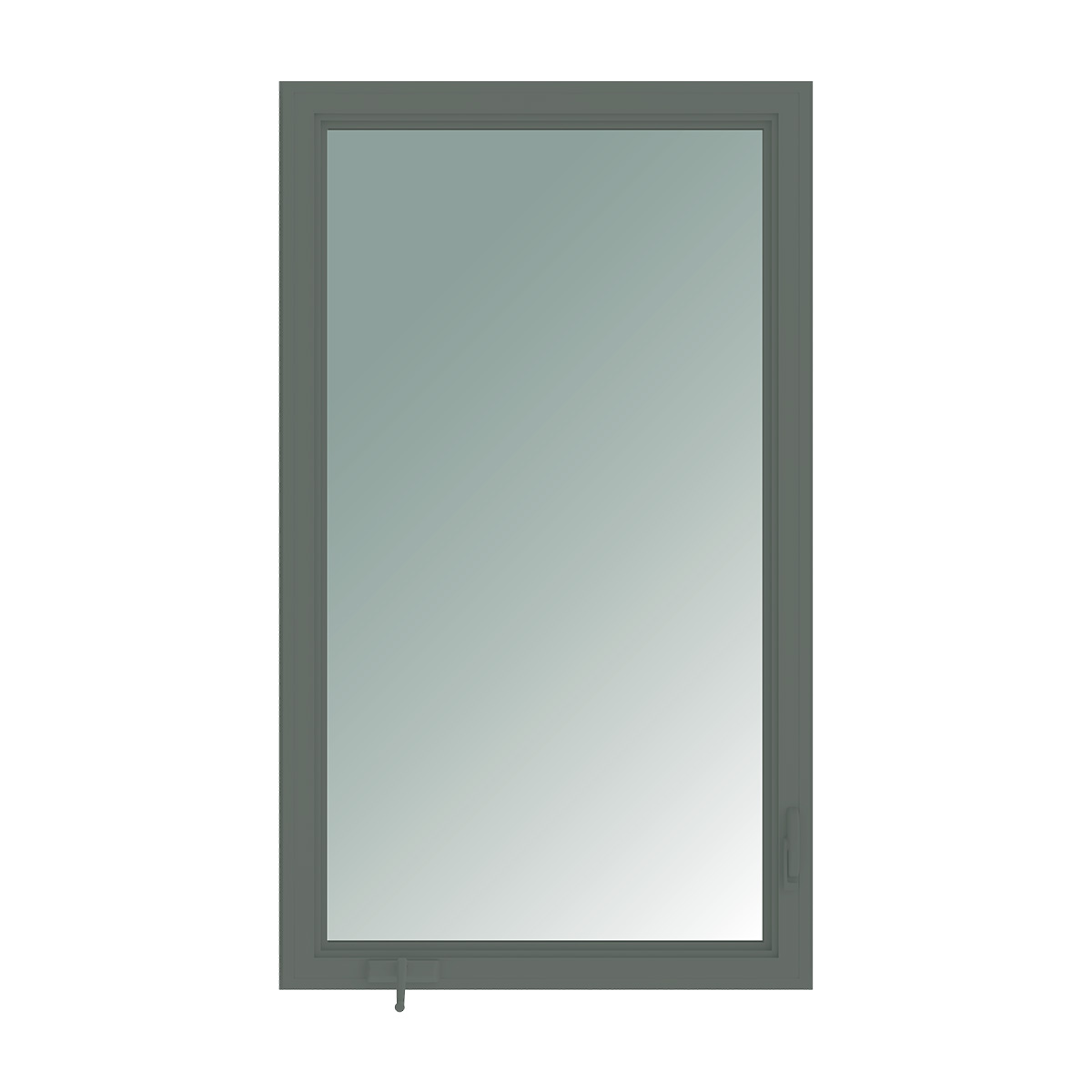

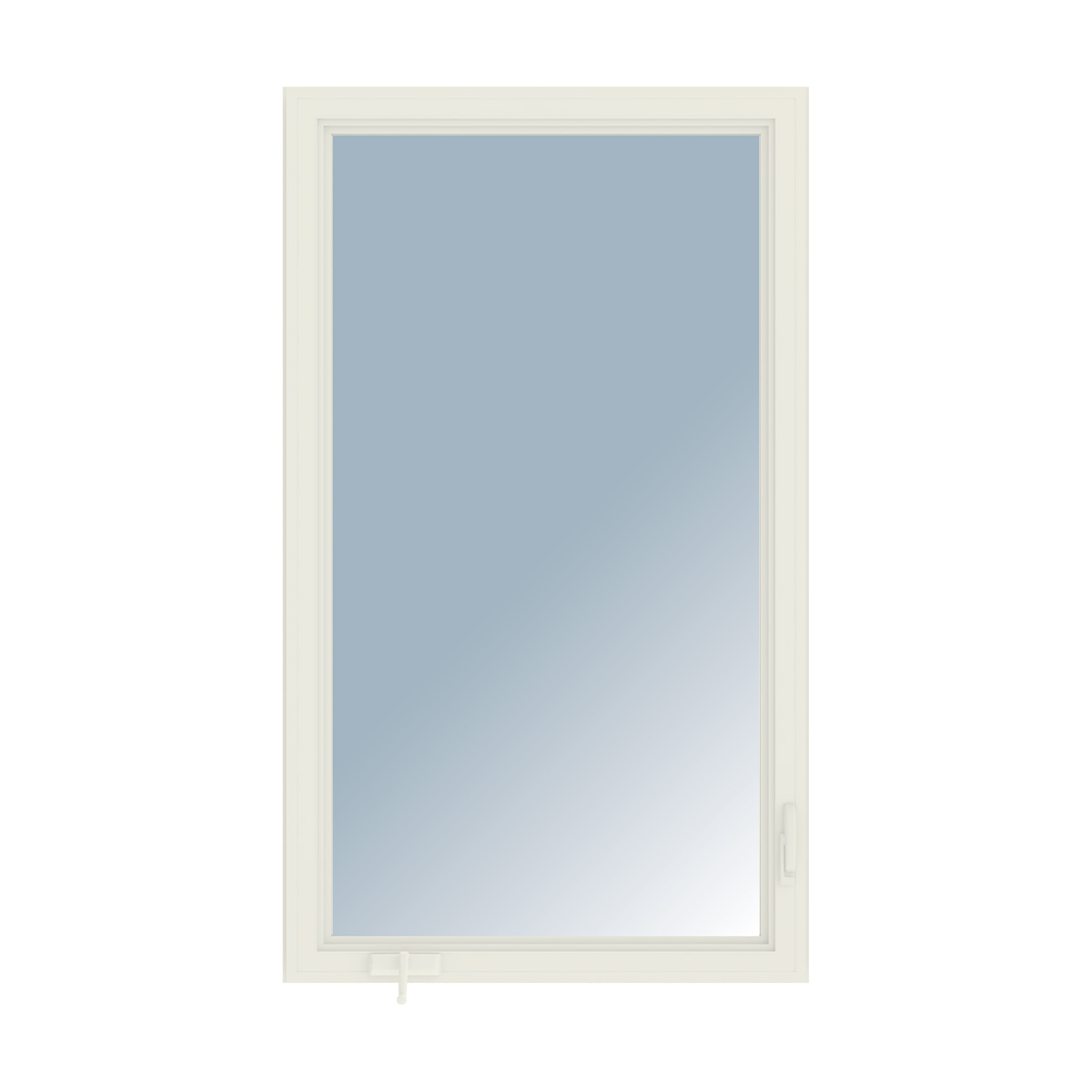

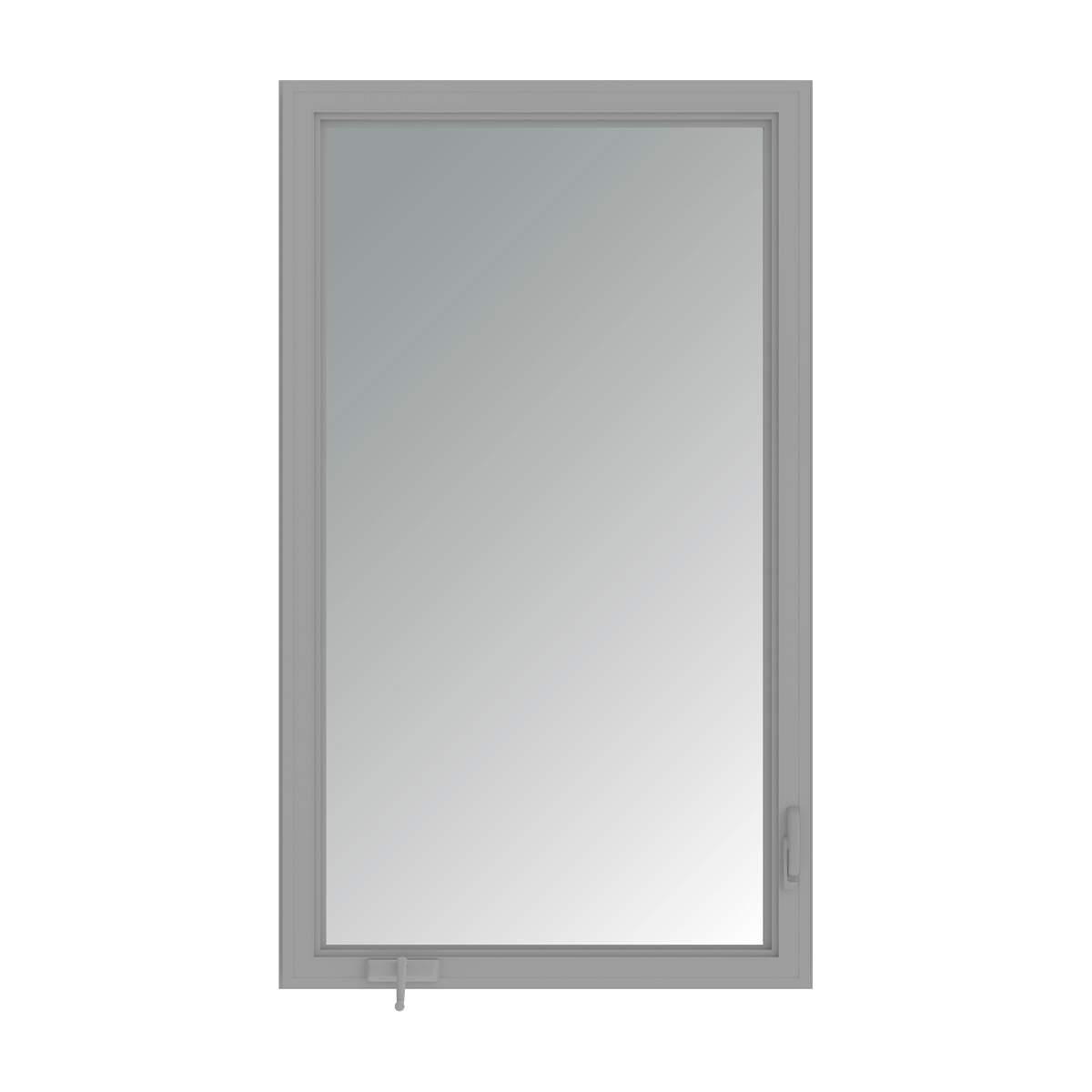

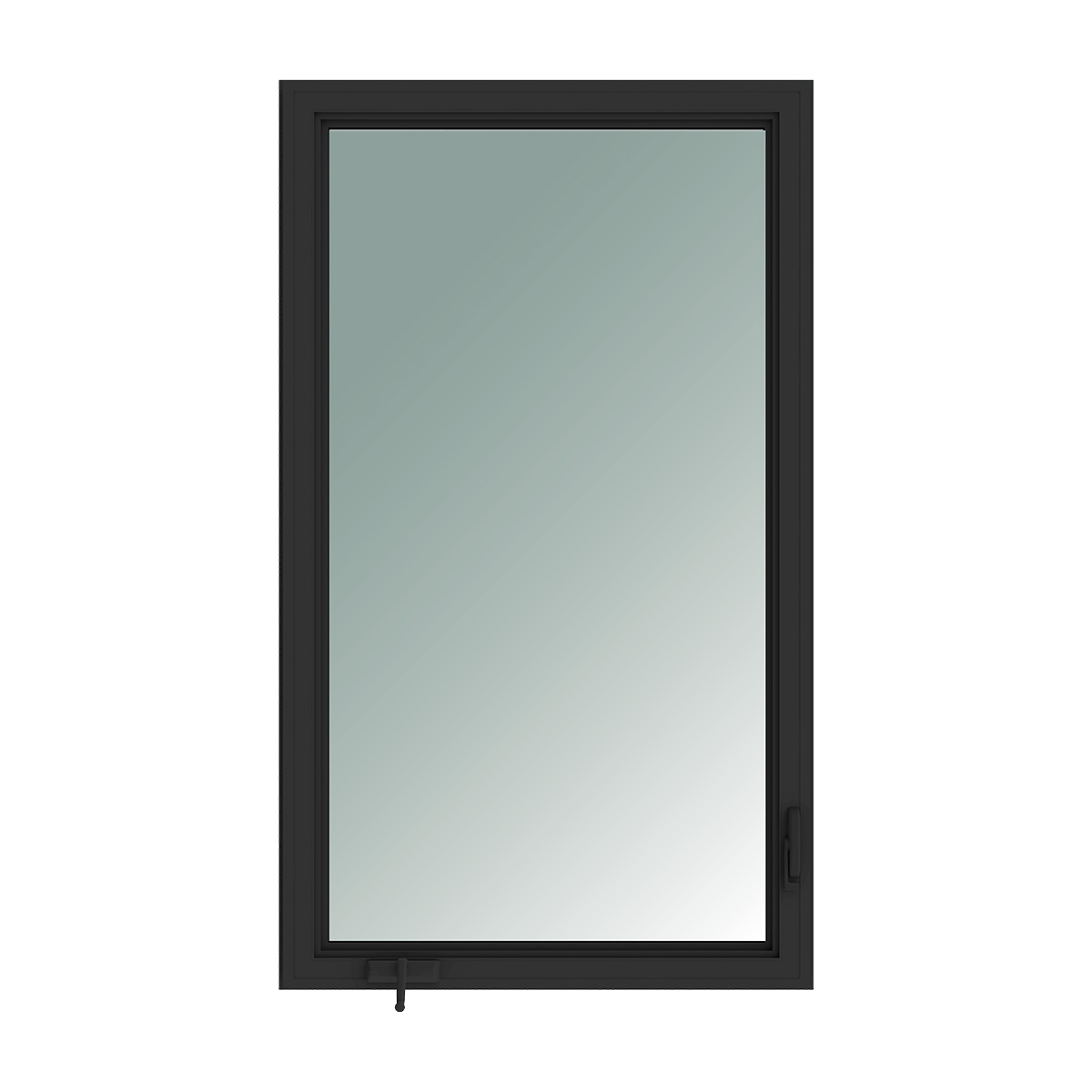

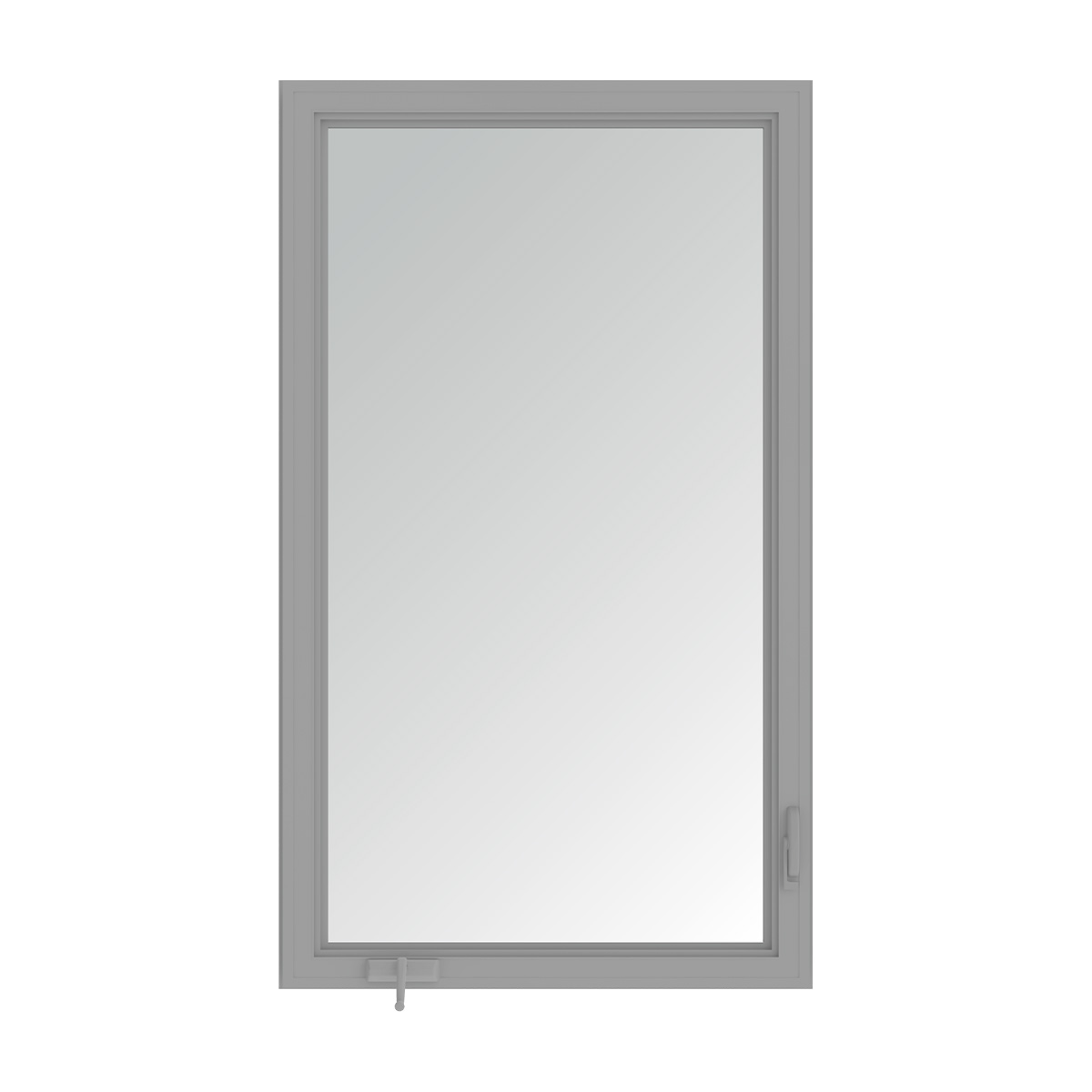

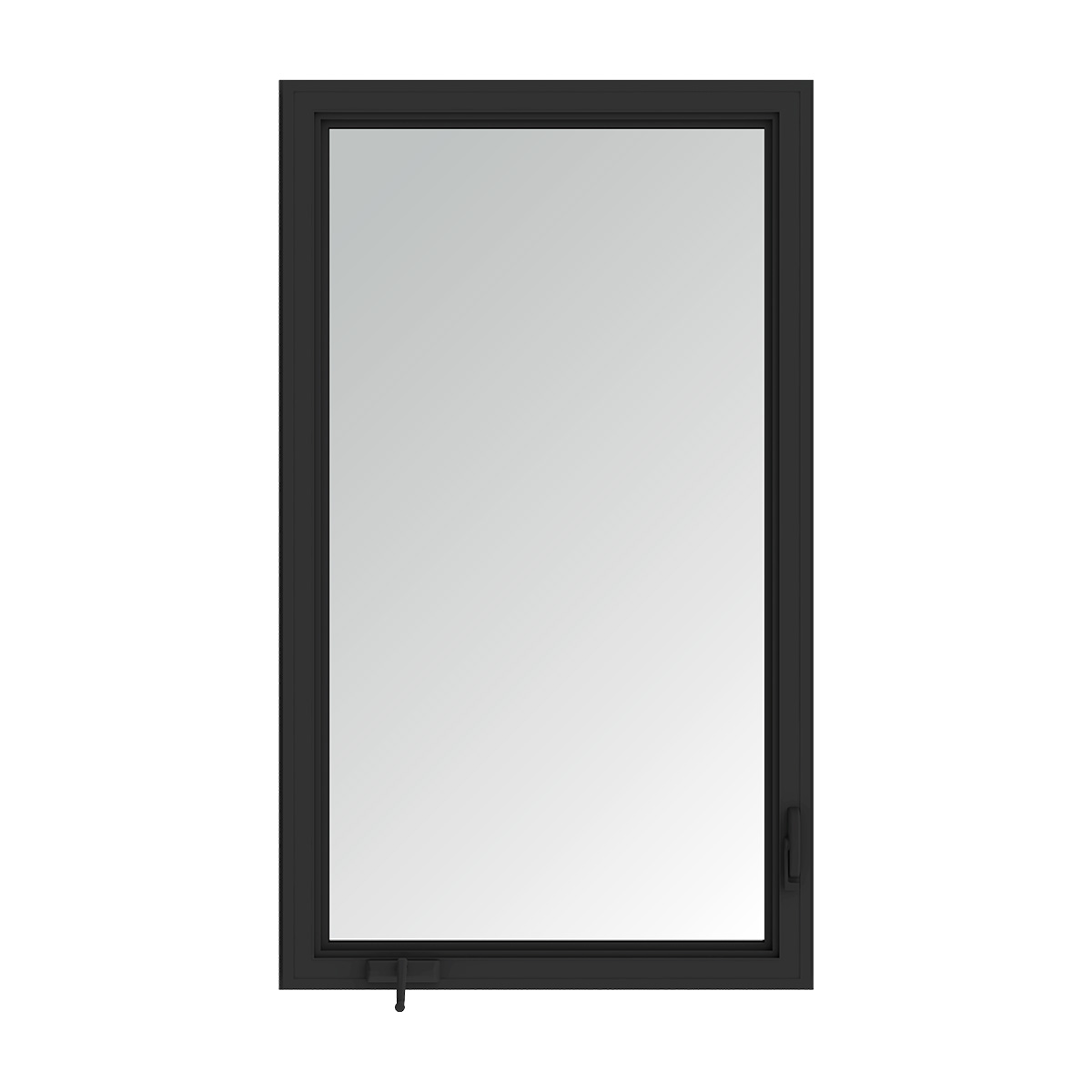

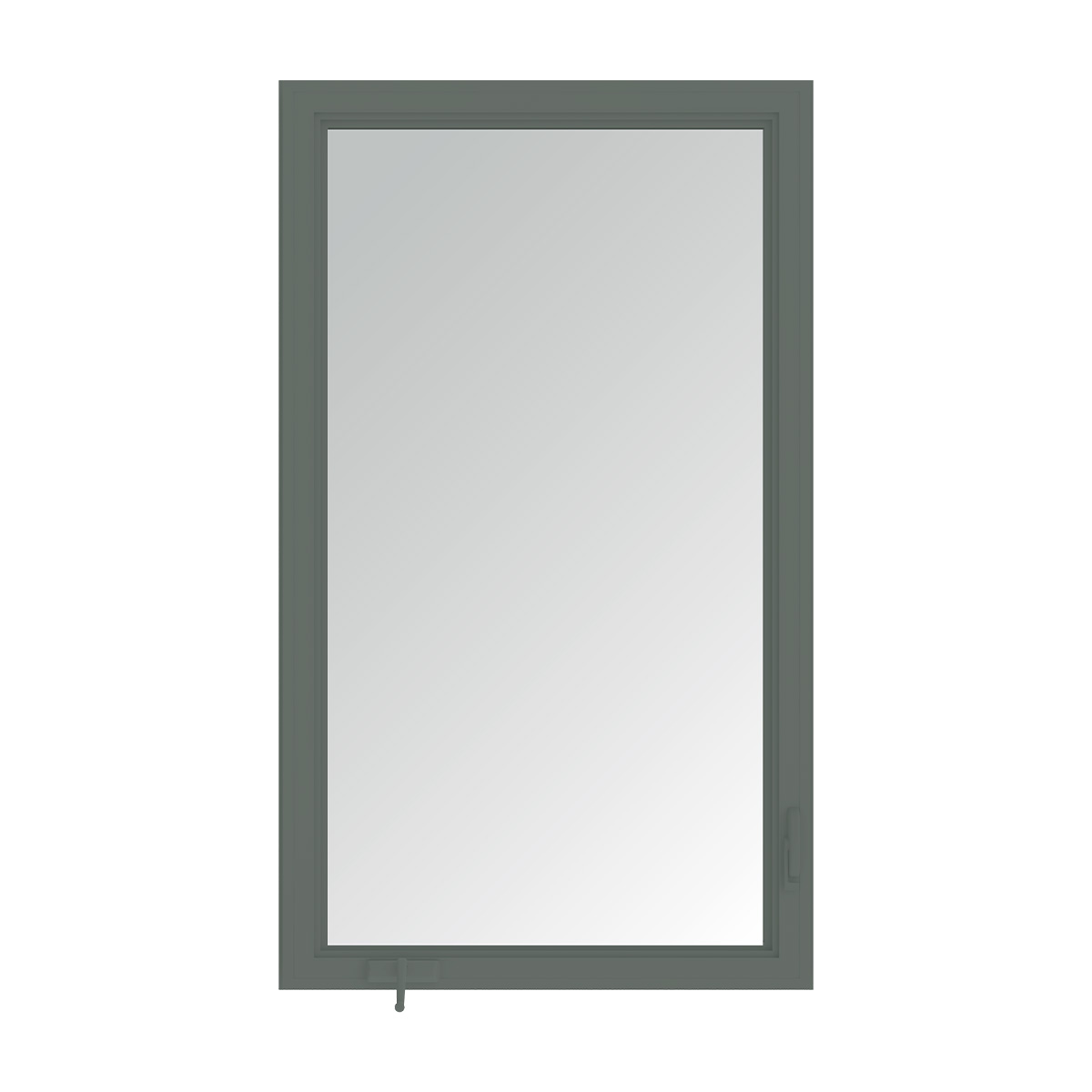

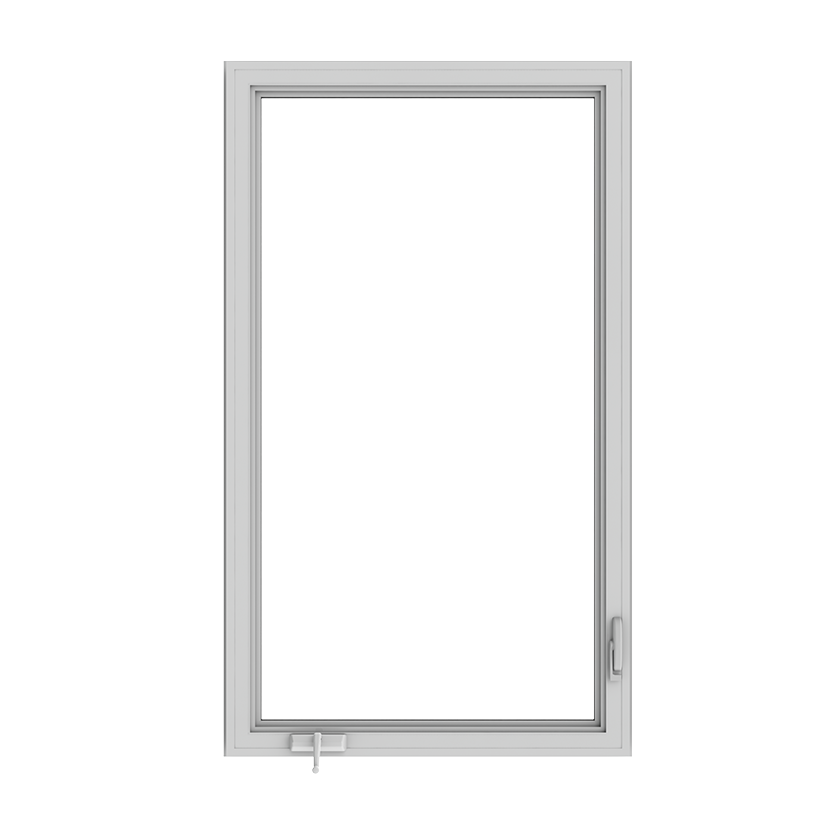

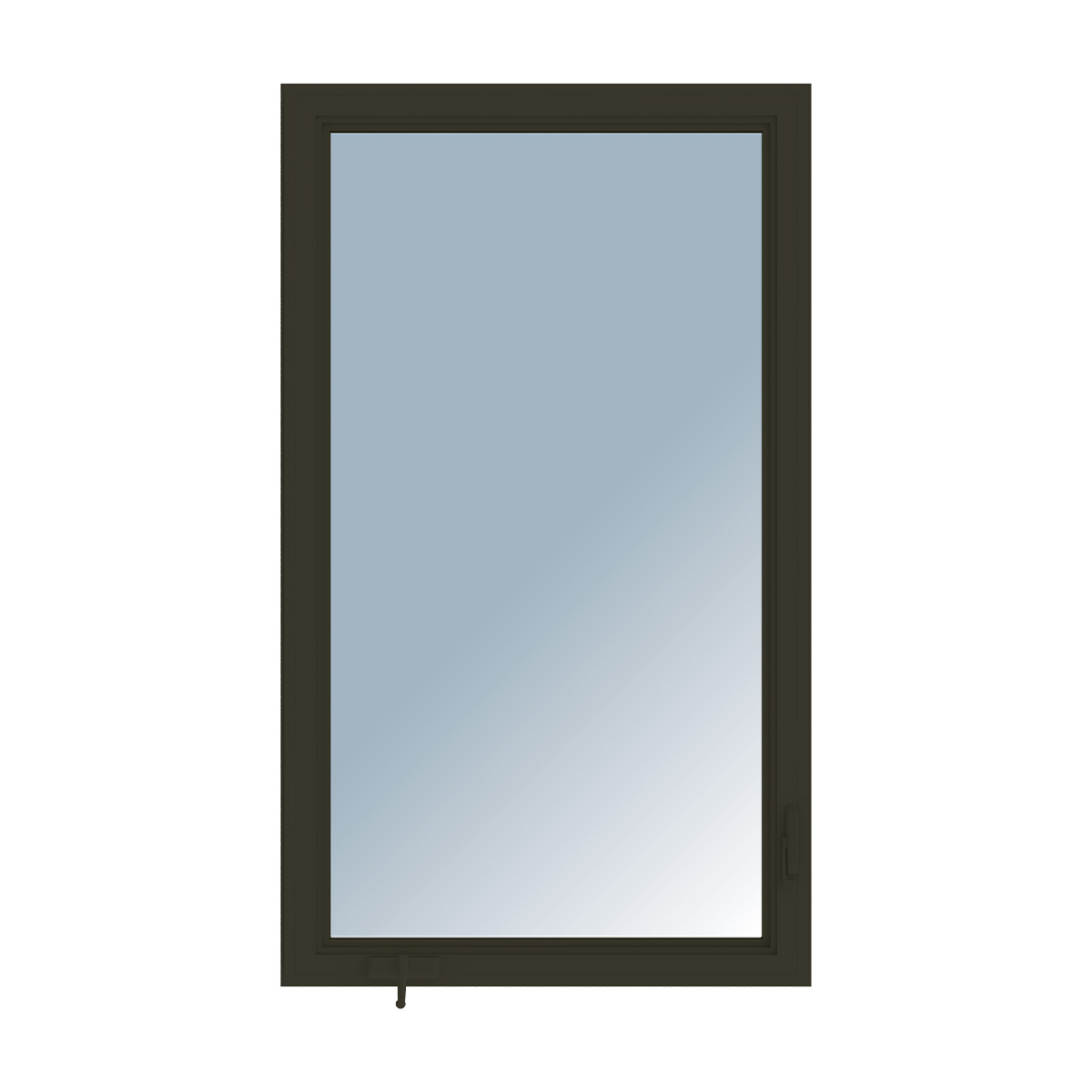

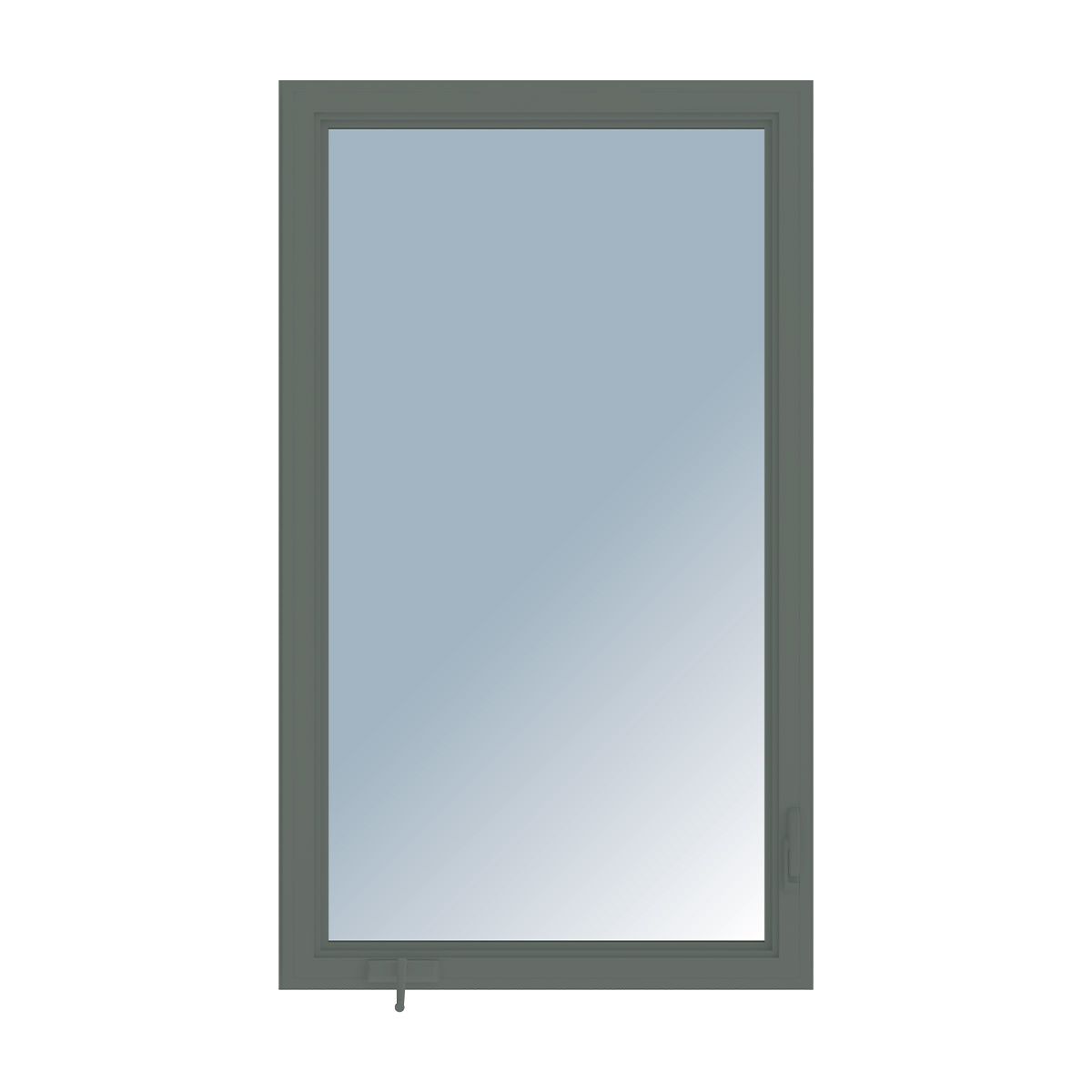

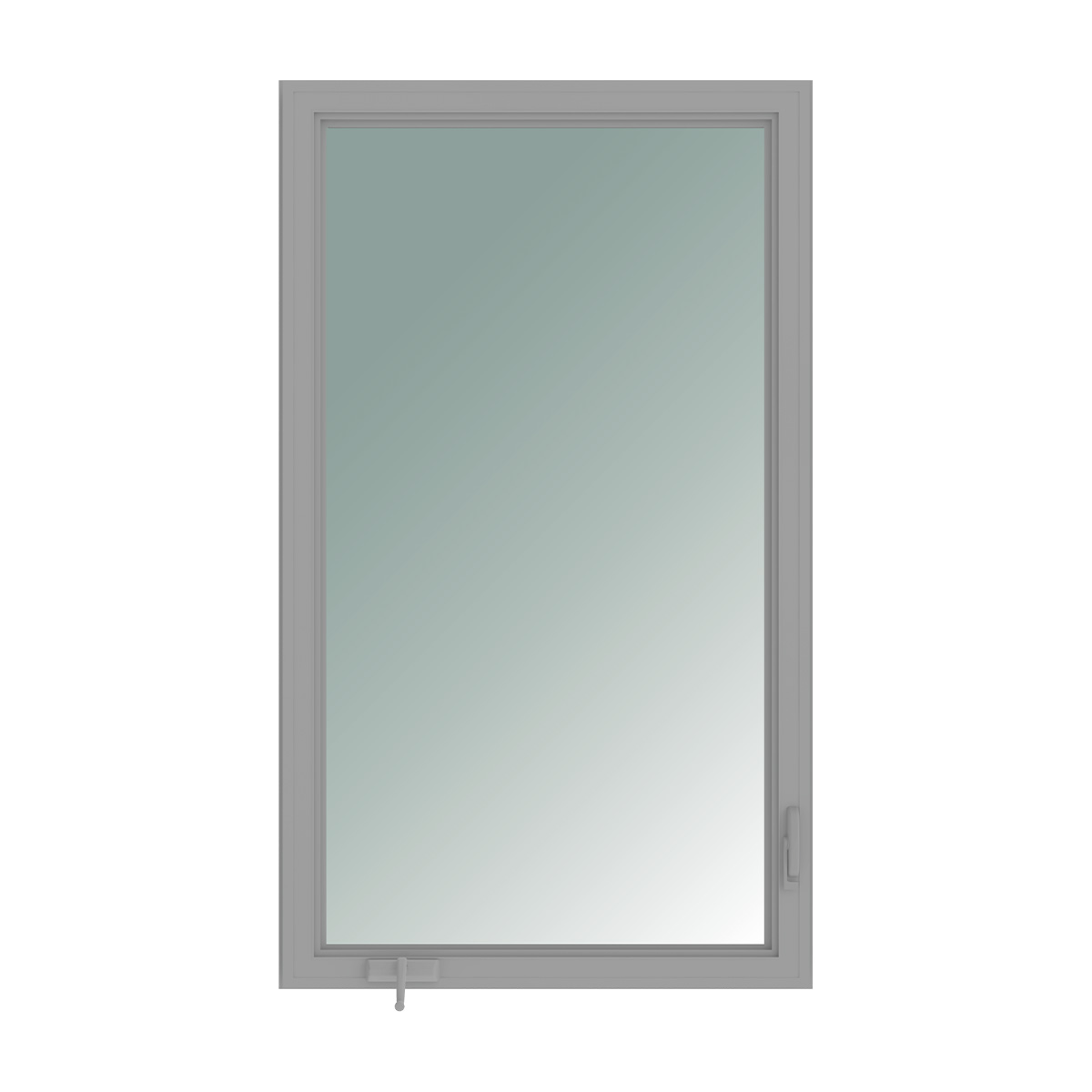

The ES-5000 is a 2 1/8” depth impact rated casement window featuring a rotating handle for an effortless operation. It is available in multiple glazing options providing flexibility in design.

Designed for the American and Latin American markets

FEATURES
Hurricane Resistant Hurricane Resistant

System Description

Large missile impact Frame depth: 2 1/8" Configurations: X, XX Designed for laminated and insulating glass Tested water infiltration: 13.5 psf Tested design load: +90/-90 psf Maximum size: 37" width x 74 1/4" height 74" width x 74 1/4" height U-value: 0.70 - IGU (5/32" SB70 Clear + AS + 1/8" Clear + 0.090 PVB + 5/32" Clear) Insulating laminated glass: 5/32" + 1/4" AS + 1/8" + 0.090 Interlayer + 5/32" Laminated glass: 1/8" + 0.090 Interlayer + 1/8" , 5/32" + 0.090 Interlayer + 1/8" SHGC: 0.22 on clear insulating laminated SB 70

Features

Single arm operator and multi-point lock Heavy duty stainless steel four bar hinge Flange frame for masonry and wood construction or flush frame for concrete openings Screens available in aluminum frame and fiberglass mesh Surface applied OG or flat muntins Saflex PVB, Kuraray PVB, Vanceva Storm and SentryGlas Plus interlayer options

Related Documents

Datasheet Installation Guide Brochure Miami Dade County
Notice of Approval
NFRC Certificate
