DOORS

ES-BF5010T

TYPE
Sliding
BRAND
Prestige®

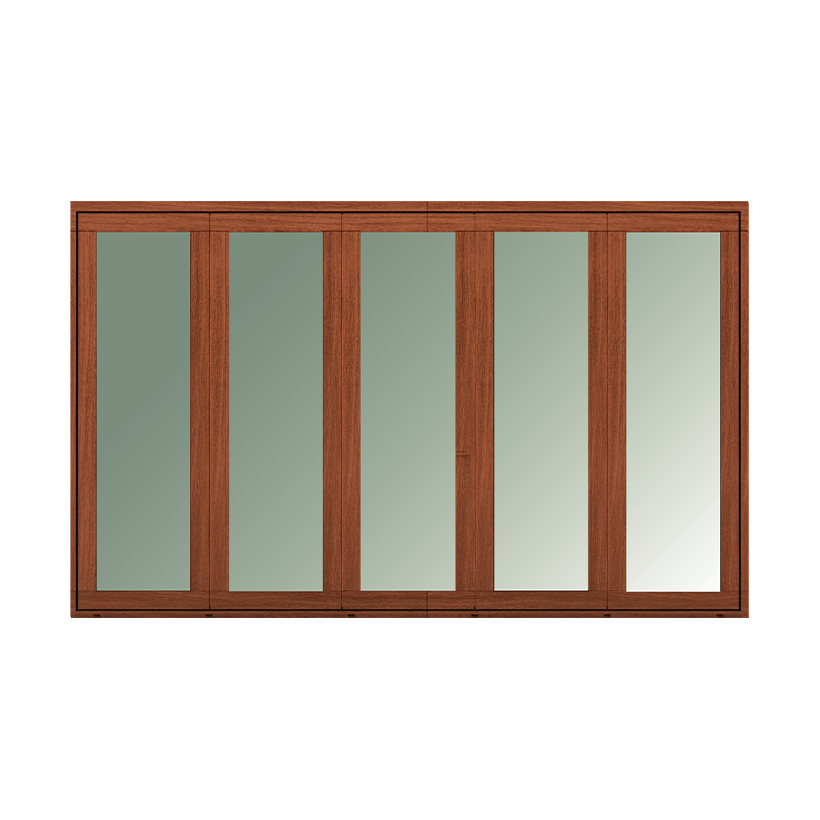

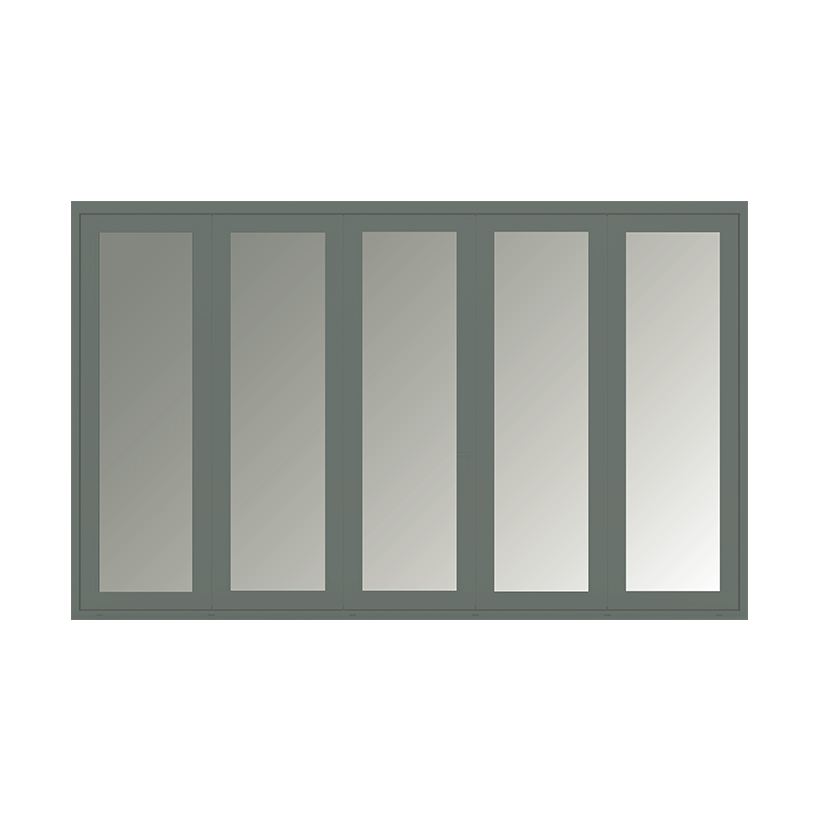

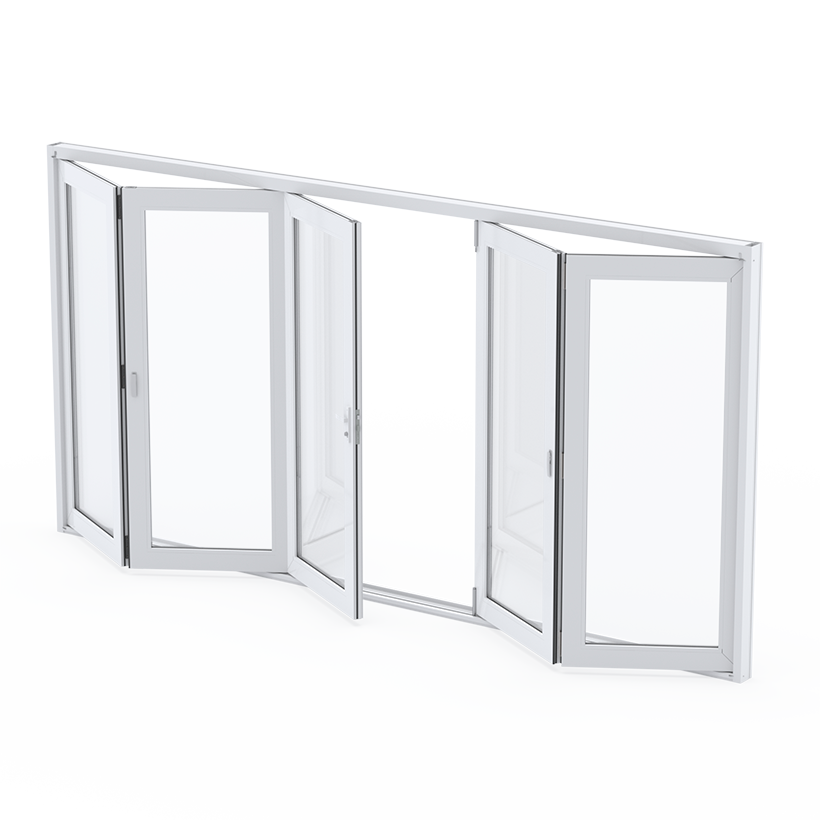

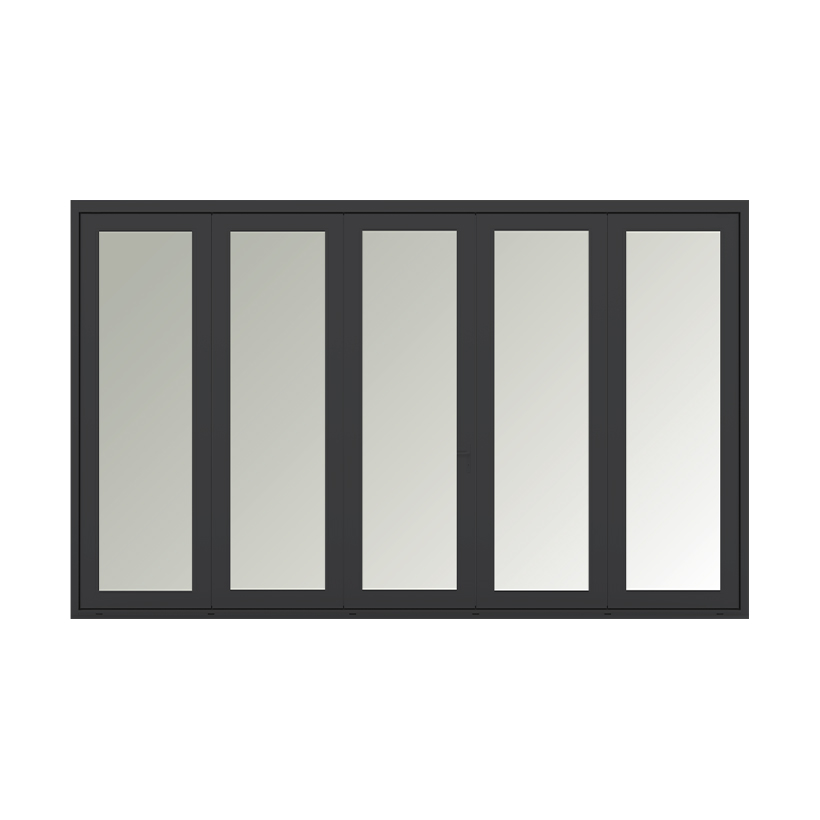

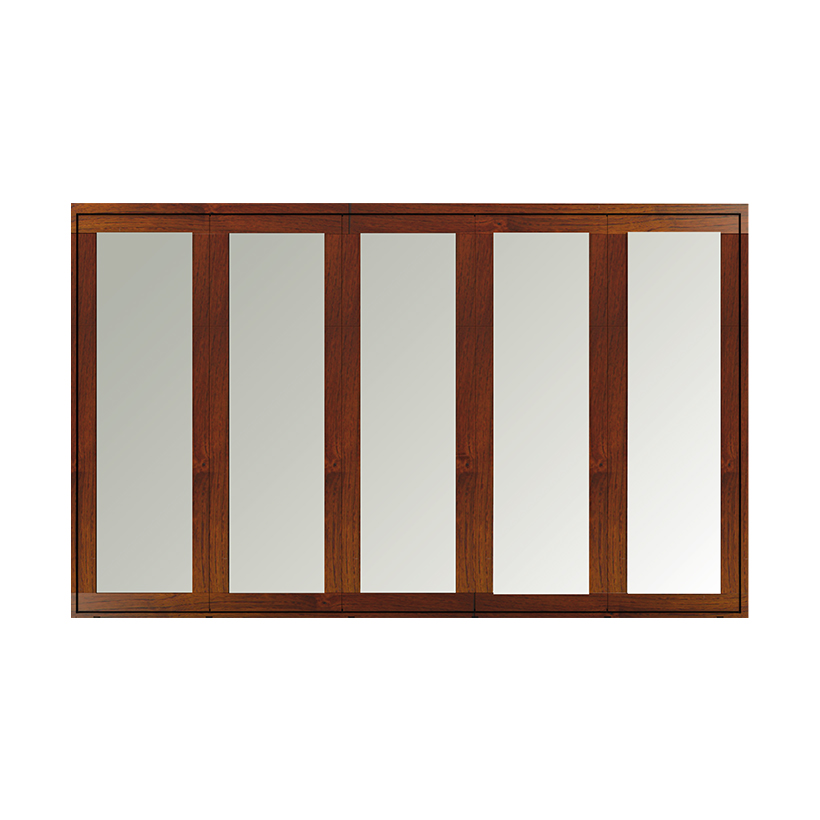

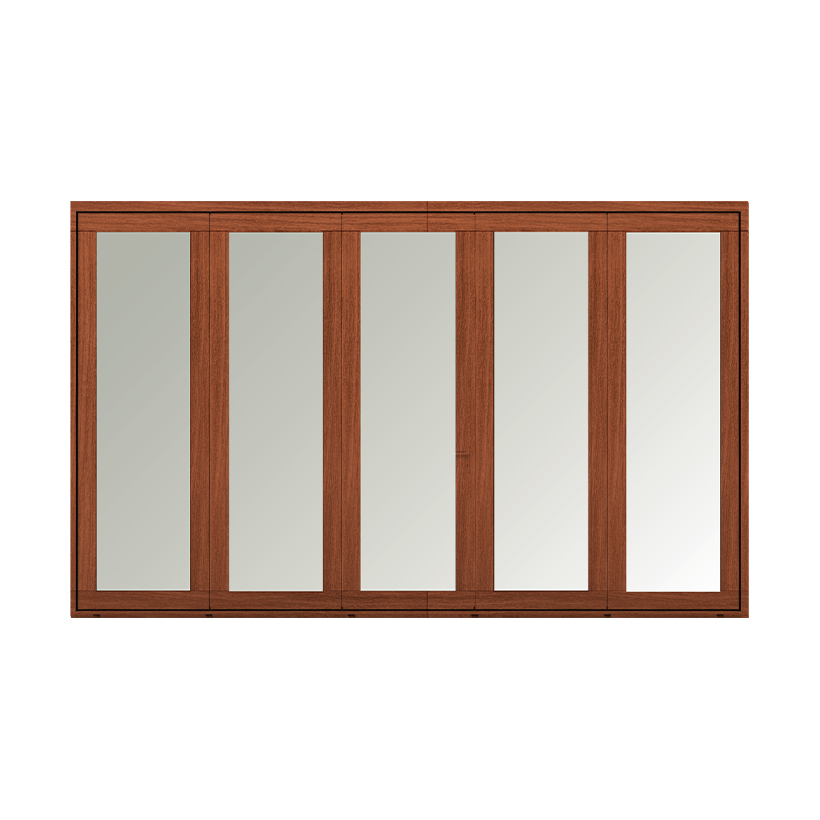

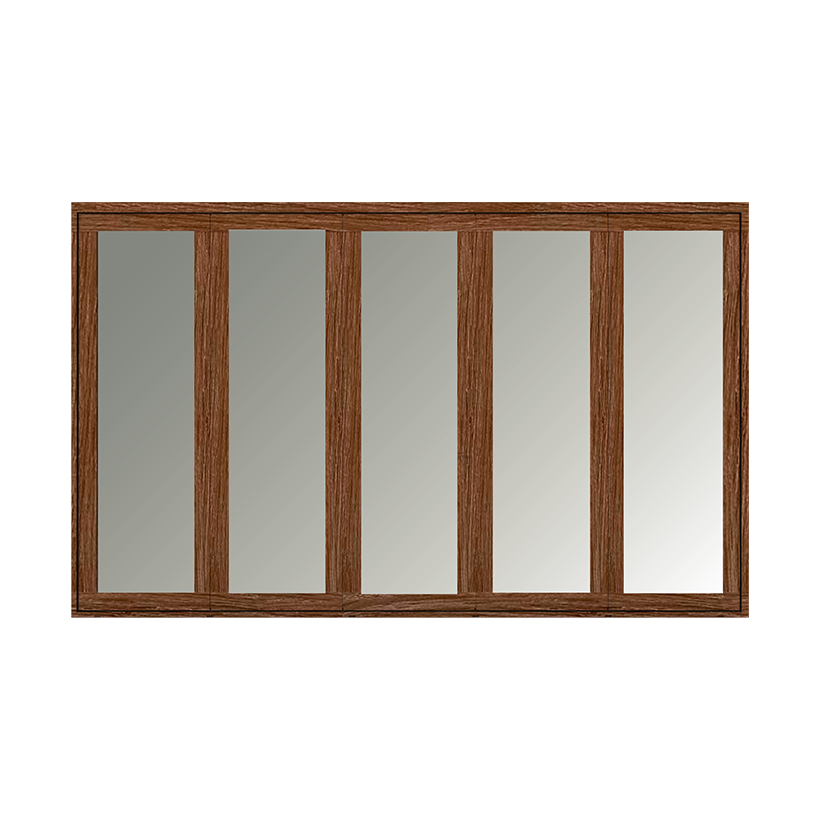

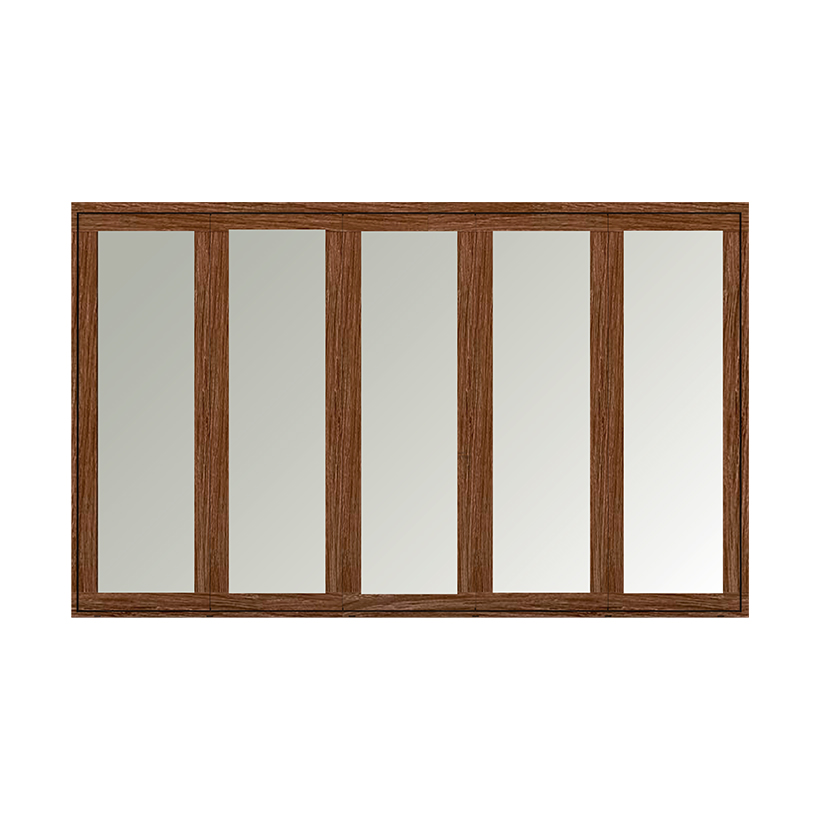

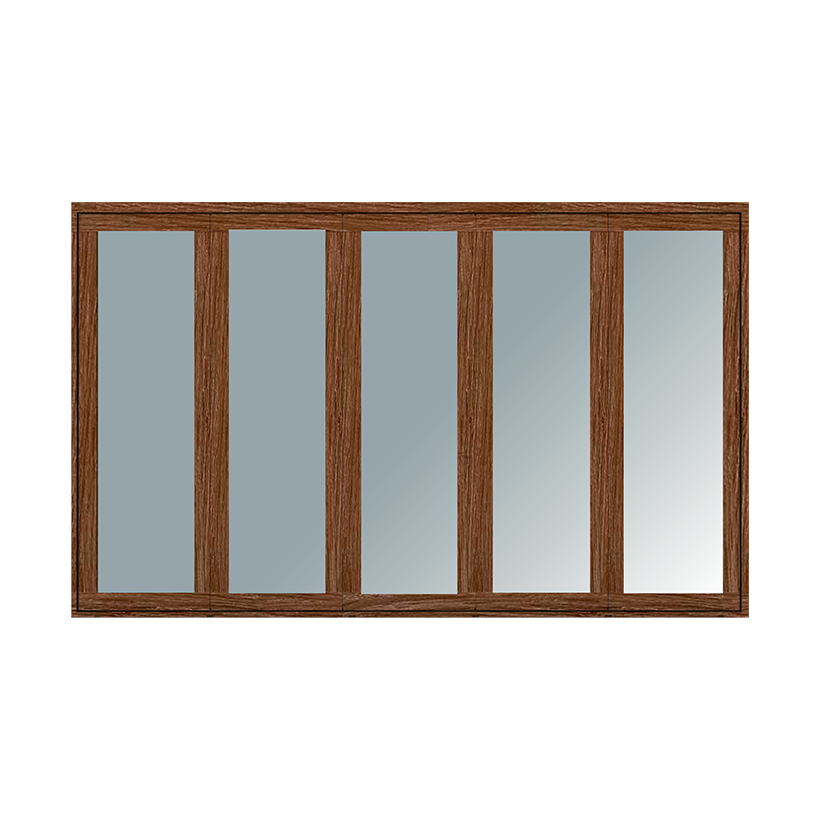

The ES-BF5010T bifold door allows you to join two spaces effortlessly. The system provides a completely clear opening with a maximum of 120” in height.

Designed for the USA market

FEATURES
Hurricane Resistant Hurricane Resistant Thermally Broken Thermally Broken

System Description

Multiple 42” x 120” panels. Designed for Insulating laminated and laminated glass. Maximum 8 panels each way. Frame depth: 5”. Threshold height: 2 1/2”. Large and small missile impact. Design load: +95/-95 psf SMI and LMI. Water infiltration: 15 psf. U-value: 0.44. 2” threshold for maximum water infiltration protection.

Features

Thermally broken frames. ADA sill option.

Related Documents

Datasheet Installation Guide Brochure NFRC Certificate
