WINDOWS

ES-P252

TYPE
Project
BRAND
Prestige®

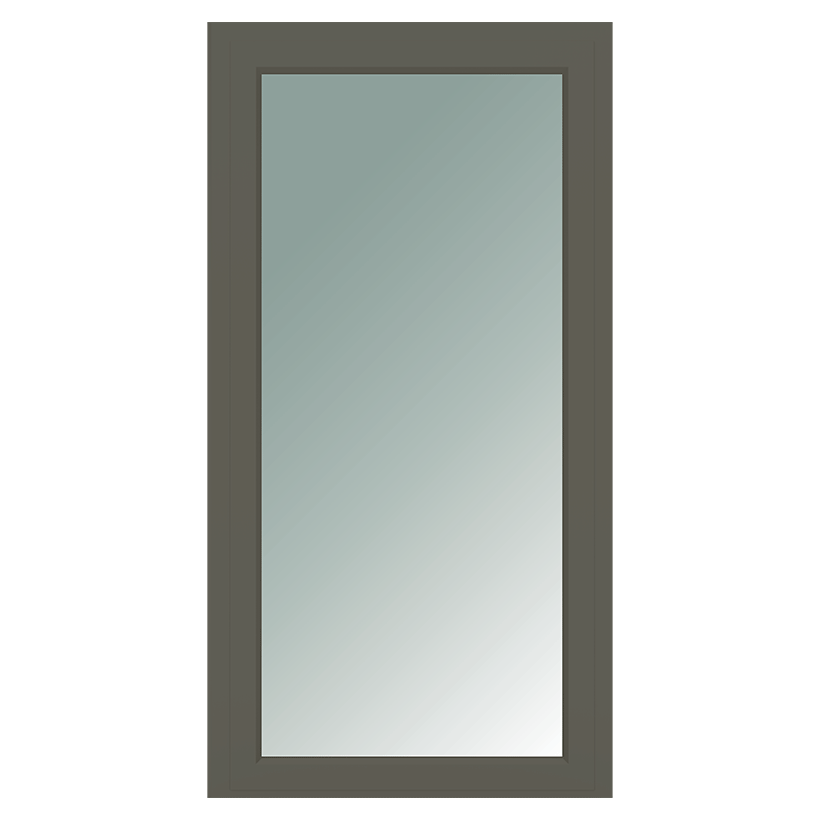

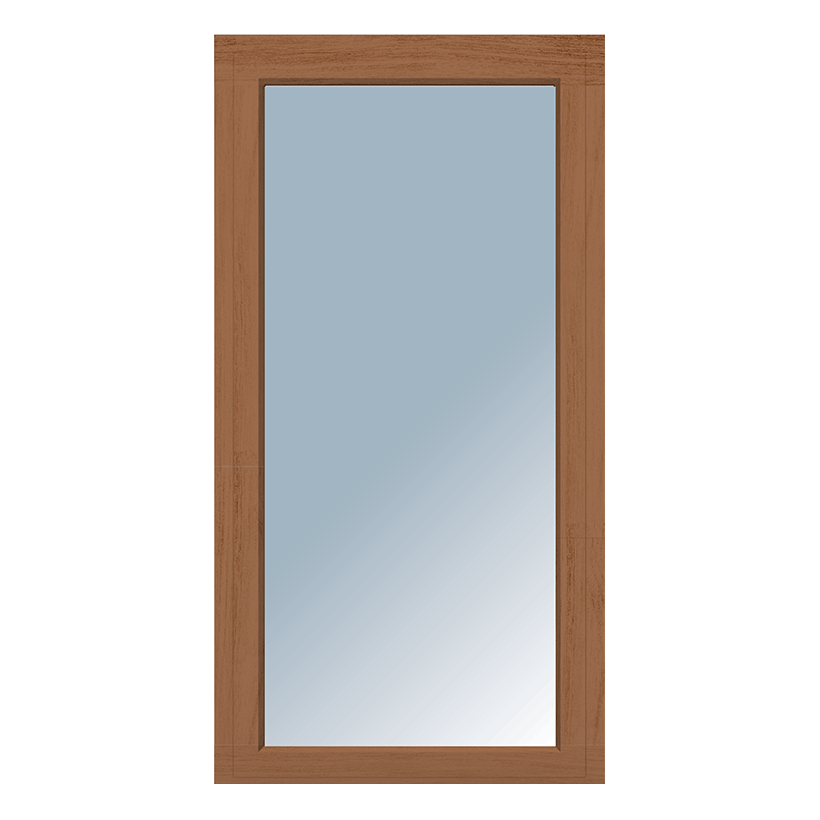

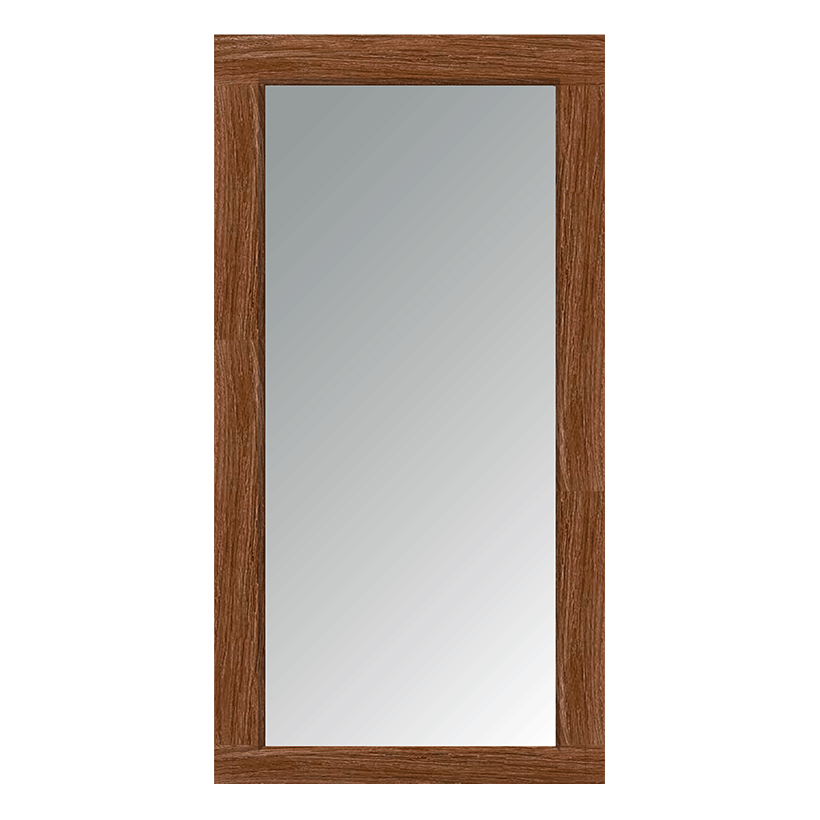

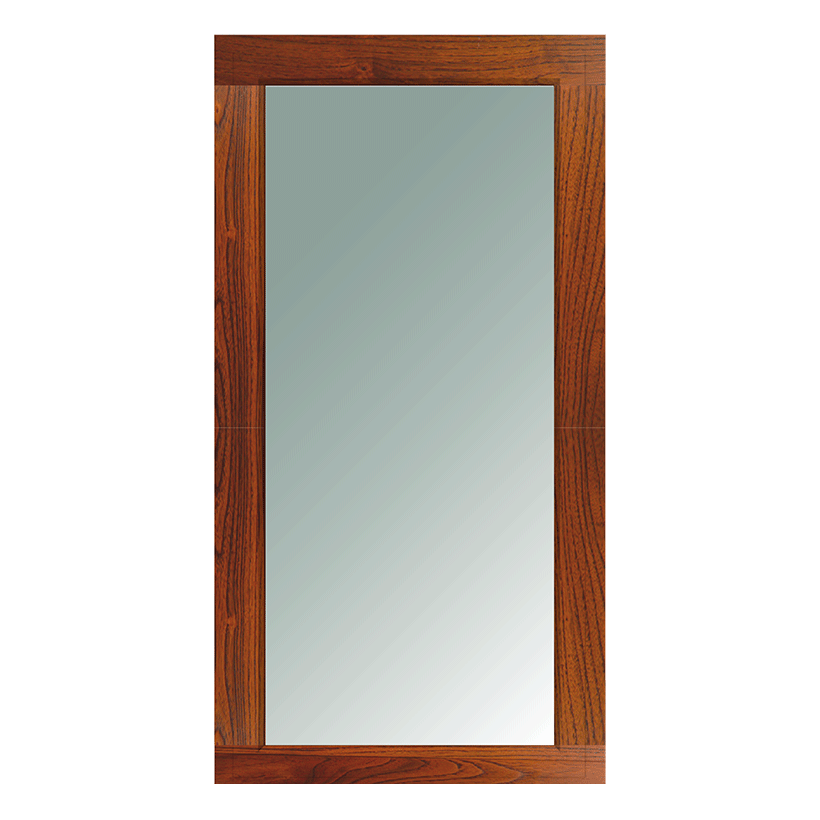

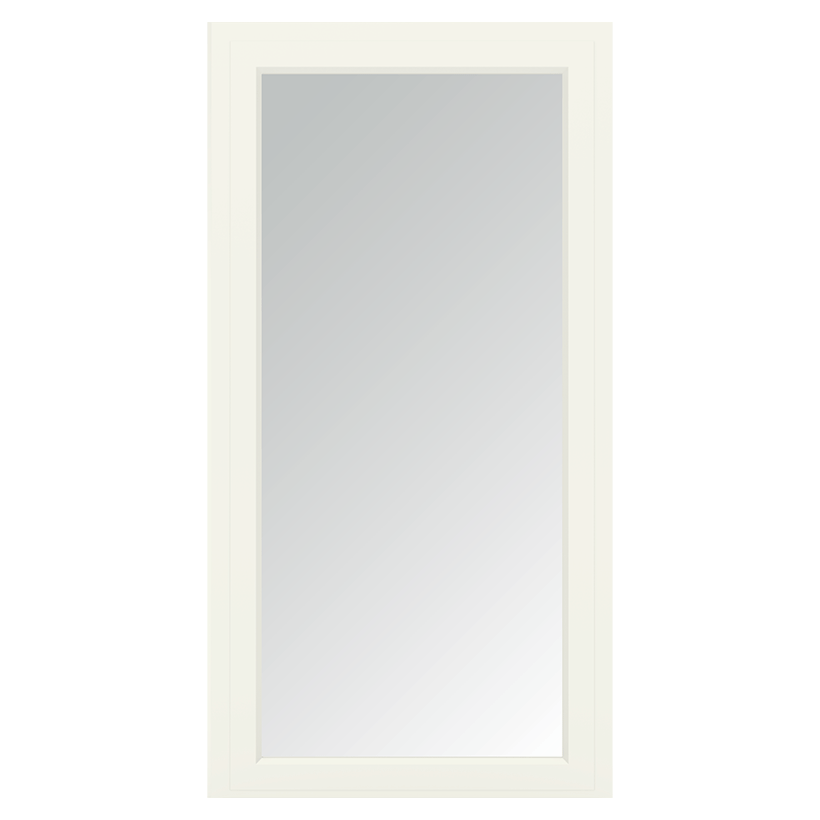

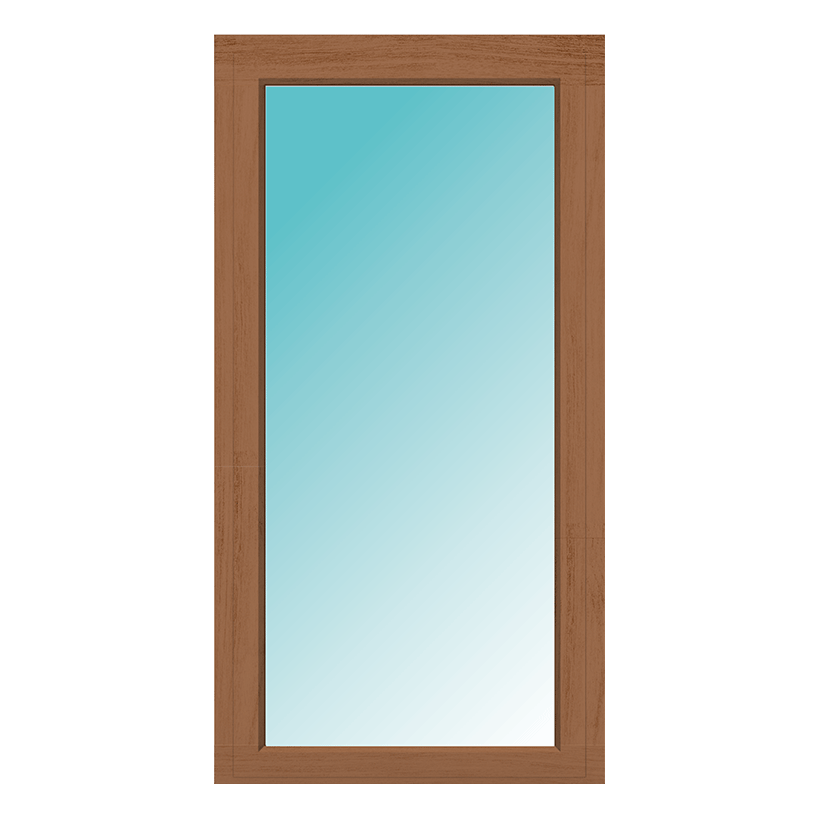

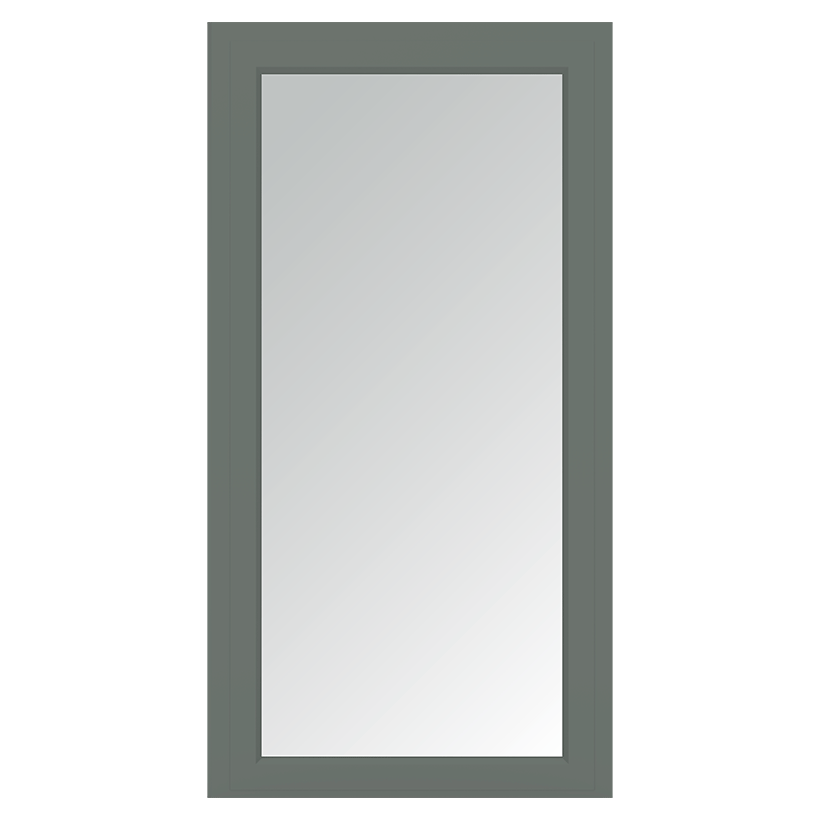

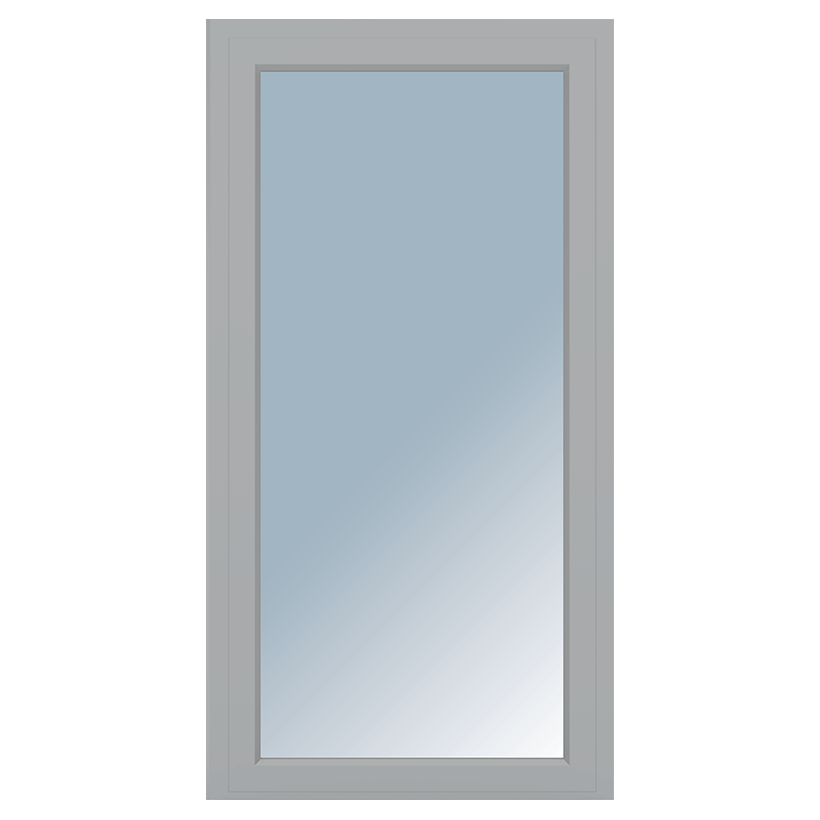

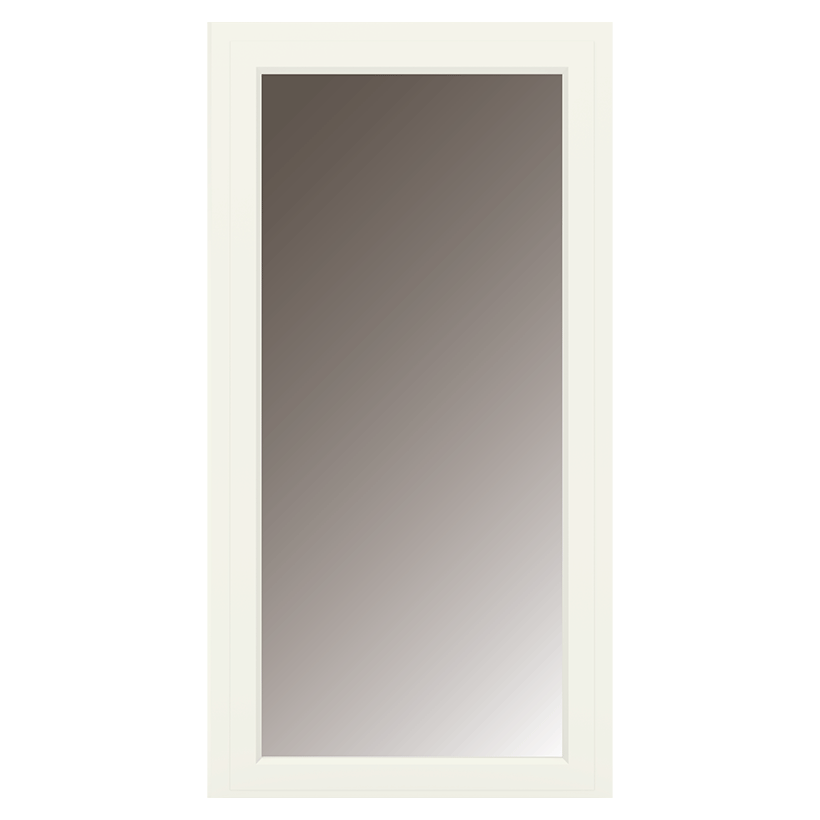

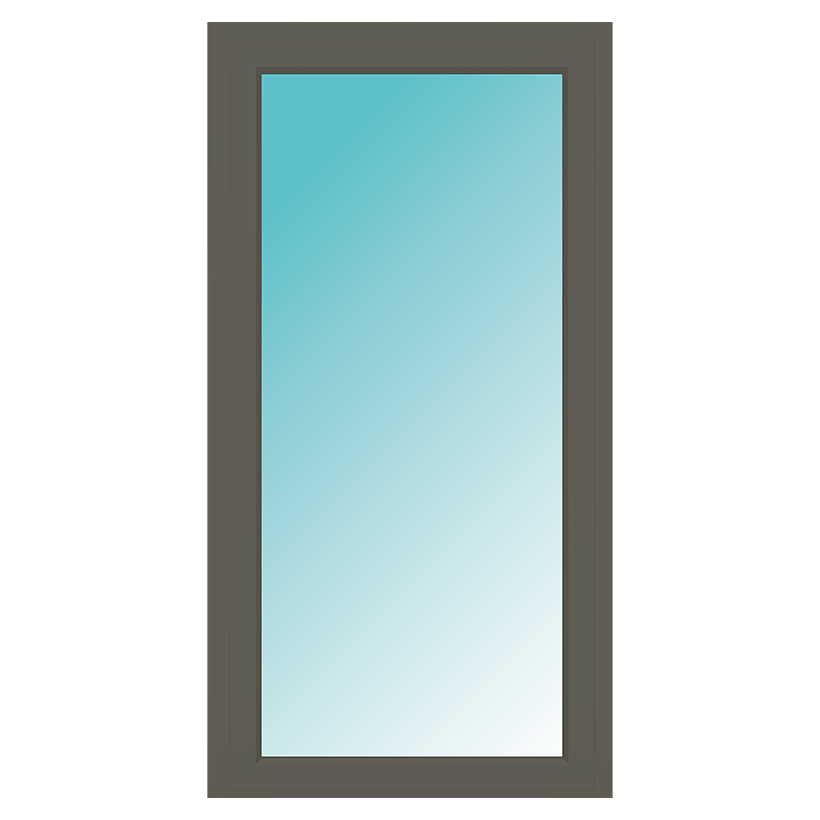

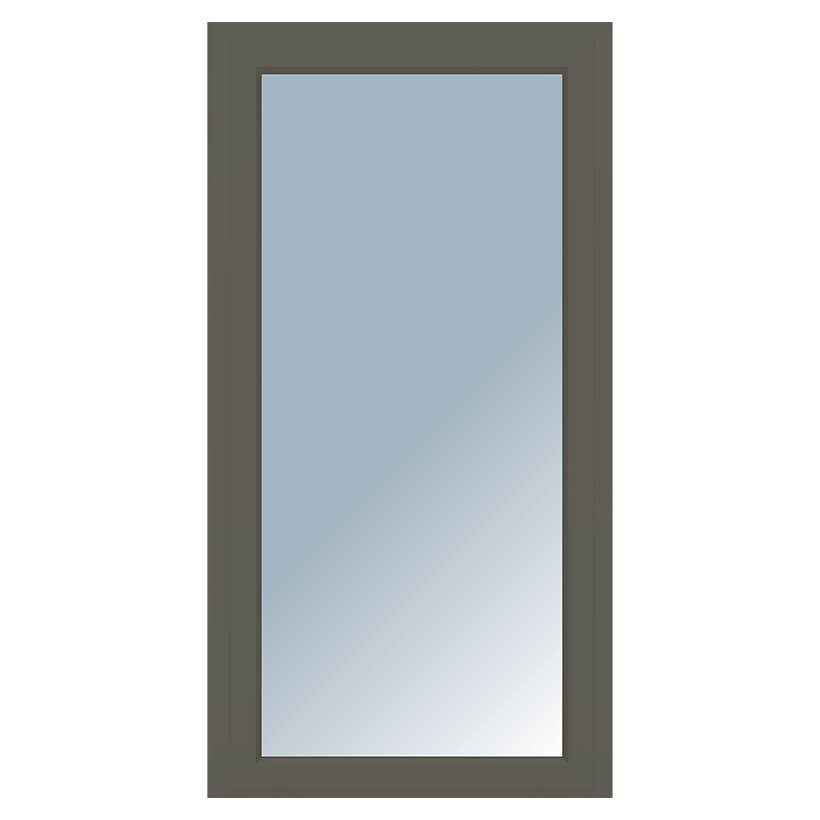

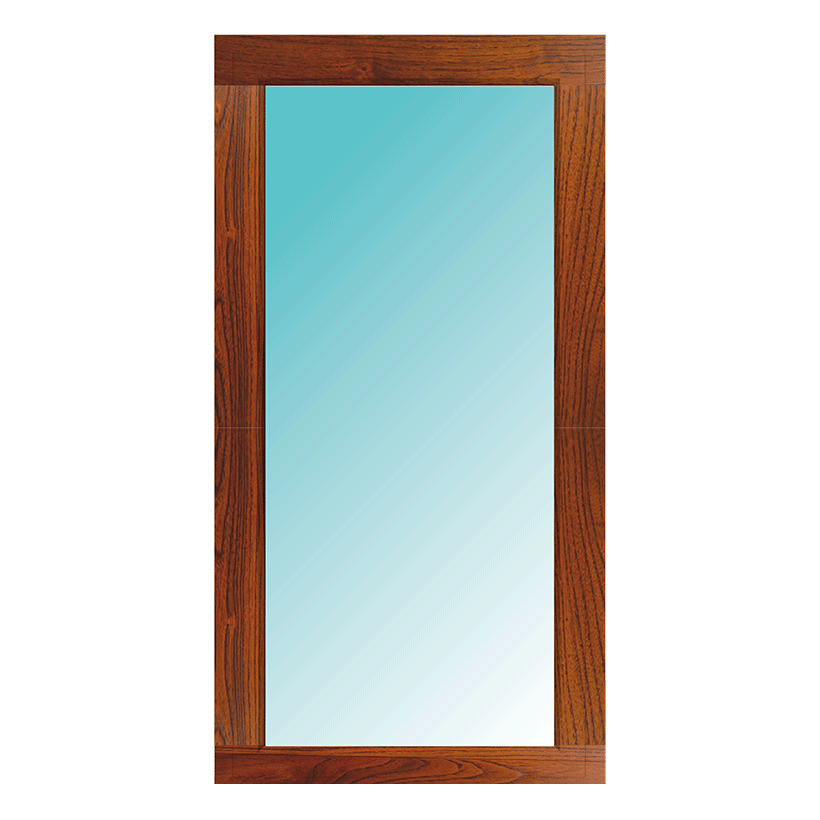

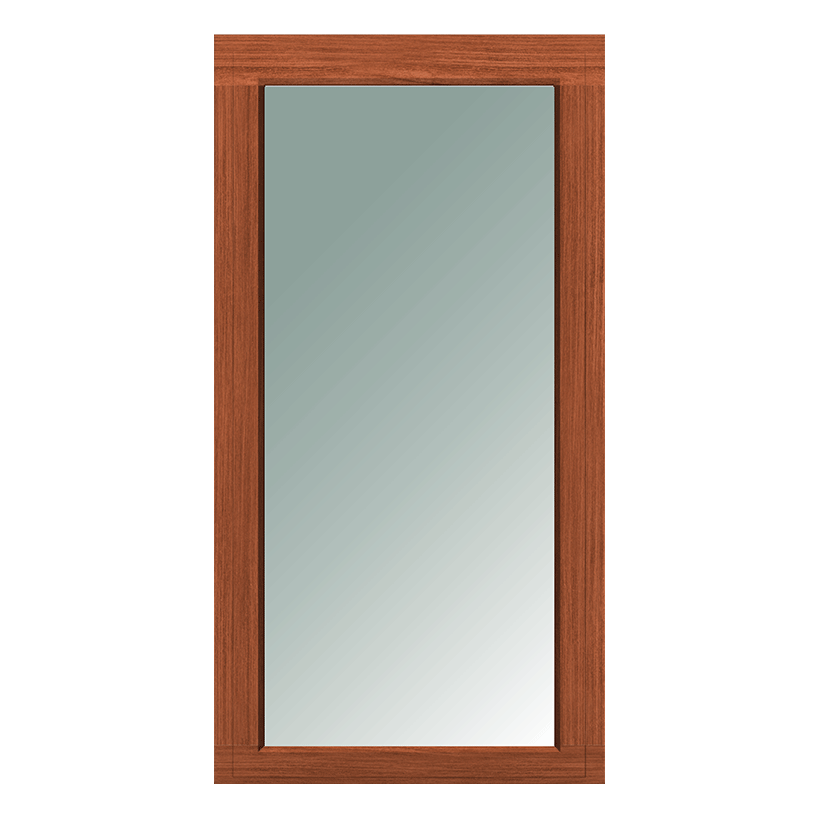

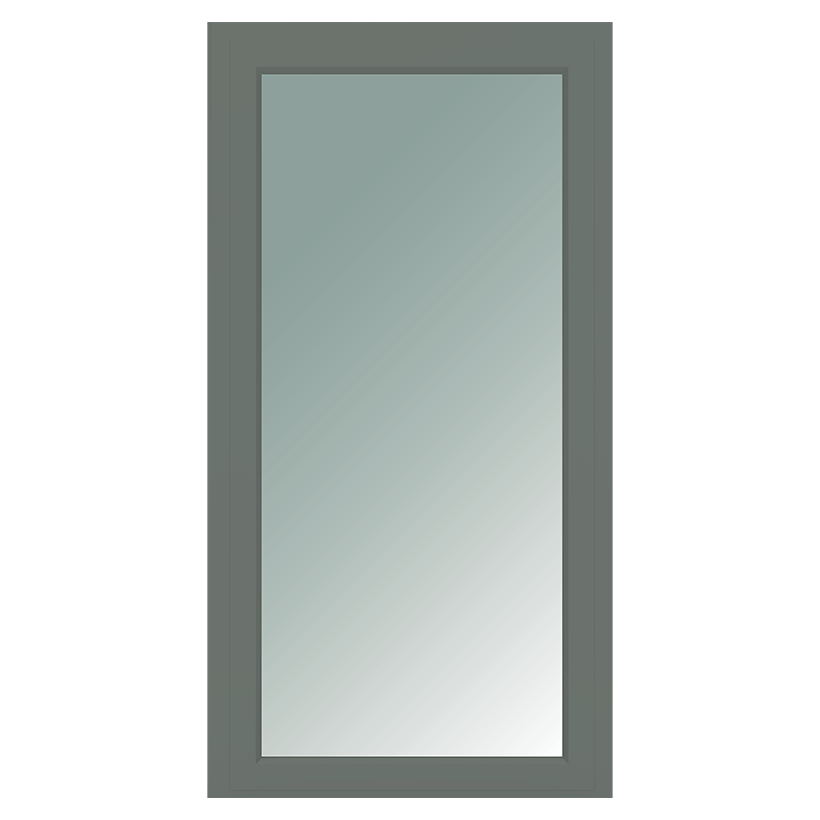

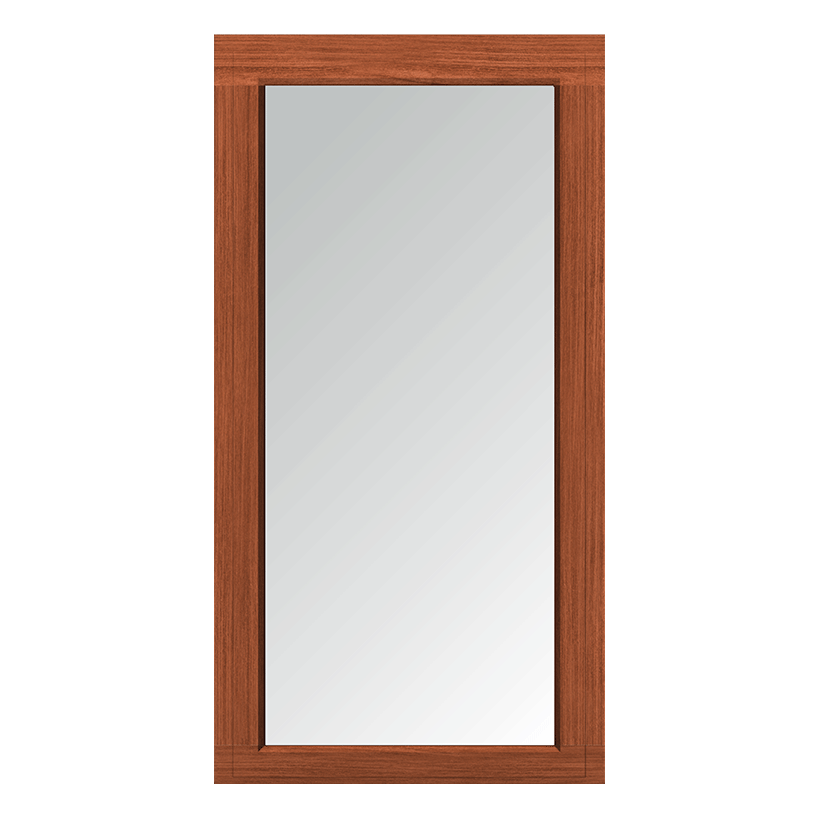

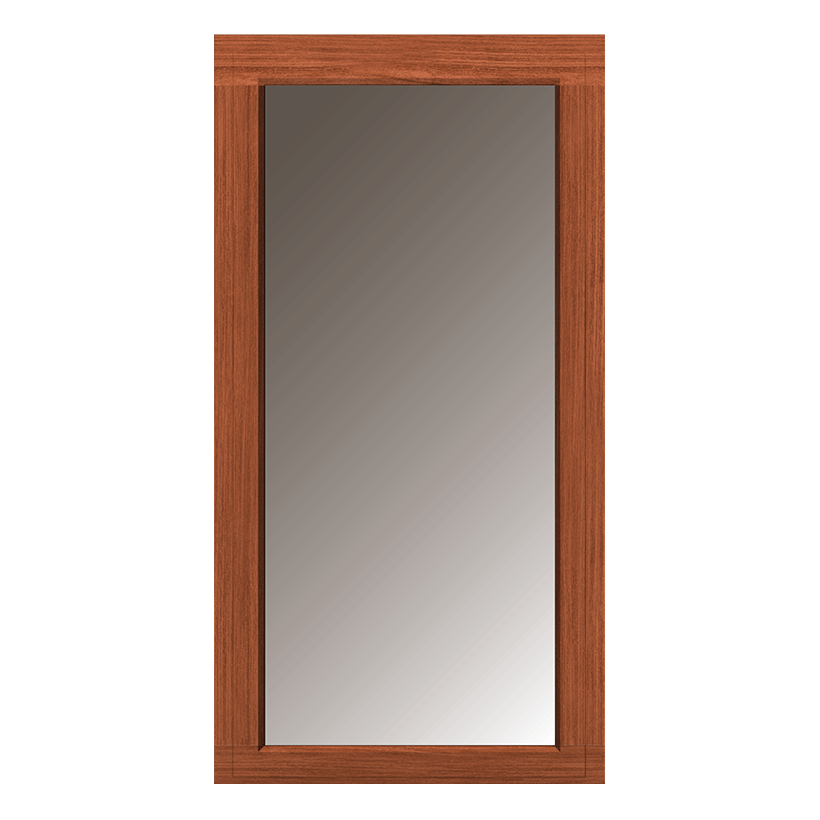

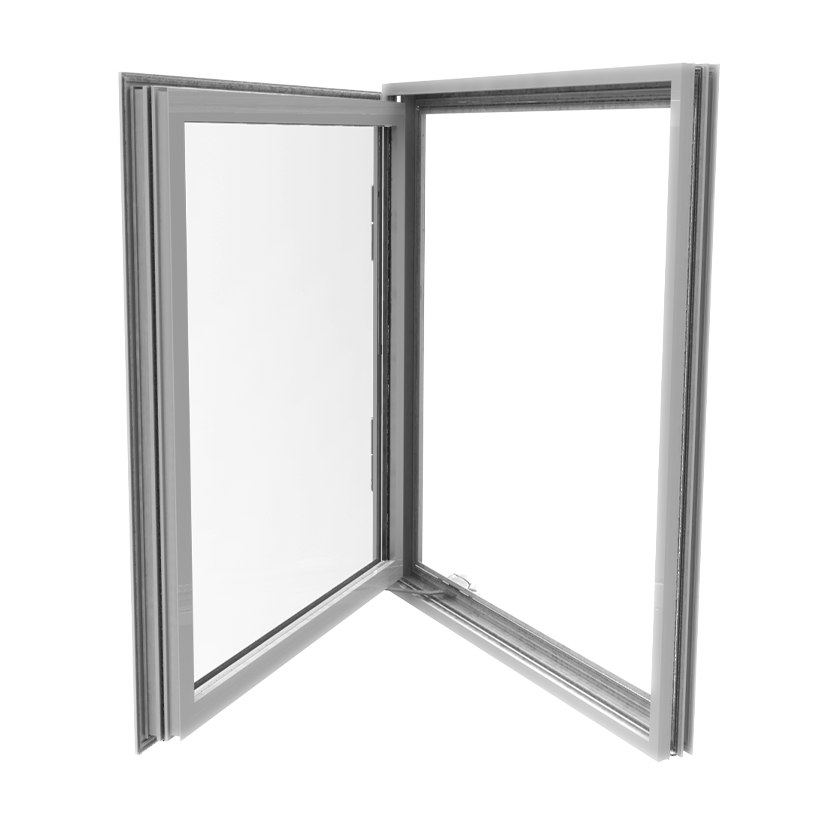

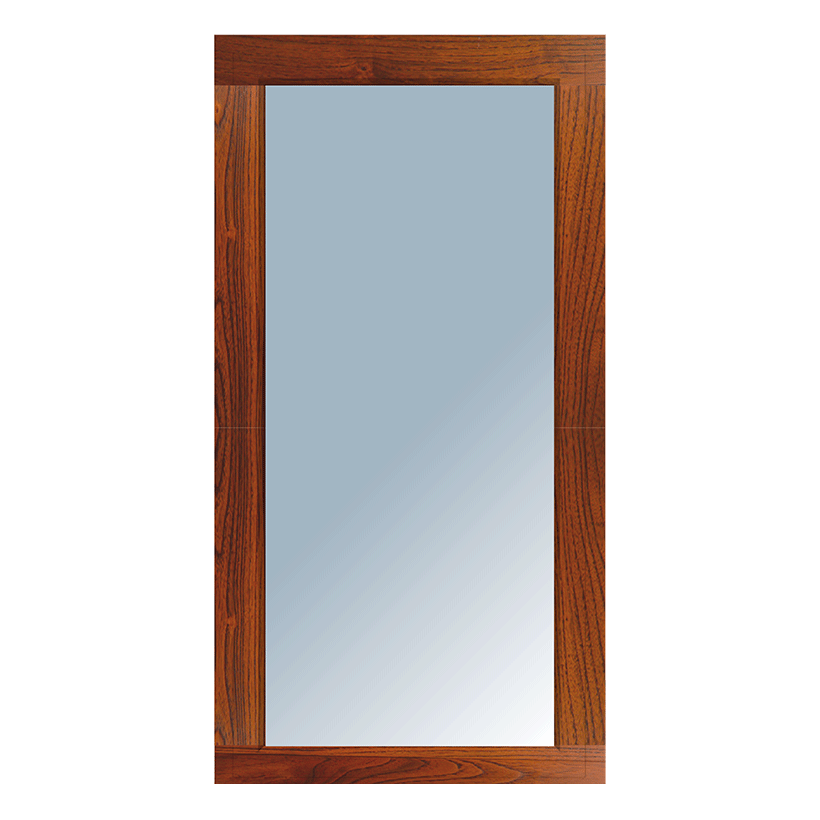

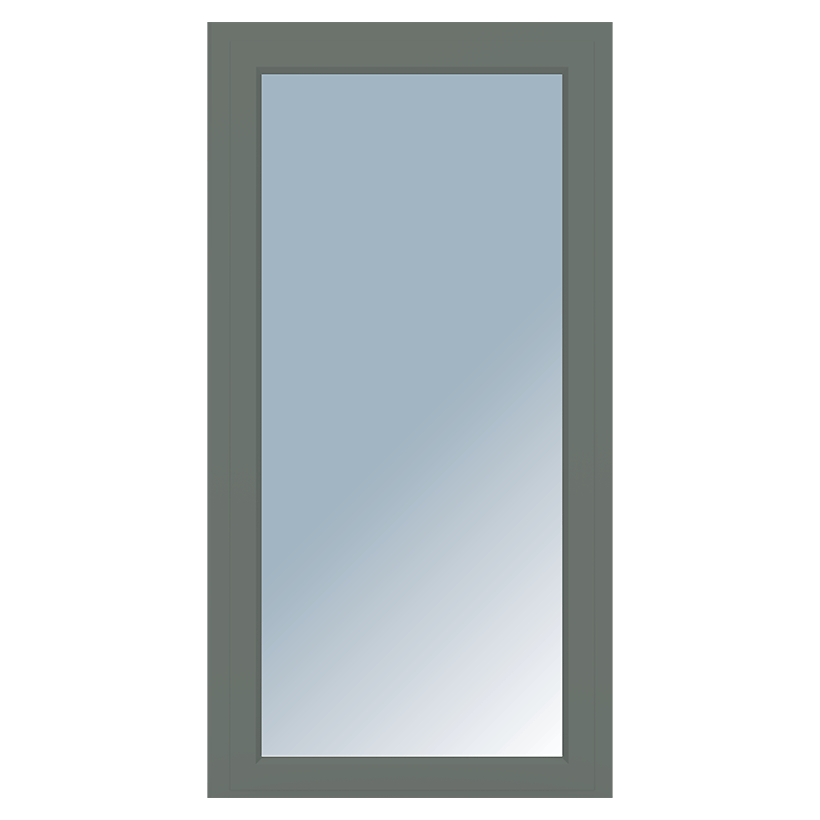

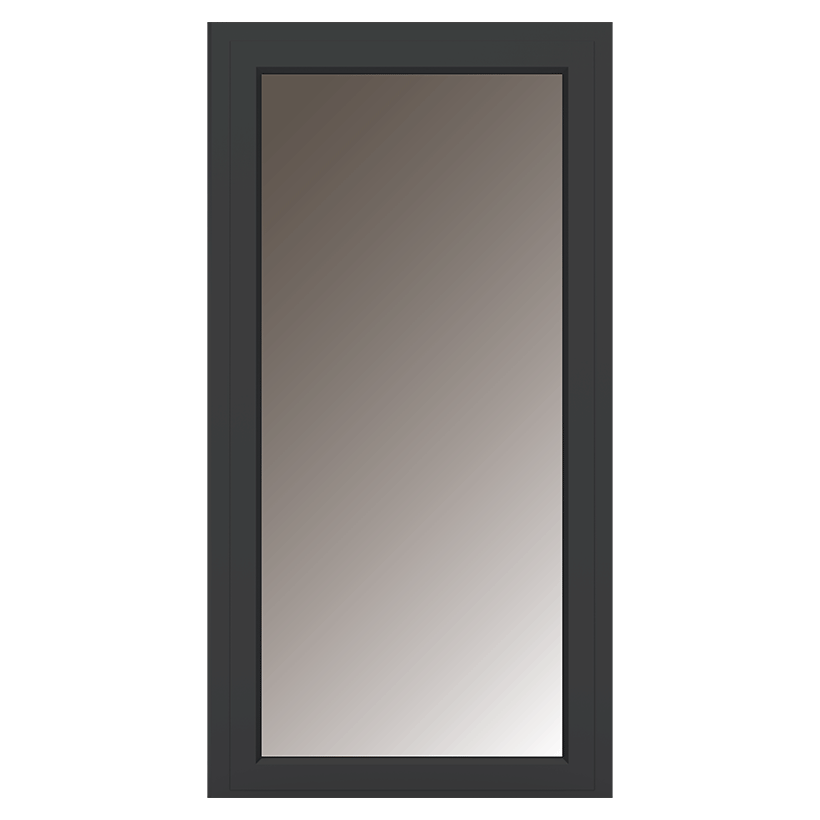

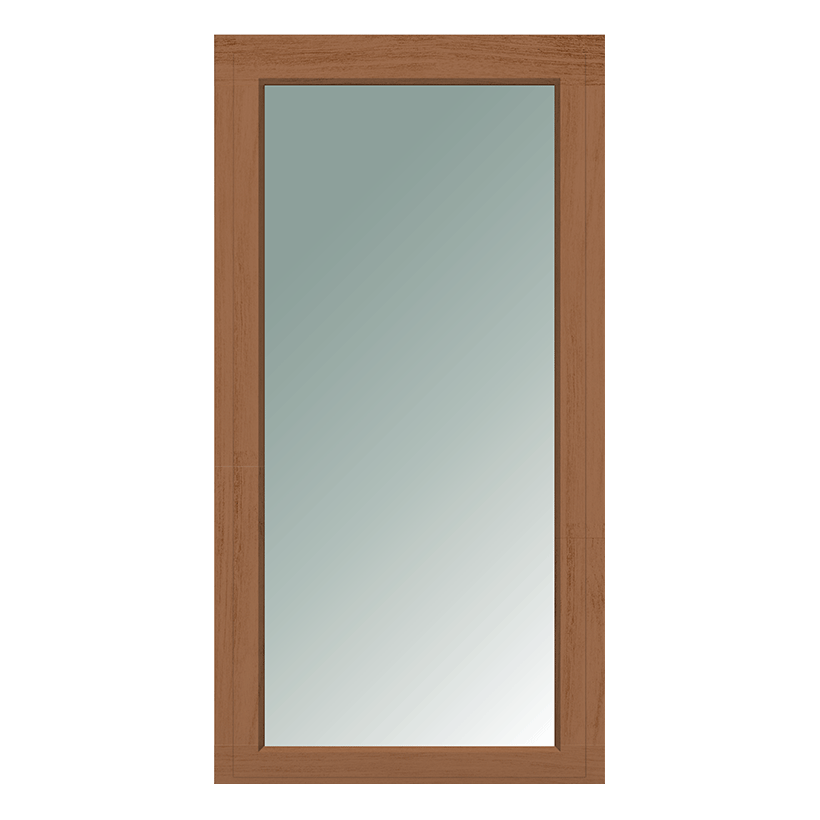

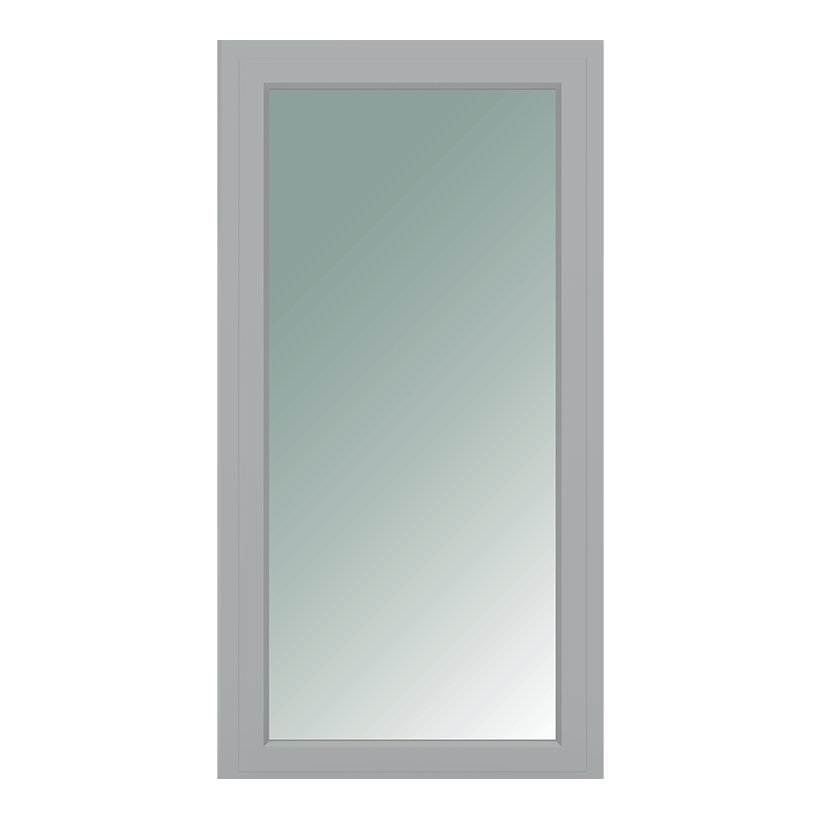

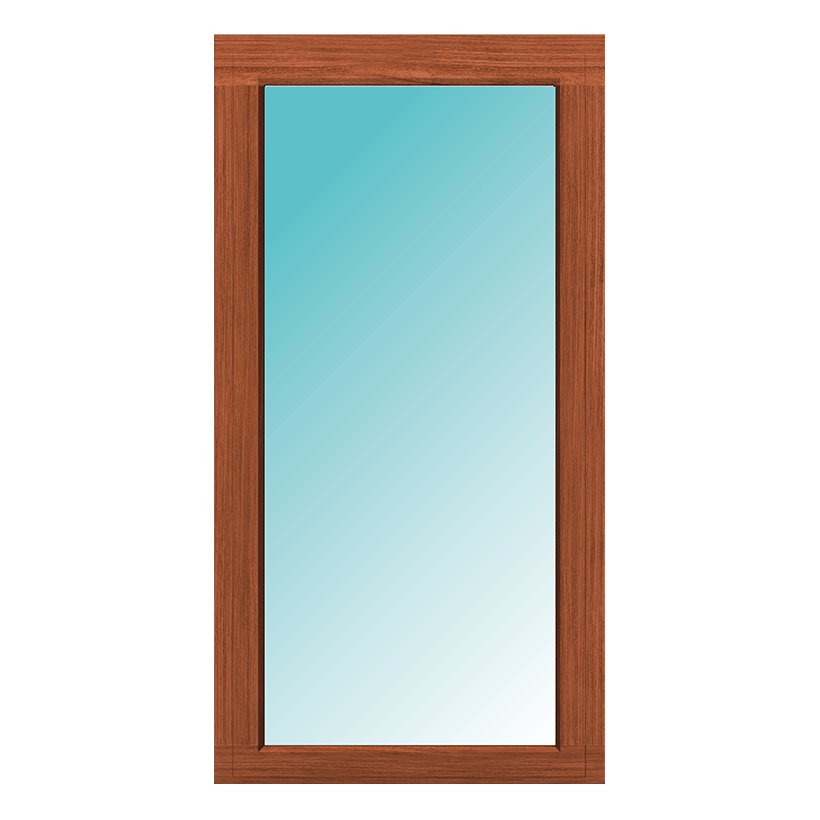

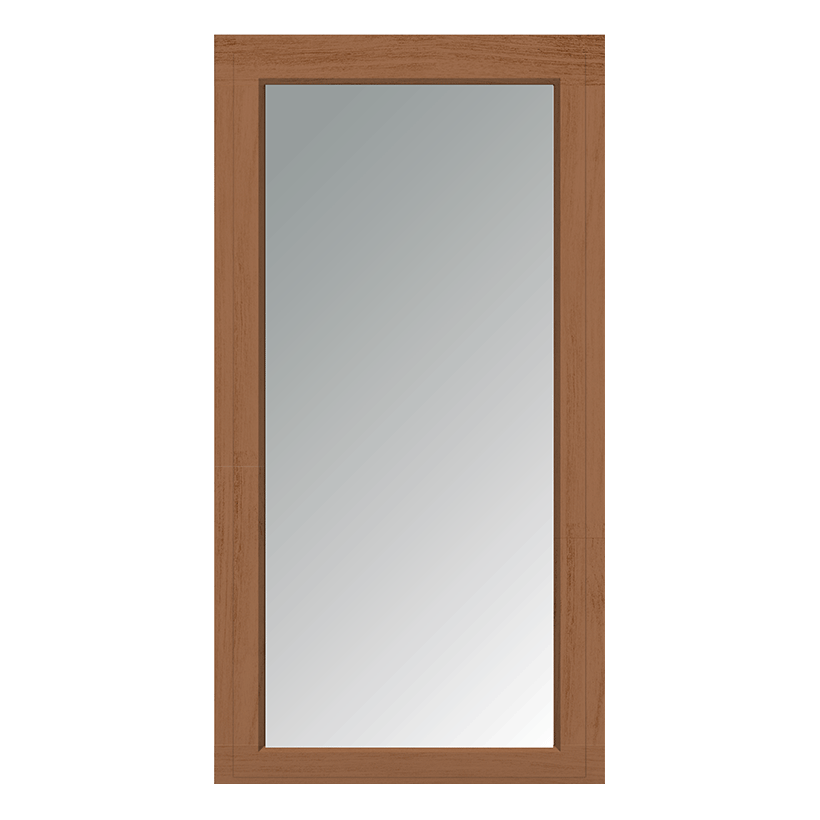

ES-P252 is an operable out-swing window that offers an unobstructed view and excellent ventilation. This product is ideal for areas that demand high light transmittance and minimal thermal transfer.

Designed for the USA market

FEATURES
Hurricane Resistant Hurricane Resistant Thermally Broken Thermally Broken

System Description

Casement · Small and large missile impact rated · Maximum size: 48” width x 84” height · Frame depth: 2 1/2” · Tested water infiltration: 17.1 psf. · Tested design load: +95/-105 psf. (SMI) +95/-105 psf. (LMI Awning · Small and large missile impact rated · Maximum size: 60” width x 48” height · Frame depth: 2 1/2” · Tested design load: +70/-75 · Tested air infiltration: 6.24 psf. · Tested water infiltration: 10.5 psf. Fixed · Small and large missile impact rated · Maximum size: 60” width x 144” height · Frame depth: 2 1/2” · Tested water infiltration: 17.1 psf. · Tested design load: +95/-105 psf. (SMI) +95/-105 psf. (LMI)· U-value: 0.37 on clear insulating laminated SB 70 · SHGC: 0.23 on clear insulating laminated SB 70

Features

Single arm operator and multi-point lock Head receptor, sub-sill and strap anchors available Thermally broken frame Flange or equal leg frame

Related Documents

Datasheet Installation Guide Brochure Miami Dade County
Notice of Approval NFRC Certificate
