WINDOWS

ES-P450

TYPE
Project
BRAND
ESW ®

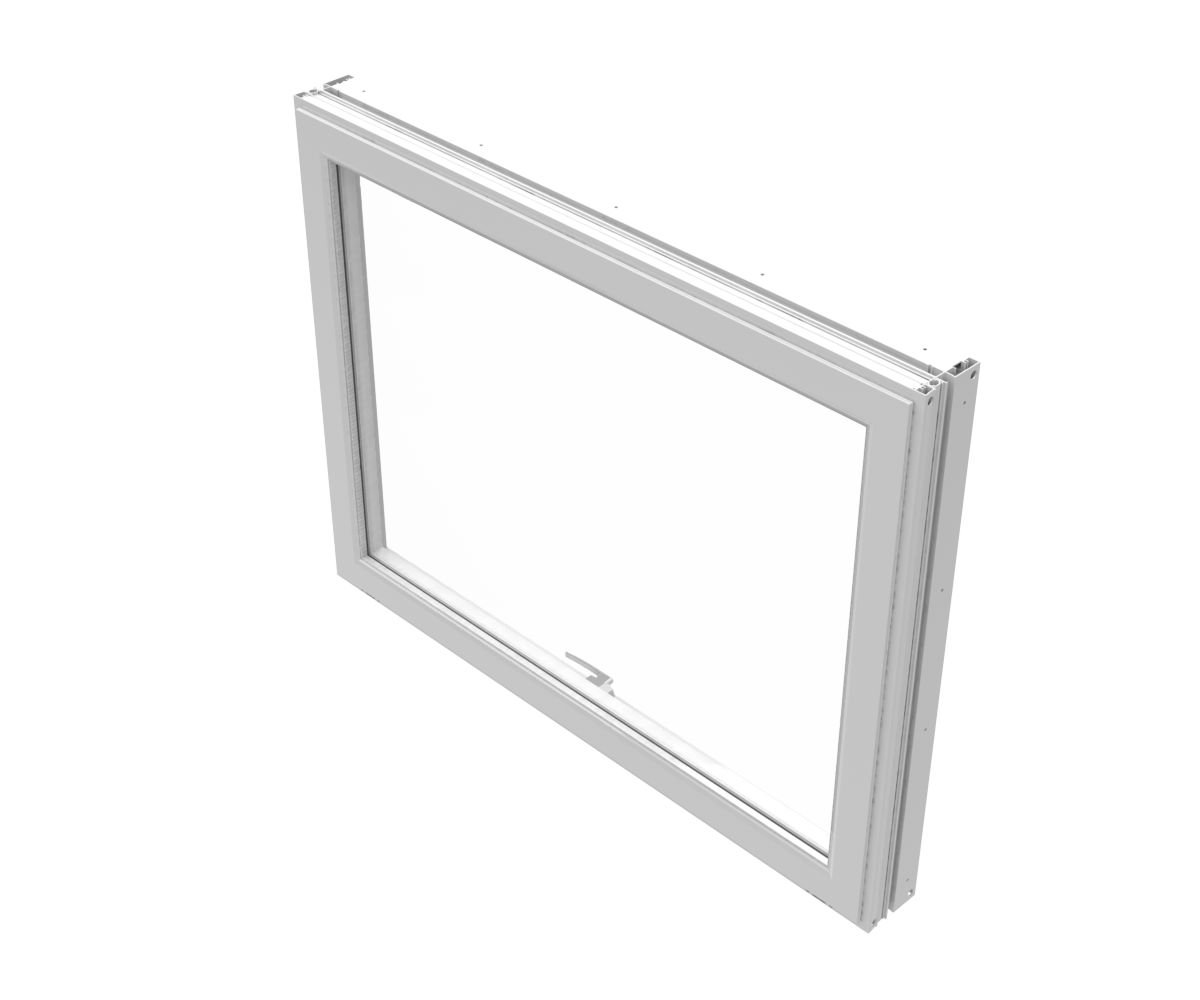

The ES-P450 system is a thermally broken, project-out window for insulating glass, available in casement, awning and fixed configurations. The use of polyamide technology allows dual finish combinations.

Designed for the USA market

FEATURES
Thermally Broken Thermally Broken

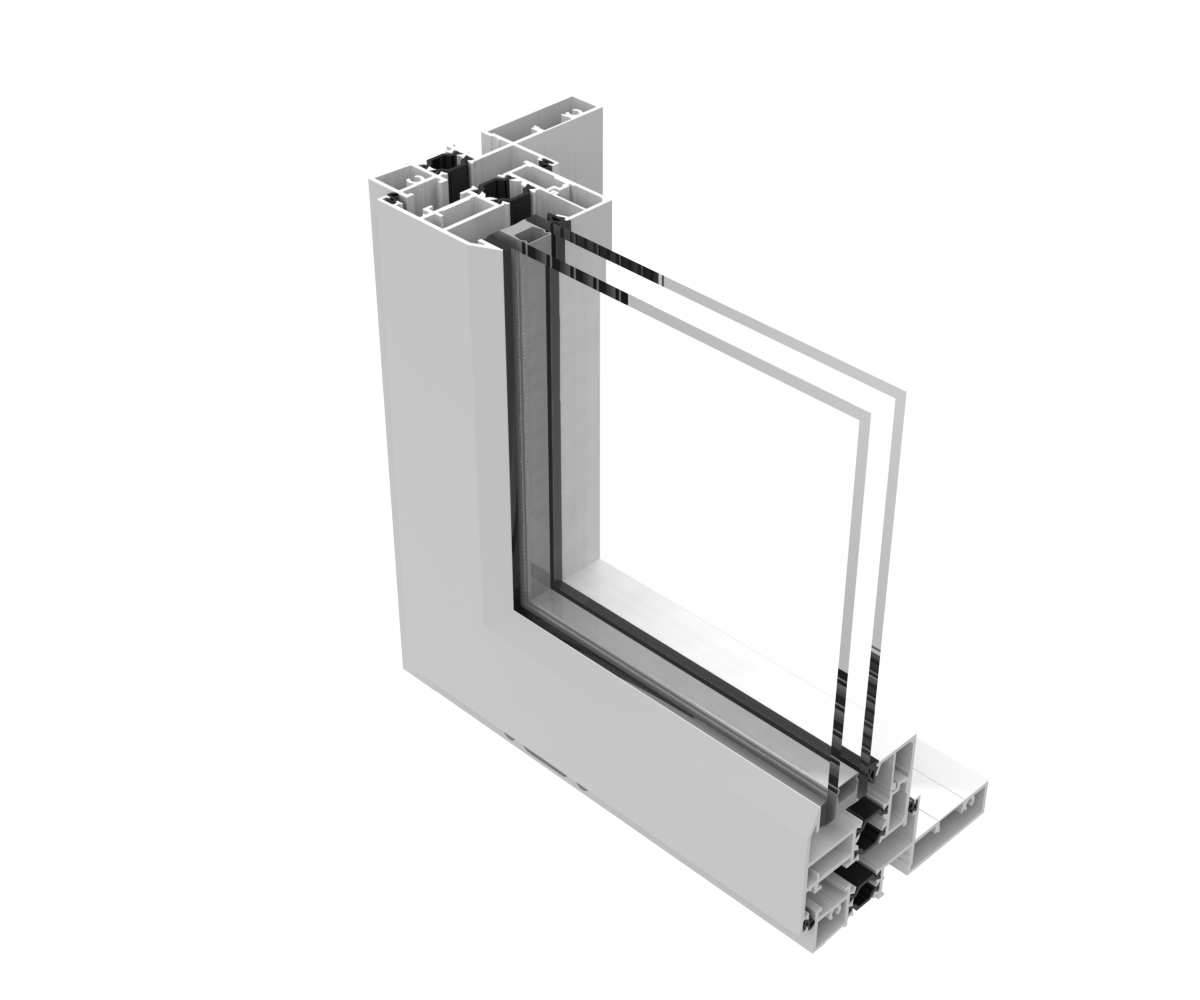

System Description

Frame depth: 4 1/2”. Sightline frame: 3 1/4”. Designed for 1”, 1 1/16” and 1 7/16” insulating glass. Maximum size: 60” x 99”. Design load: +85/-85 psf. (fixed), +85/-85 psf. (operable). Water infiltration: 15 psf. (fixed) 15 psf. (operable). AAMA class: AW -100 fixed; AW -70 operable. U-value: 0.34 (fixed), 0.48 (operable).

Features

Heavy duty stainless steel four bar hinge. Anodized, painted or wood grain finishes available. Fully weather-stripped. Silicone gaskets for improved durability. Multi-point lock. Head receptor, sub-sill and strap anchors available.

Related Documents

Datasheet Installation Guide Accessibility for
Project-out Windows
