DOORS

ES-MX3000

TYPE
Swing
BRAND
Multimax

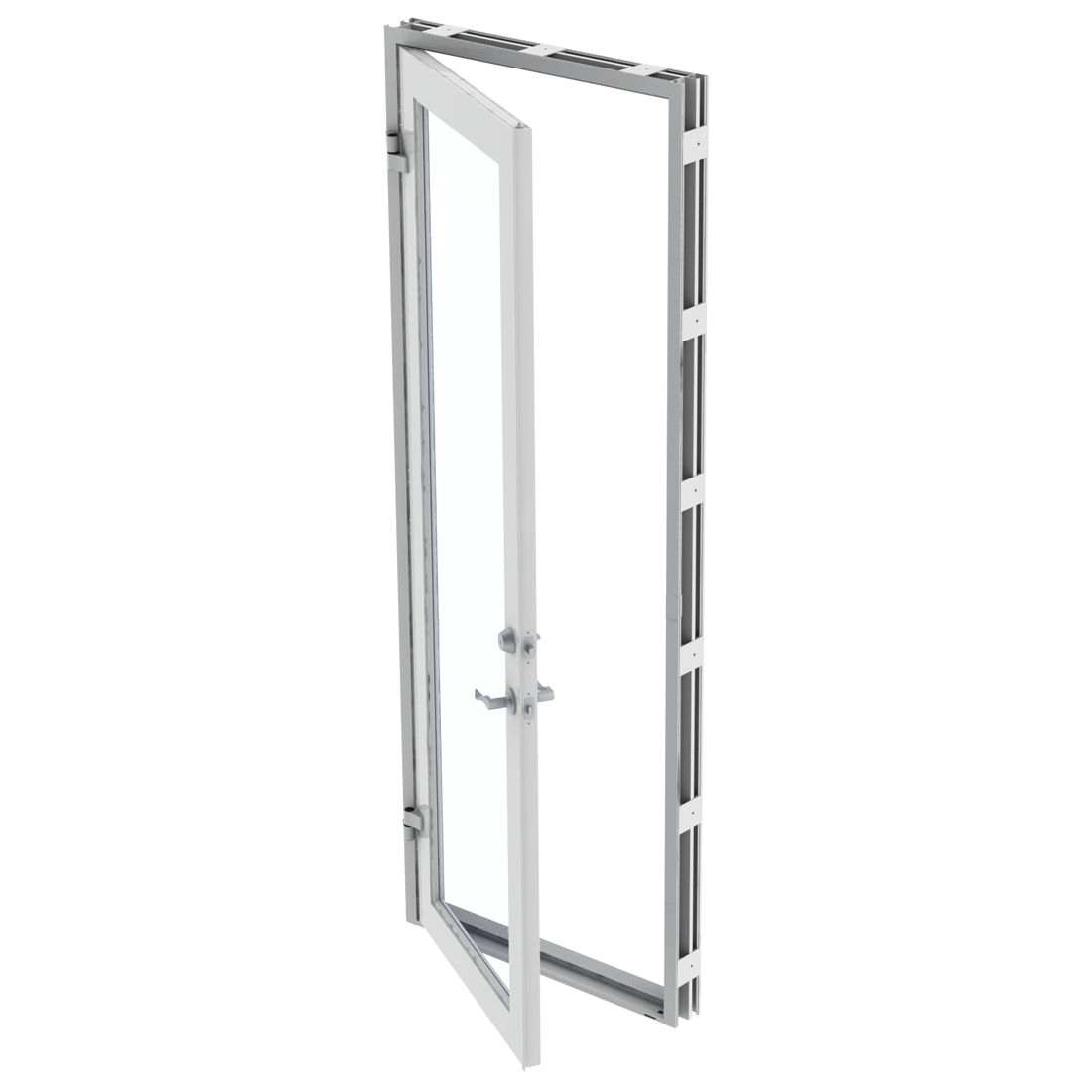

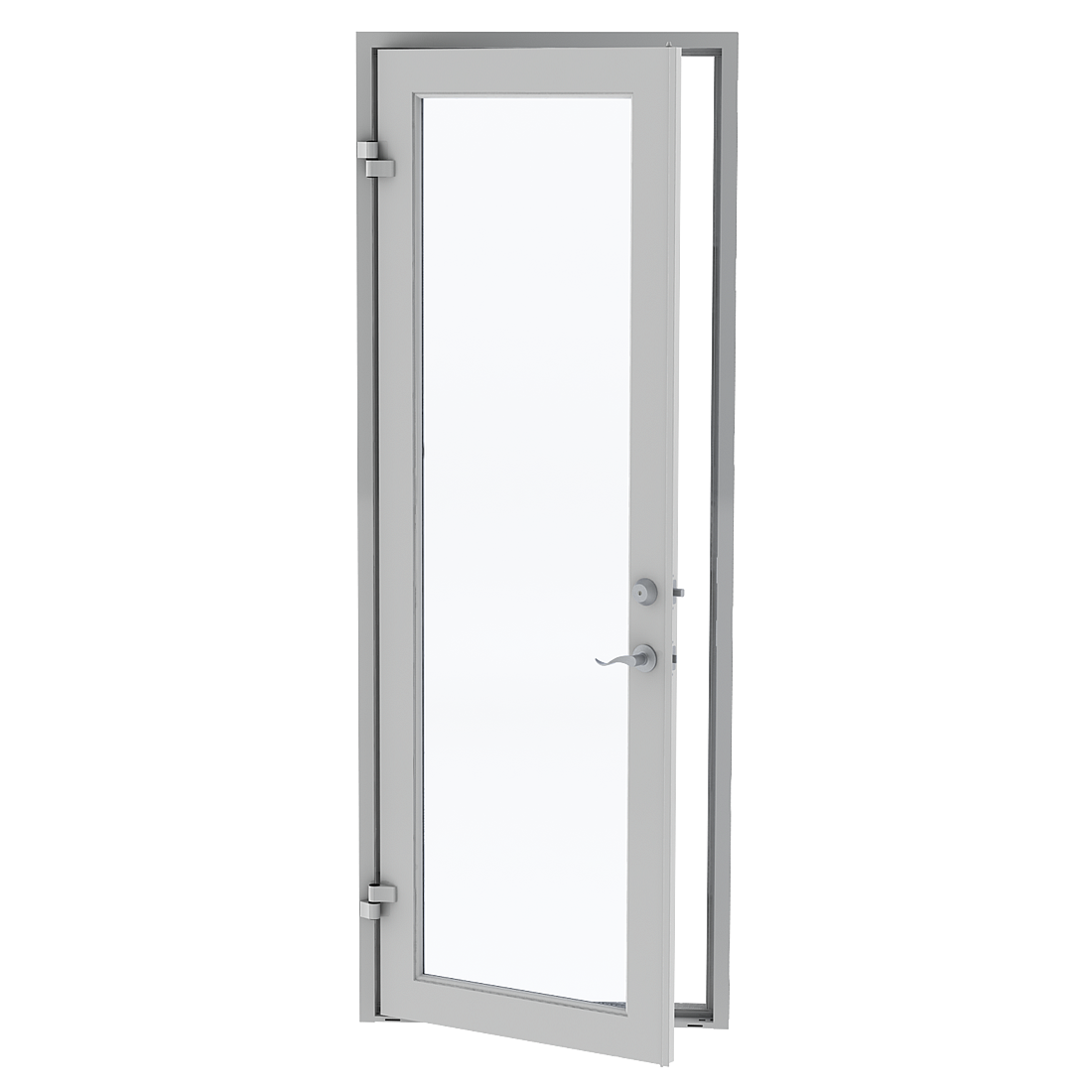

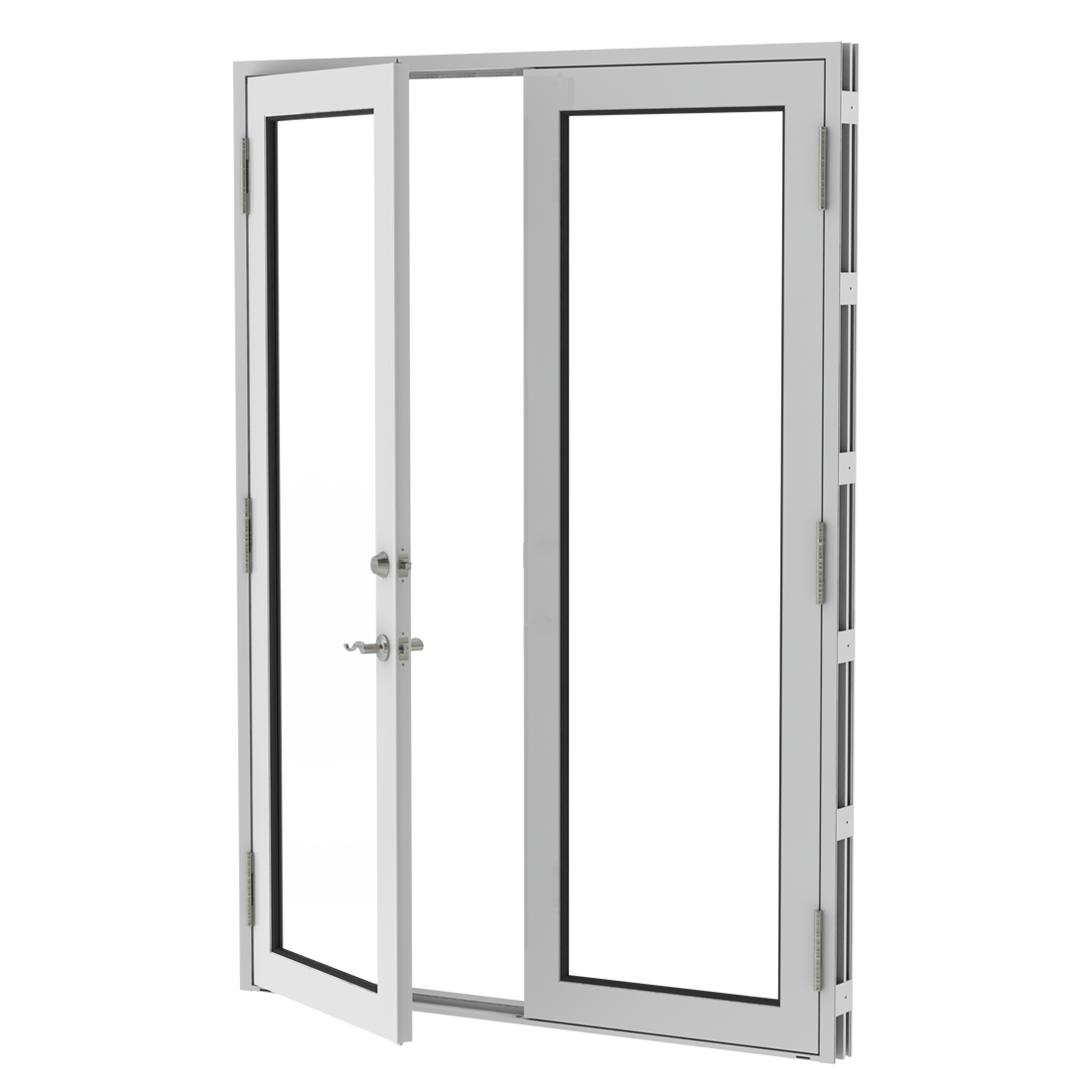

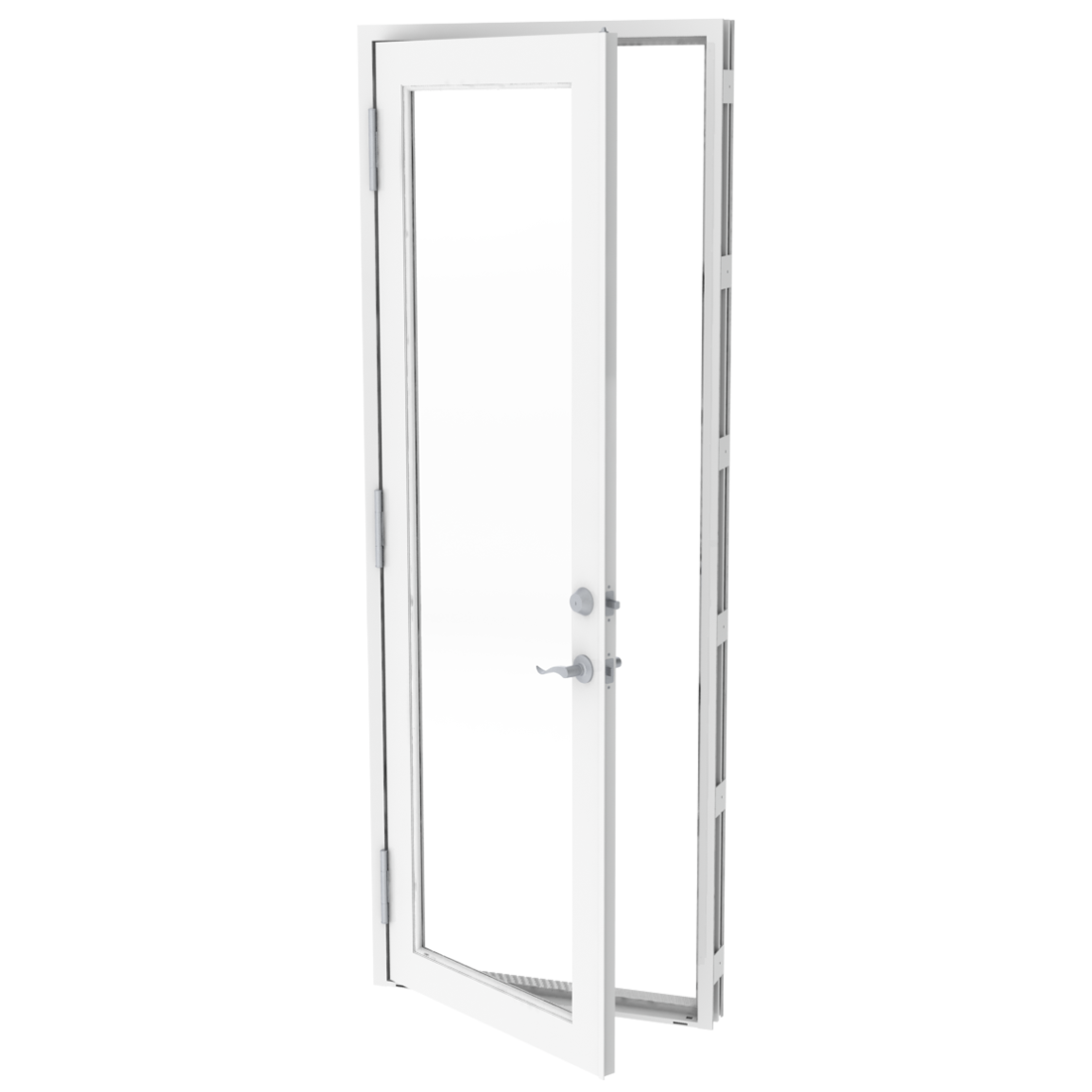

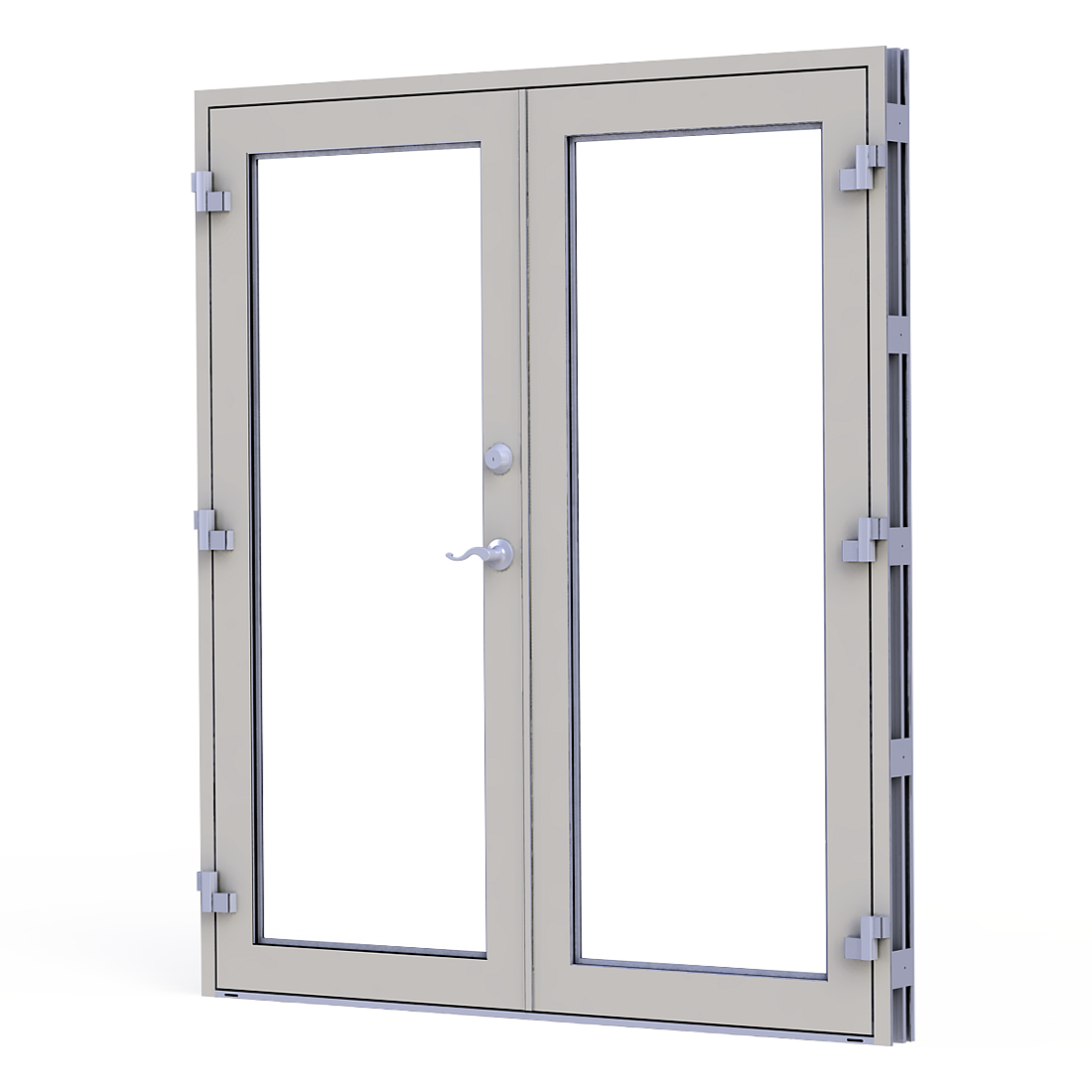

ES-MX3000 is an impact rated french door designed with the highest technical standards in safety and durability. This door system can be used in a wide range of residential and commercial applications.

Designed for the USA market

System Description

Maximum size: Single leaf: 40" x 96" , Double leaf: 76" x 96" Minimum size: Single leaf: 20" x 40" , Double leaf: 40" x 70" Frame depth: 4" Design for 5/16" heat strengthened glass Prepped handle bores options only Water infiltration: 13.5 psf. (single) 15 psf. (double) Design load: +80/-70 psf. Laminated Glass: 1/8" HS+ 0.09 PVB + 1/8" HS U-value: 1.04 on clear laminated SB 70 SHGC: 0.23 on clear laminated SB 70

Features

Low-E Solarban 70 available PVB laminated glass with coating options available White and bronze aluminum finishes

Related Documents

Installation Guide Brochure
