WINDOWS

ES-MX1500

TYPE
Fixed
BRAND
Multimax

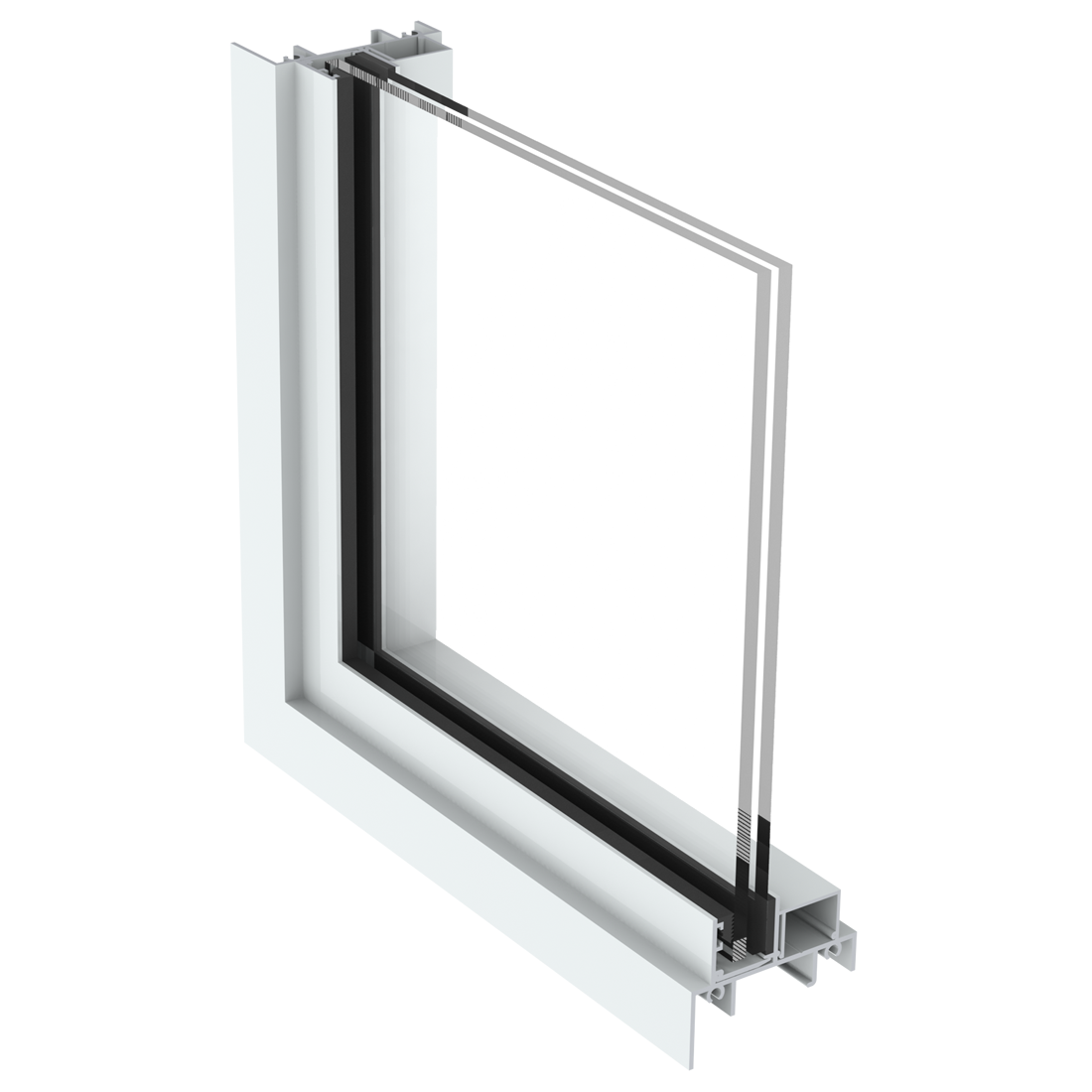

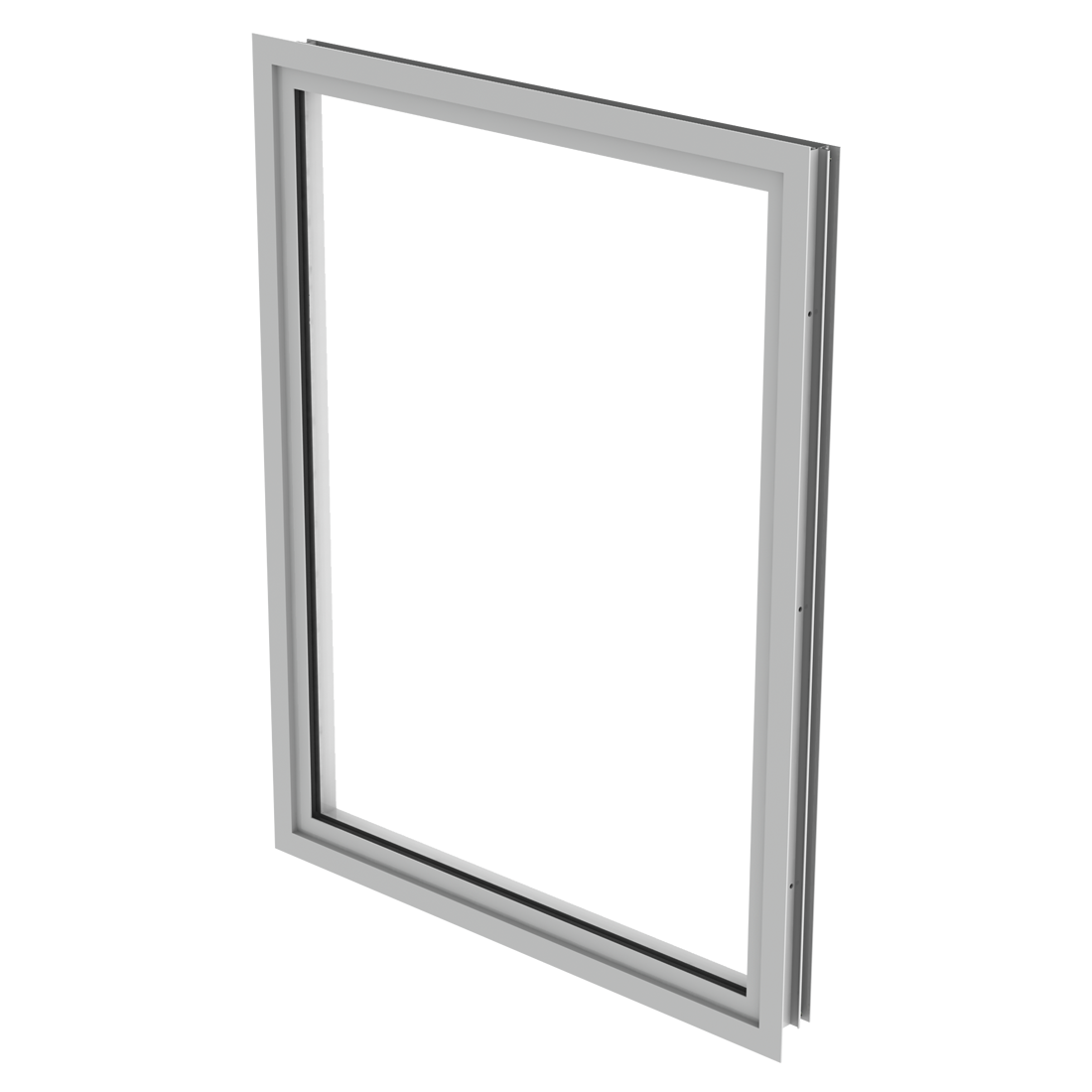

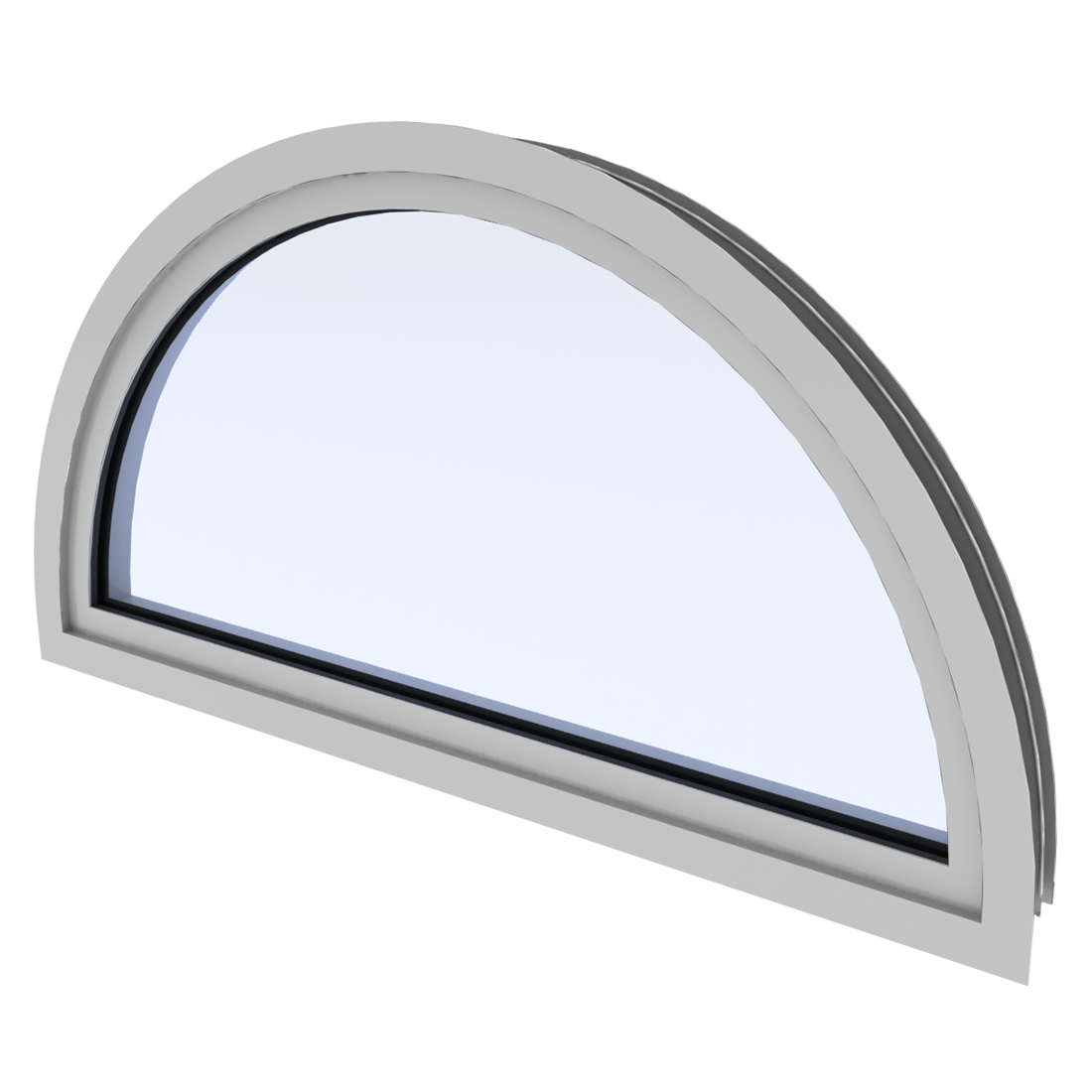

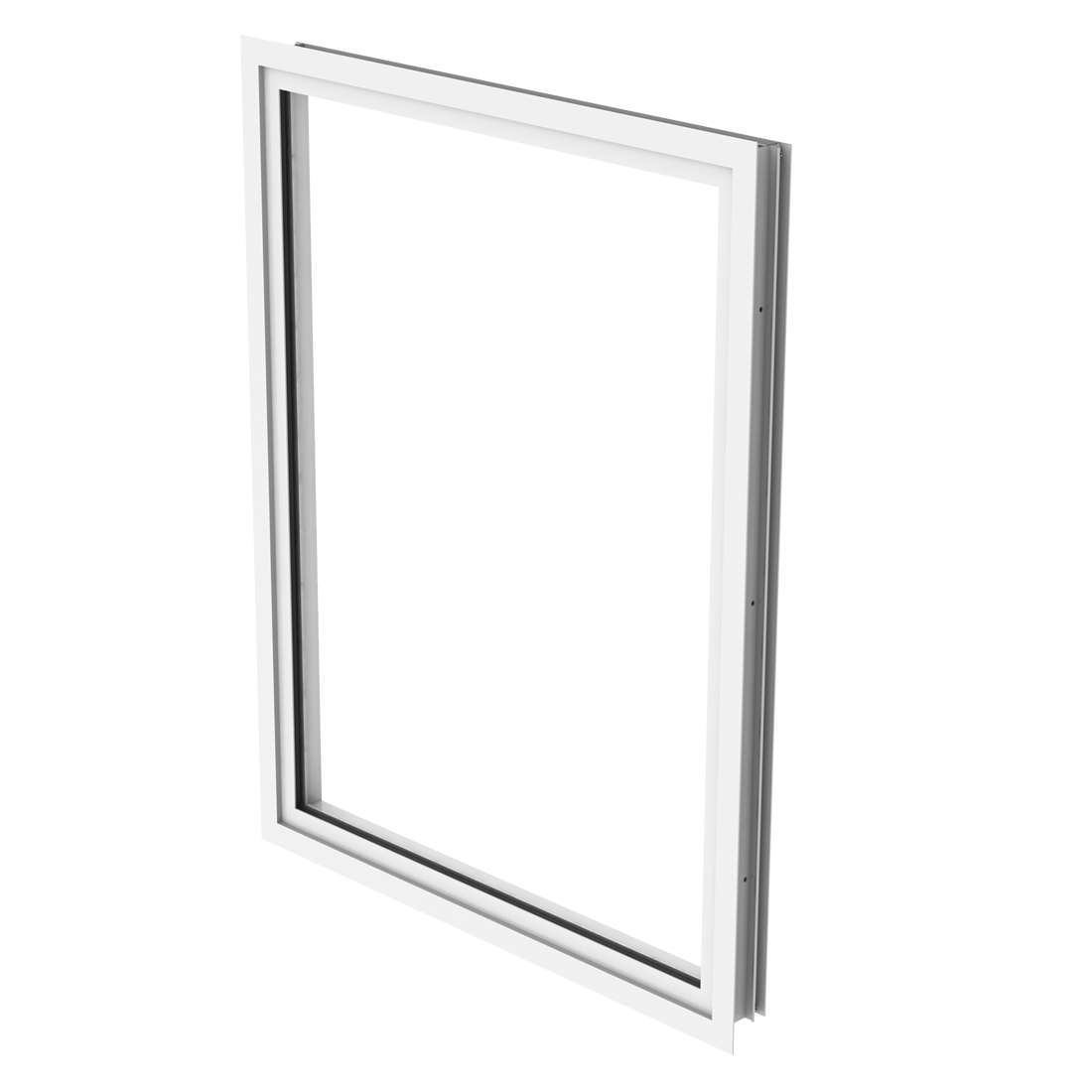

ES-MX1500 is an impact rated fixed window available in a variety of shapes allowing a wide range of architectural applications. This window is used to bring light to places with difficult accessibility.

Designed for the USA market

FEATURES
Hurricane Resistant Hurricane Resistant

System Description

Maximum size: 36” width x 120” height Frame depth: 2 3/8” Flange frame available Designed for 5/16” annealed glass and 7/16” heat strengthened glass options LMI and SMI Tested water infiltration: 15 psf. Tested design load: +70/-80 psf. (LMI) , +100/-140 psf. (SMI) Laminated glass: 1/8” ANN + 0.09 PVB + 1/8” ANN , 3/16” HS + 0.09 PVB + 3/16” HS U-value: 1.01 on clear laminated SB 70 SHGC: 0.31 on clear laminated SB 70

Features

Low-E Solarban 70 available White and bronze aluminum finishes PVB laminated glass with coating options available Architectural shapes

Related Documents

Datasheet Installation Guide Brochure
