WINDOWS

ES-EL100

TYPE
Hung
BRAND
Elite ®

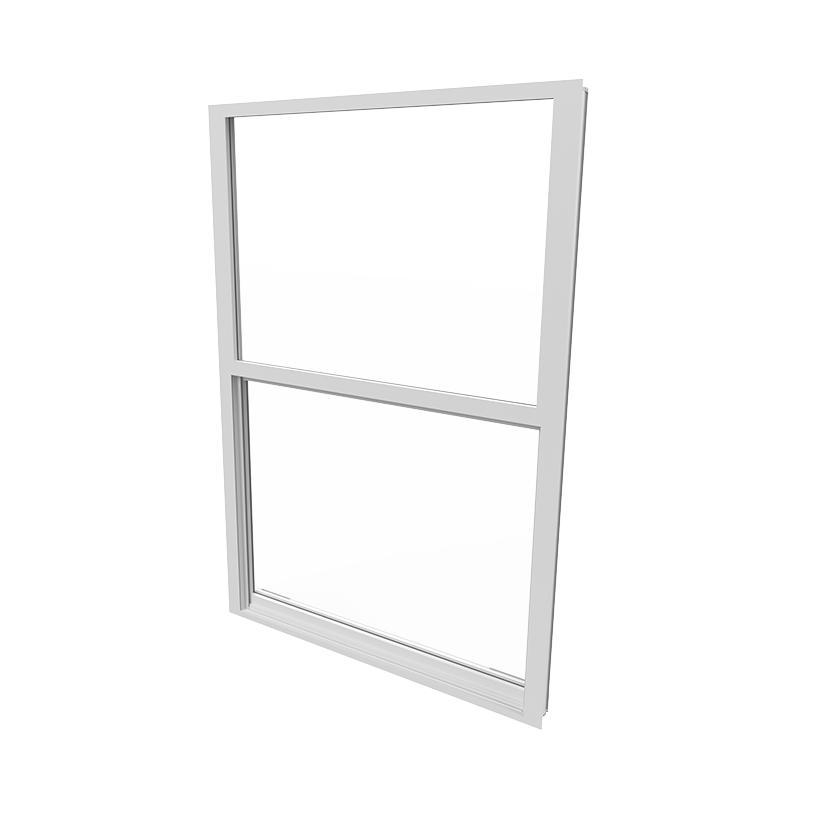

The ES-EL100 is a single-hung, impact rated window that easily adapts to any design specification, satisfying the most demanding construction and architectural standards for security, strength and durability. ES-EL100 is designed for narrow openings to resist high pressures. Single-hung systems are known for its excellent water intrusion performance

Designed for the USA market

FEATURES
Hurricane Resistant Hurricane Resistant

System Description

Large missile impact rated Frame depth: 2 15/16" Configuration: O/X Designed for laminated, insulating and insulating laminated glass Tested water infiltration: 12 psf Tested design load: +80/-80 psf LMI Maximum size: 53 1/8" width x 76" height U-value: 0.64 - IGU (1/8" SB70 Clear + AS + 1/8" Clear + 0.090 PVB + 1/8" Clear) , 0.96 - LG (1/8" Clear + 0.090 PVB + 1/8" Clear) Insulating laminated glass: 1/8"+ 3/8" AS + 1/8" + 0.090 Interlayer + 1/8" , 1/8" + 5/16" AS + 1/8" + 0.090 Interlayer + 1/4" Laminated glass: 1/8" + 0.090 Interlayer + 1/8" , 1/8"+ 0.090 Interlayer + 1/4" Egress size: Configurations for egress requirement available SHGC: 0.23 on clear insulating laminated SB 70

Features

Block and tackle or ultra-lift balances Bottom spring latch or sweep lock Flange frame for masonry, fin frame for wood construction or flush frame for concrete opening

Related Documents

Datasheet Installation Guide Brochure Miami Dade County
Notice of Approval
