WINDOWS

ES-MX1000

TYPE
Hung
BRAND
Multimax

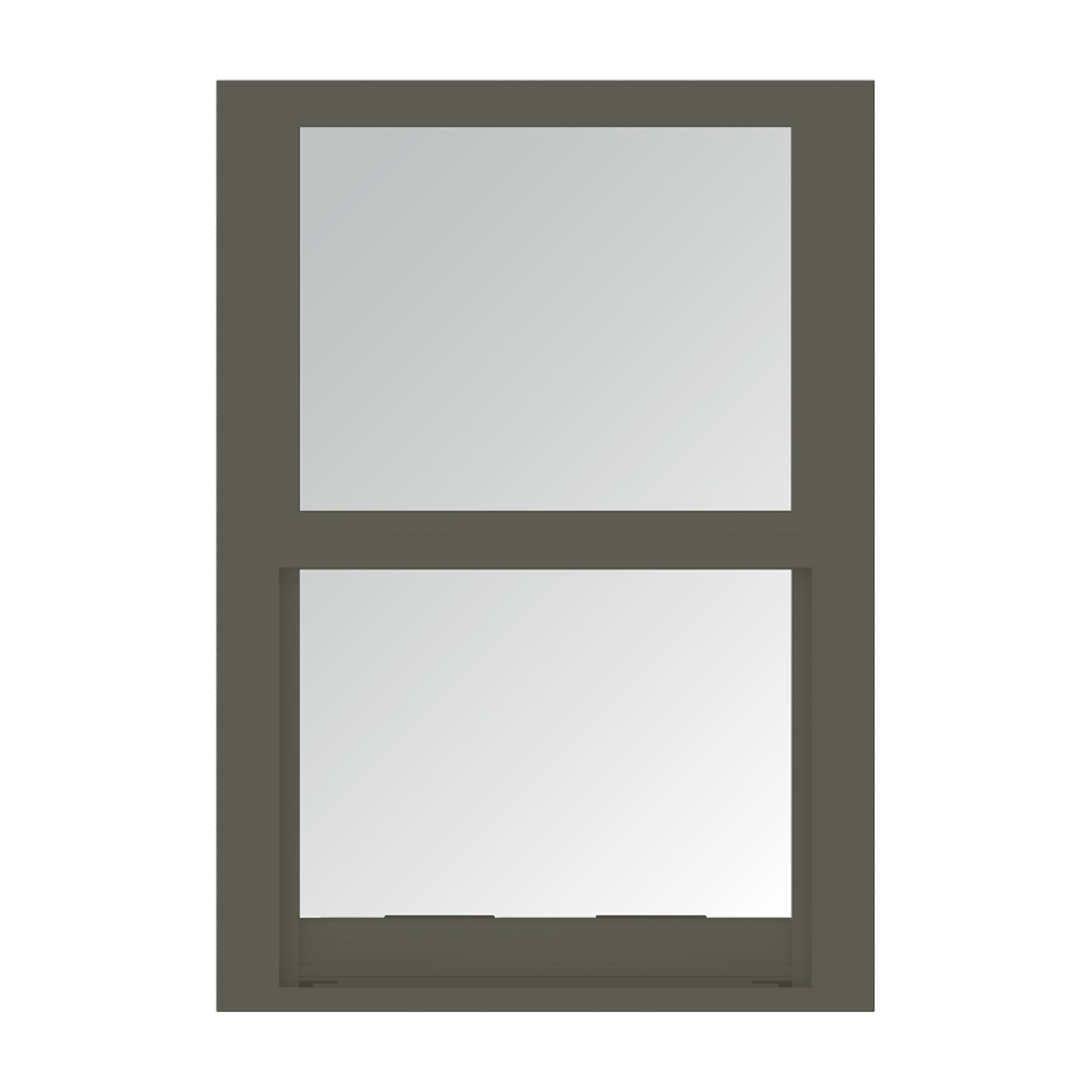

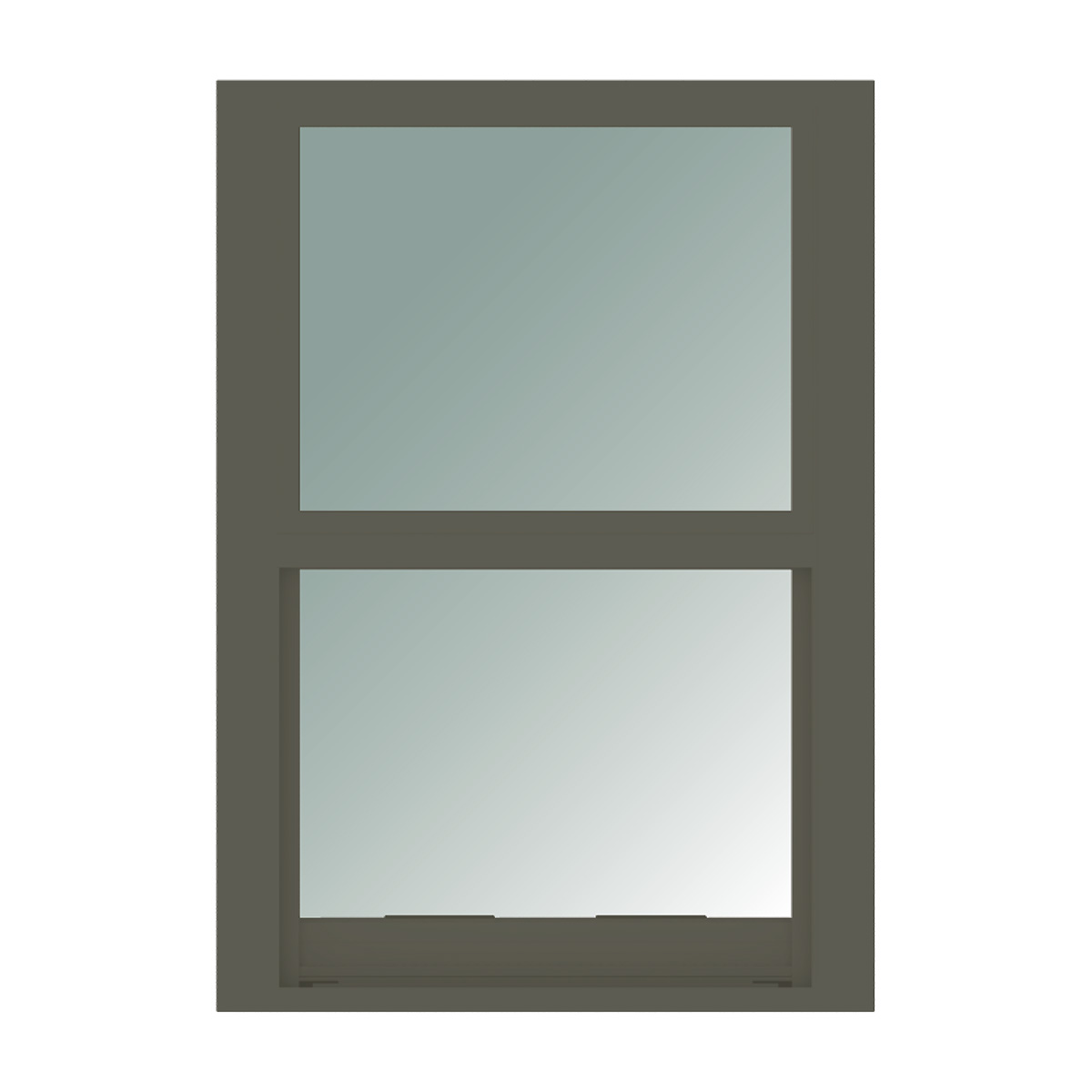

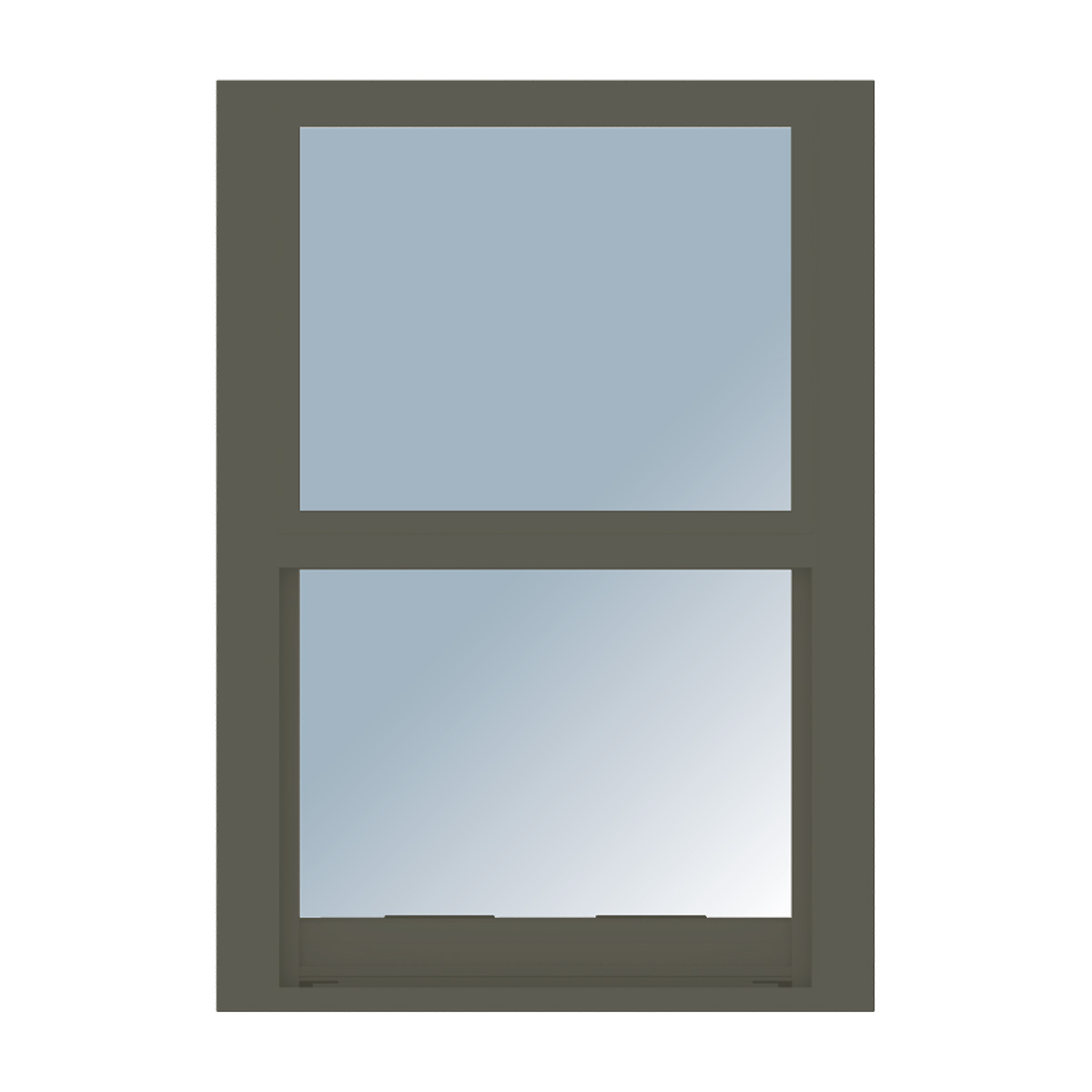

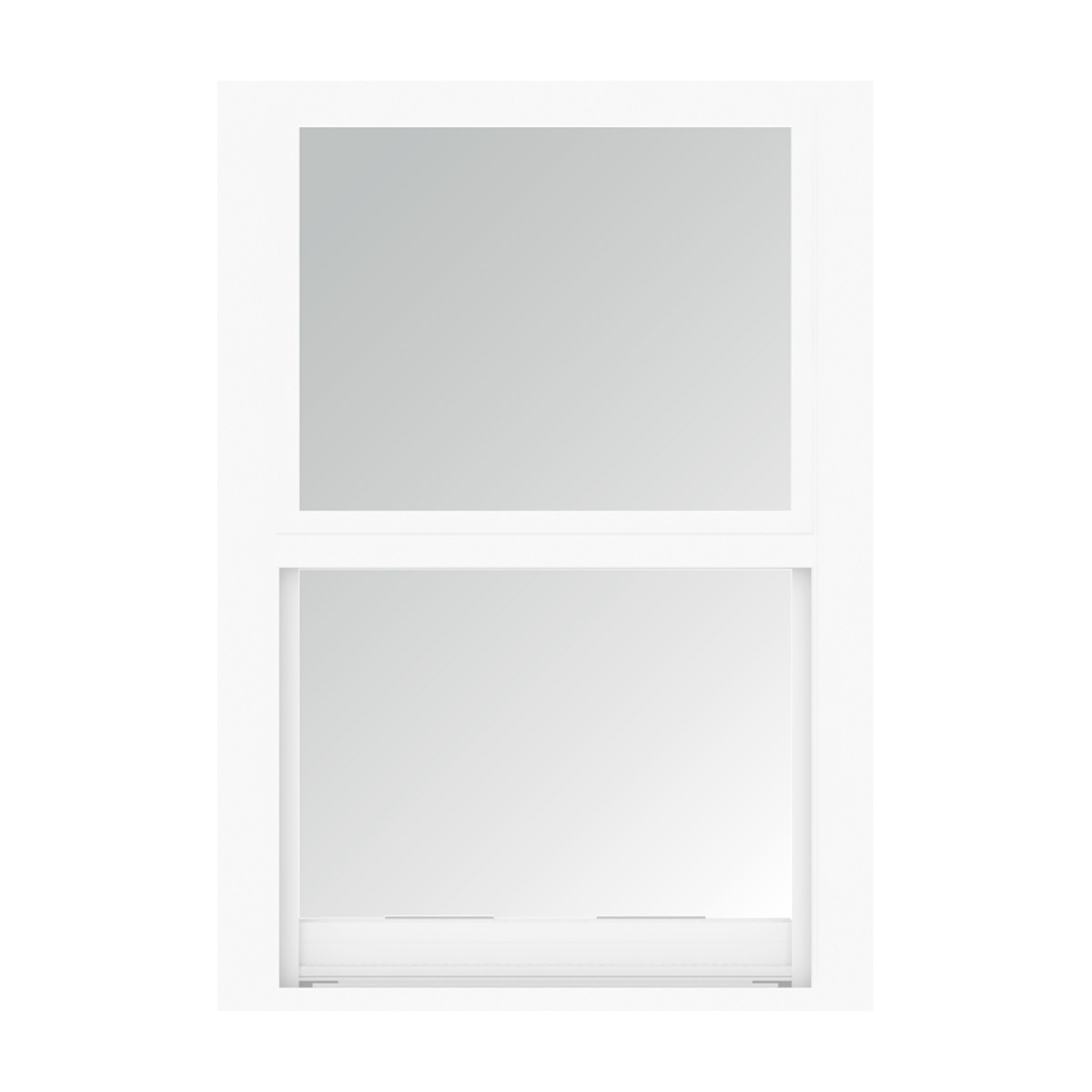

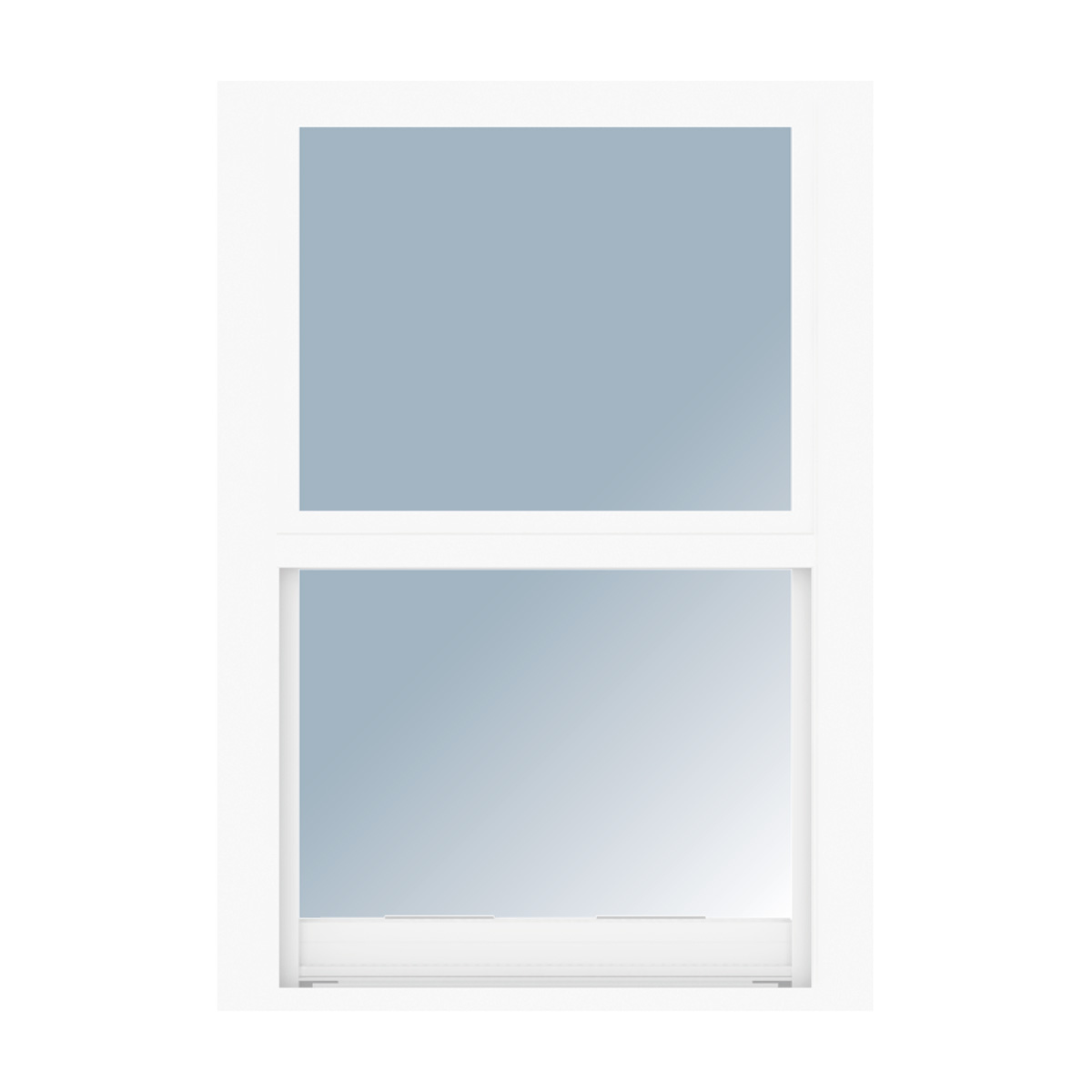

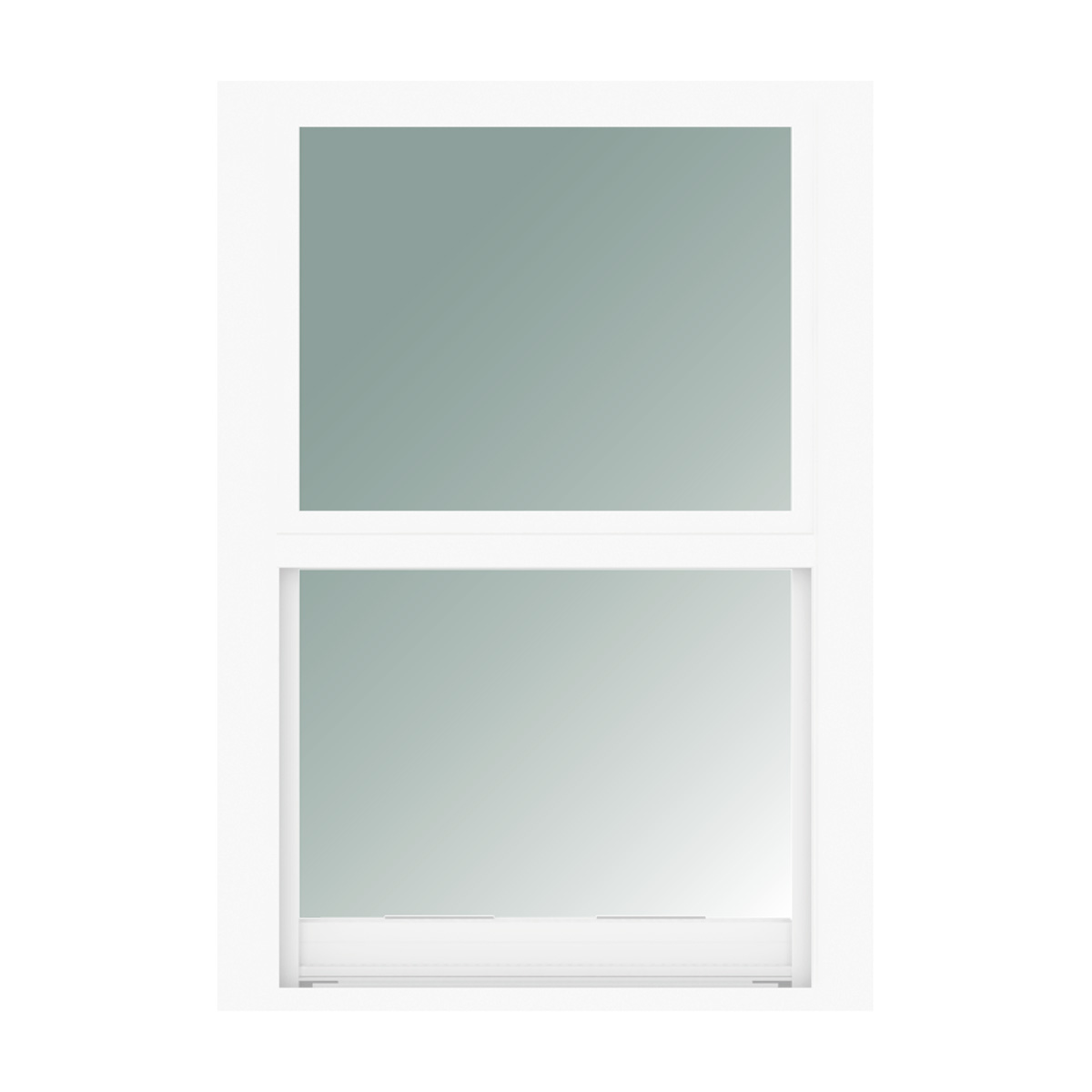

The ES-MX1000 is a hung window that can be adapted to any architectural design, the system follows strict construction specifications and architectural standards of safety and durability. This window system can be implemented in residential and commercial constructions projects.

Designed for the USA market

FEATURES
Hurricane Resistant Hurricane Resistant

System Description

Maximum width (Equal): 53 1/8” width x 63” height Maximum height (Equal): 74 1/4” height x 42” width Maximum width (Unequal): 53 1/8” width x 50 5/8” height Maximum height (Unequal): 74 1/4” height x 26 1/2” width Frame depth: 2 3/8” Flange frame available Designed for 5/16” annealed and heat strengthened glass options LMI and SMI Configuration: OX Tested water infiltration: 12 psf. Tested design load: +80/-90 psf. (LMI) , +80/-120 psf. (SMI) Laminated glass: 1/8” ANN + 0.09 PVB + 1/8” ANN , 1/8” HS + 0.09 PVB + 1/8” HS U-value: 1.04 on clear laminated SB 70 SHGC: 0.29 on clear laminated SB 70

Features

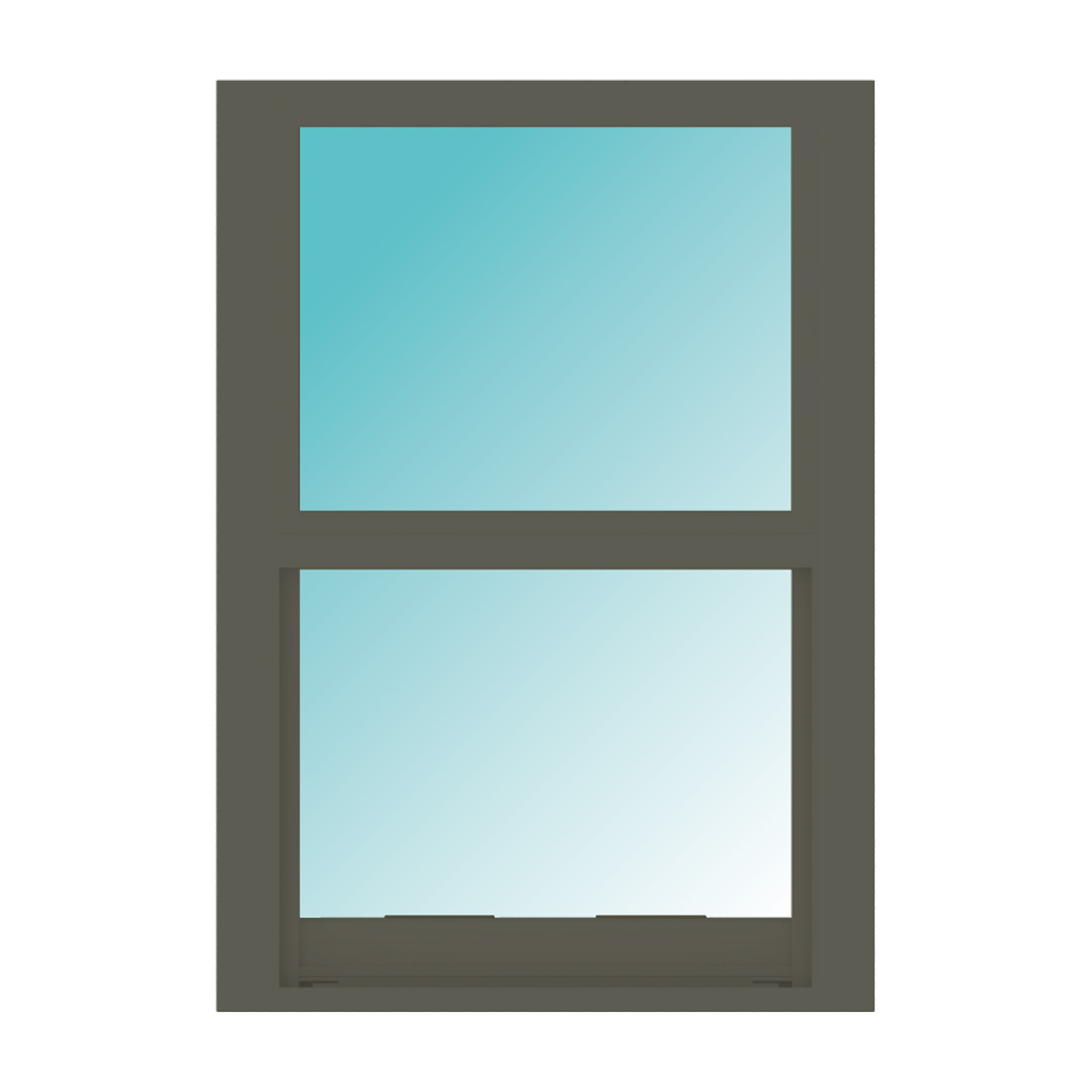

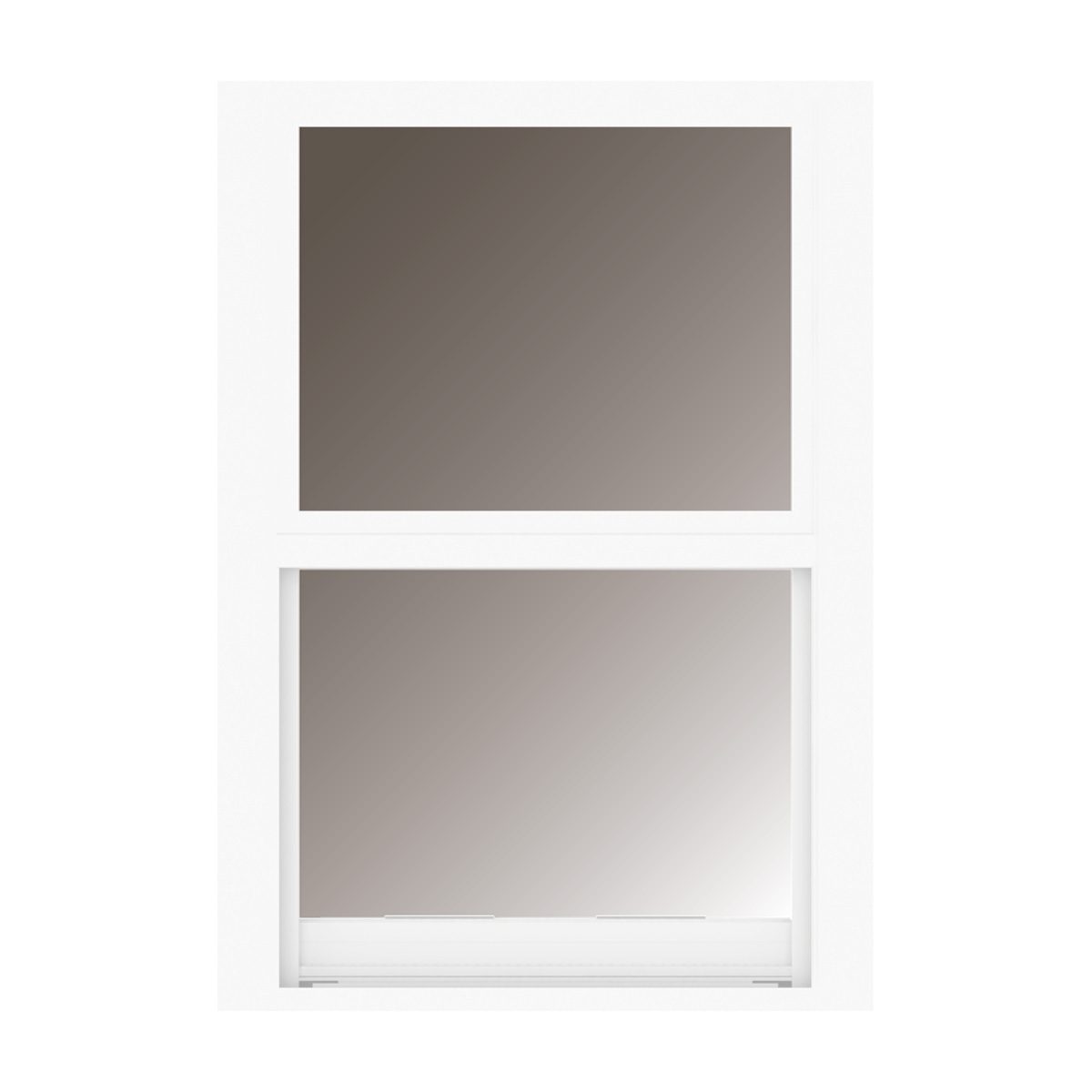

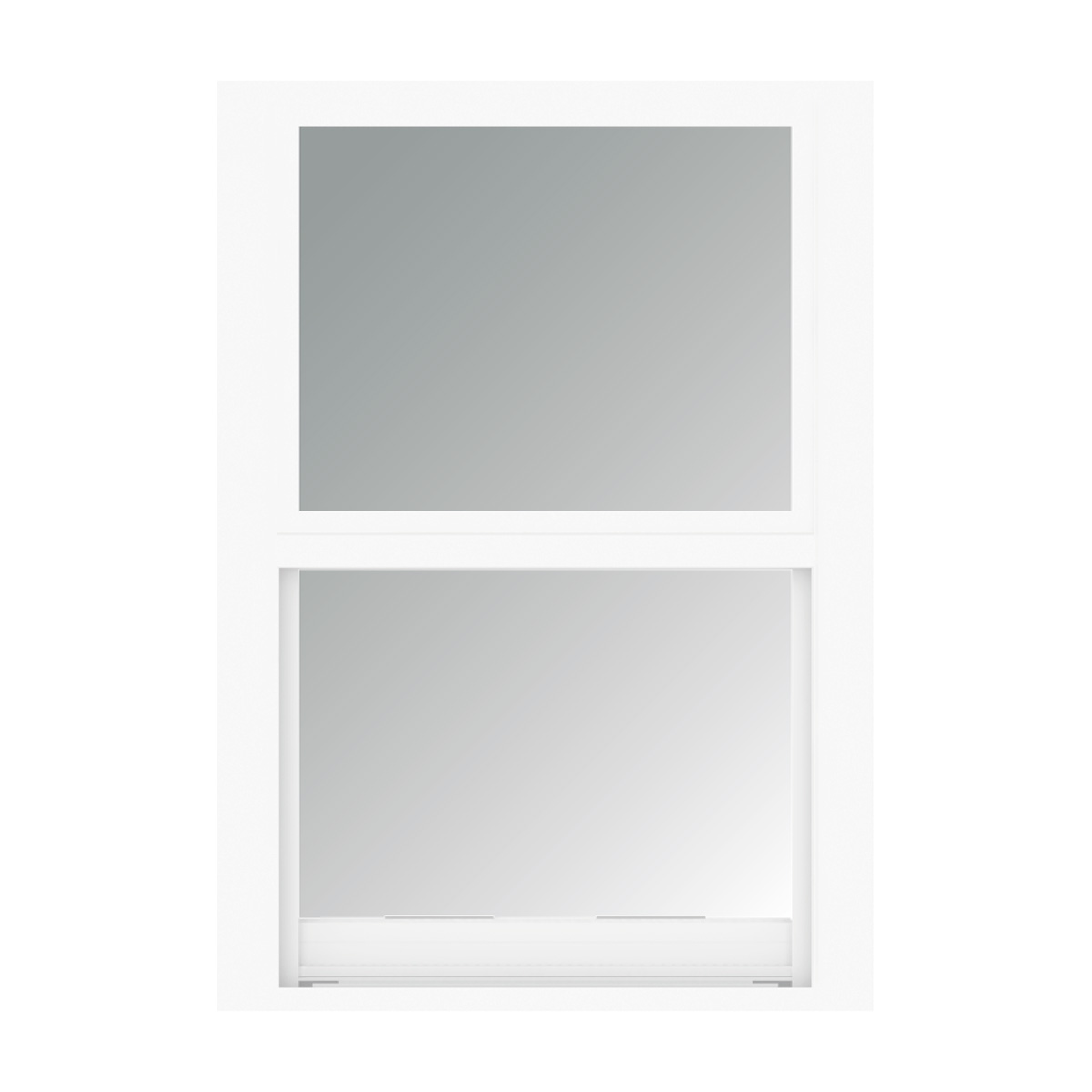

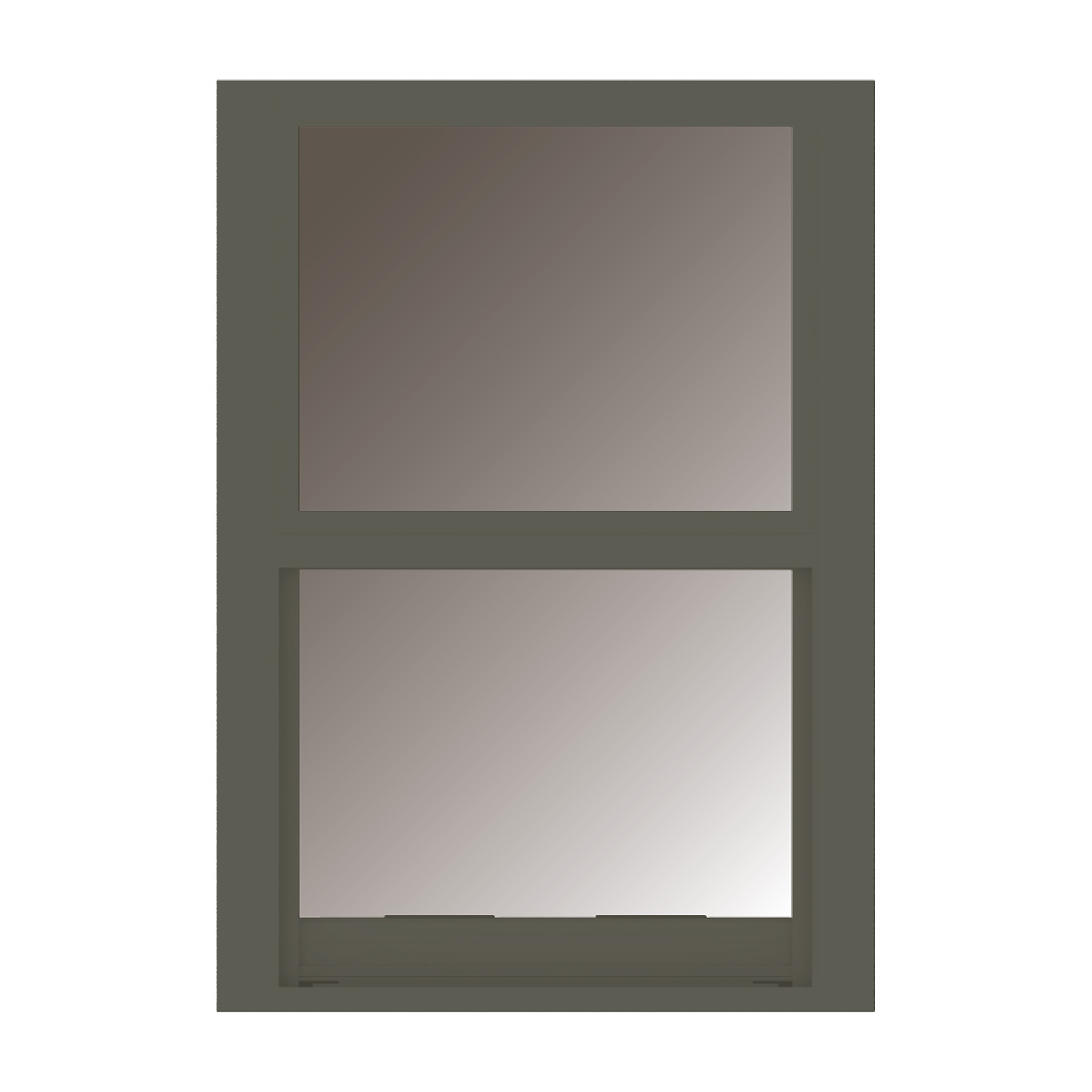

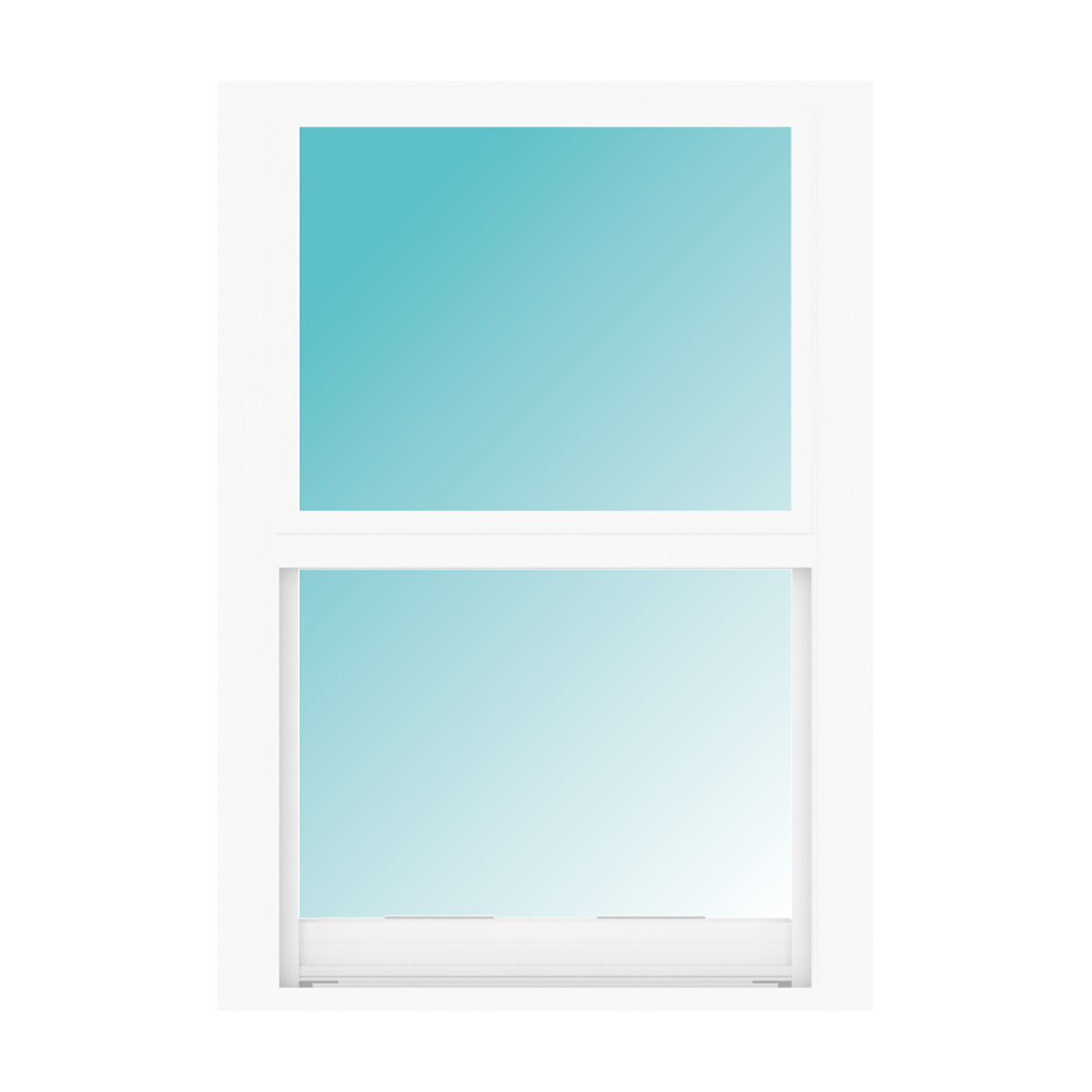

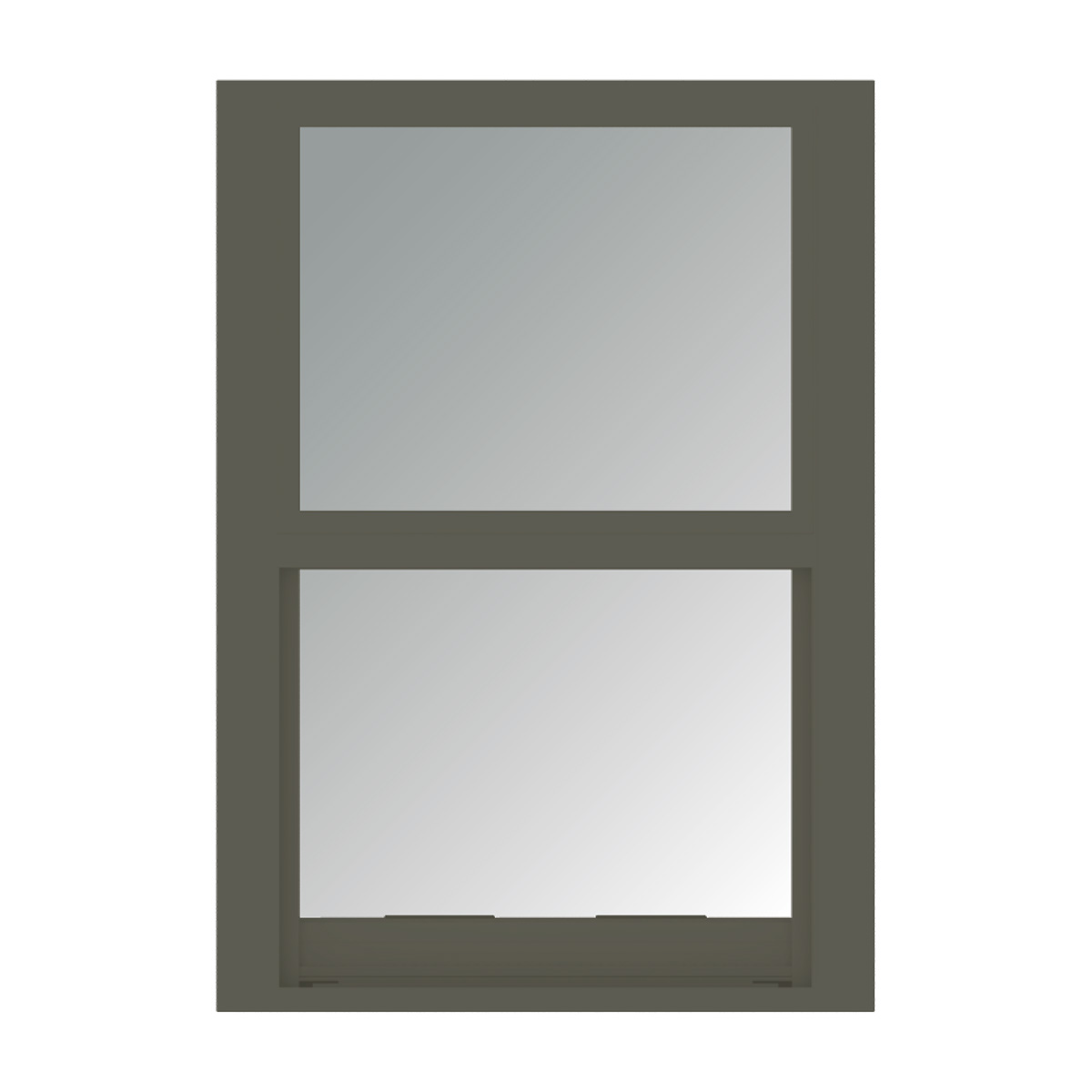

Low-E Solarban 70 available Screen option available Block and tackle and ultra-lift balance options White and bronze aluminum finishes Sweep lock and vent latch handles available Heavy duty meeting rail available

Related Documents

Datasheet Installation Guide Brochure
